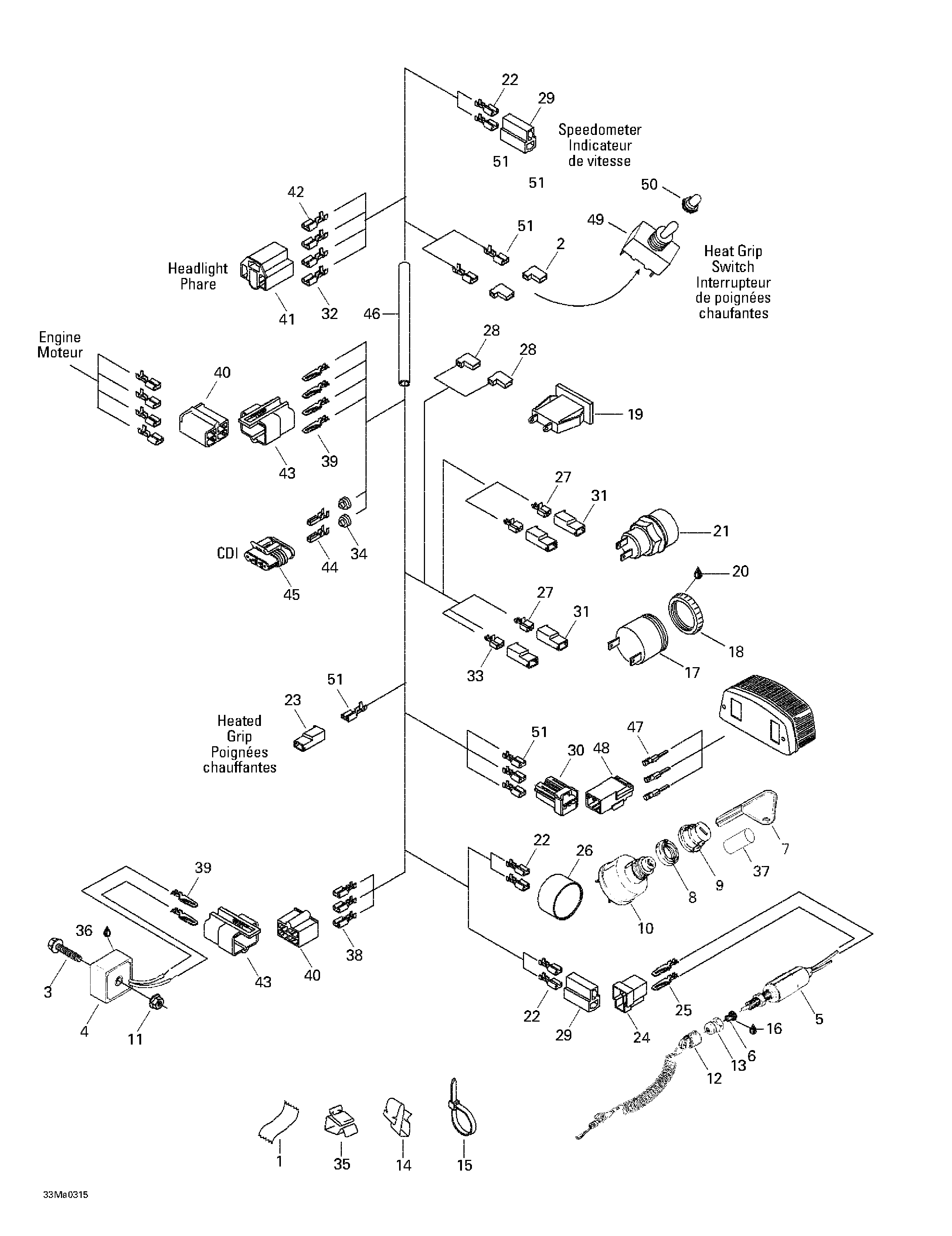

10- Electrical System для BRP Ski-Doo Tundra R - 2003
-
№АртикулНазвание
-
1293740005 Vinyl Tape 3/4''Vinyl Tape 3/4''
-
2409010300 Female TerminalFemale Terminal
-
3207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
4515163800 Voltage RegulatorVoltage Regulator
-
5515175571 Brake SwitchBrake Switch
-
6570151100 Plunger CapPlunger Cap
-
7414991700 Key BlankKey Blank
-
8570013700 BootBoot
-
9410112100 Face NutFace Nut
-
10410113601 Ignition SwitchIgnition Switch
-
11233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
12515151500 Switch CapSwitch Cap
-
13515145900 Switch NutSwitch Nut
-
14414095100 ClipClip
-
15414115200 Tie RapTie Rap
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17415060900 HornHorn
-
18414805101 Plastic NutPlastic Nut
-
19410113400 Pilot Lamp (Reverse)Pilot Lamp (Reverse)
-
20296000309 Sealant Silicone, Clear. 291647, 300 mlSealant Silicone, Clear. 291647, 300 ml
-
21415101200 Reverse KnobReverse Knob
-
22561503100 Female TerminalFemale Terminal
-
23409010400 Female HousingFemale Housing
-
24409204500 Male Connector HousingMale Connector Housing
-
25409210000 Male TerminalMale Terminal
-
26572150700 Ignition Block SwitchIgnition Block Switch
-
27409010100 Female TerminalFemale Terminal
-
28409010300 Female TerminalFemale Terminal
-
29409204600 Female HousingFemale Housing
-
30515175495 Female HousingFemale Housing
-
31409010400 Female HousingFemale Housing
-
32409011500 Female TerminalFemale Terminal
-
33409010600 Female TerminalFemale Terminal
-
34278001013 Wire SealWire Seal
-
35414227300 ClipClip
-
36413707500 Grease Tube LMZ, 400 gGrease Tube LMZ, 400 g
-
37415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
38515175253 Female TerminalFemale Terminal
-
39409206100 Male TerminalMale Terminal
-
40409204900 Female HousingFemale Housing
-
41409202700 Female HousingFemale Housing
-
42515175320 Female TerminalFemale Terminal
-
43409209300 Male HousingMale Housing
-
44278001014 Female TerminalFemale Terminal
-
45409209700 Female HousingFemale Housing
-
46409901700 TubingTubing
-
515175442 TubingTubing
-
47515175232 Male TerminalMale Terminal
-
48515175494 Male Terminal HousingMale Terminal Housing
-
49410107300 Switch (Heating Grip)Switch (Heating Grip)
-
50515175281 Switch CoverSwitch Cover
-
51515175231 Female TerminalFemale Terminal
