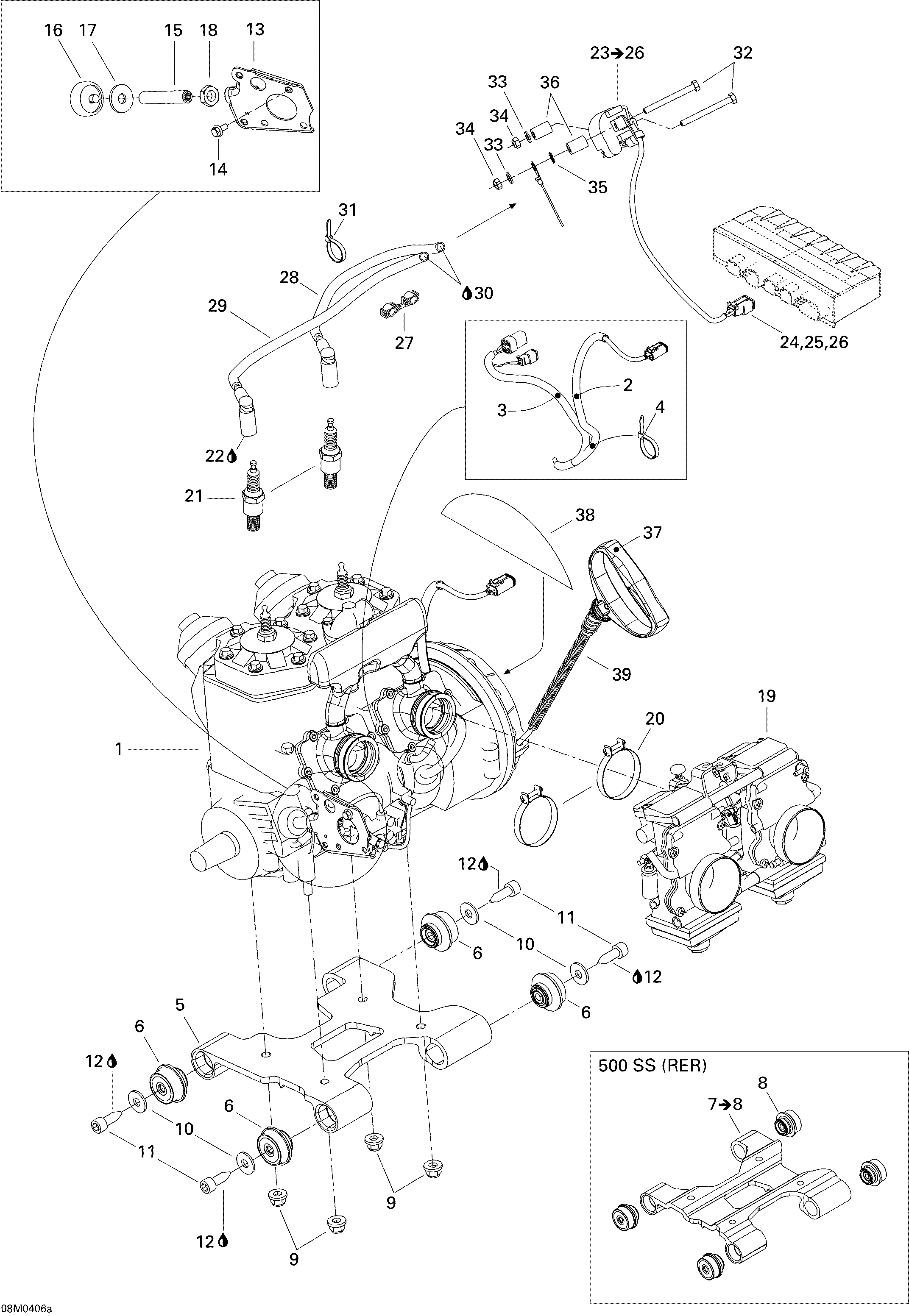

01- Engine Assembly And Support для BRP Ski-Doo GSX 600 HO - 2004
-
№АртикулНазвание
-
1400509748 Engine 593 Ho (Rer). 600 HO (RER)Engine 593 Ho (Rer). 600 HO (RER)
-
400509750 Engine 593 (Rer). 500 SS (RER)Engine 593 (Rer). 500 SS (RER)
-
400702622 Engine 793 Ho (Rer). 800 HO (RER)Engine 793 Ho (Rer). 800 HO (RER)
-
2409901800 TubingTubing
-
3415079900 TubingTubing
-
4293750002 Tie Rap 130 mmTie Rap 130 mm
-
5512059754 Engine Support. GSX 600 HO / GSX 800 HOEngine Support. GSX 600 HO / GSX 800 HO
-
6512059691 Rubber Mount. GSX 600 HO / GSX 800 HORubber Mount. GSX 600 HO / GSX 800 HO
-
7512059841 Engine Support. INCLUDES ITEMS 7 TO 8 / GSX 500 SSEngine Support. INCLUDES ITEMS 7 TO 8 / GSX 500 SS
-
8512059691 Rubber Mount. GSX 500 SSRubber Mount. GSX 500 SS
-
9233201414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
10506151251 WasherWasher
-
11250000094 Screw M10 X 30Screw M10 X 30
-
12413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
13512059840 PlatePlate
-
14207561244 Hex Flanged Screw M6 X 12 (Scotch Grip)Hex Flanged Screw M6 X 12 (Scotch Grip)
-
15250500007 Stopper ScrewStopper Screw
-
16512059610 StopperStopper
-
17512059057 WasherWasher
-
18232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
19403138740 Carburetor Kit Tm40-B238. GSX 600 HOCarburetor Kit Tm40-B238. GSX 600 HO
-
403138760 Carburetor Kit Tm40-B289. GSX 500 SSCarburetor Kit Tm40-B289. GSX 500 SS
-
403138761 Carburetor Kit Tm40-B292. GSX 800 HOCarburetor Kit Tm40-B292. GSX 800 HO
-
20512059835 Gemi ClampGemi Clamp
-
21512059552 Spark Plug NGK BR9ECS 0.5mmSpark Plug NGK BR9ECS 0.5mm
-
22293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
23512059564 Ignition CoilIgnition Coil
-
24515175670 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
25515175707 Female Lock (2 Circuits)Female Lock (2 Circuits)
-
26278000632 Female TerminalFemale Terminal
-
27410914600 Plastic Clip (Spark Plug Wire)Plastic Clip (Spark Plug Wire)
-
28512059695 Cable Ass'Y (300 mm)Cable Ass'Y (300 mm)
-
29512059696 Cable Ass'Y (375 mm)Cable Ass'Y (375 mm)
-
30293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
31414115200 Tie RapTie Rap
-
32207066044 Hex Screw M6 X 60Hex Screw M6 X 60
-
33234061410 Flat WasherFlat Washer
-
34232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
35394001900 Lock Washer (Exterior Tooth)Lock Washer (Exterior Tooth)
-
36517203200 SpacerSpacer
-
37572084400 Starter GripStarter Grip
-
38512059893 Reflective Sheet. GSX 800 HOReflective Sheet. GSX 800 HO
-
39512059535 Rope GuideRope Guide
