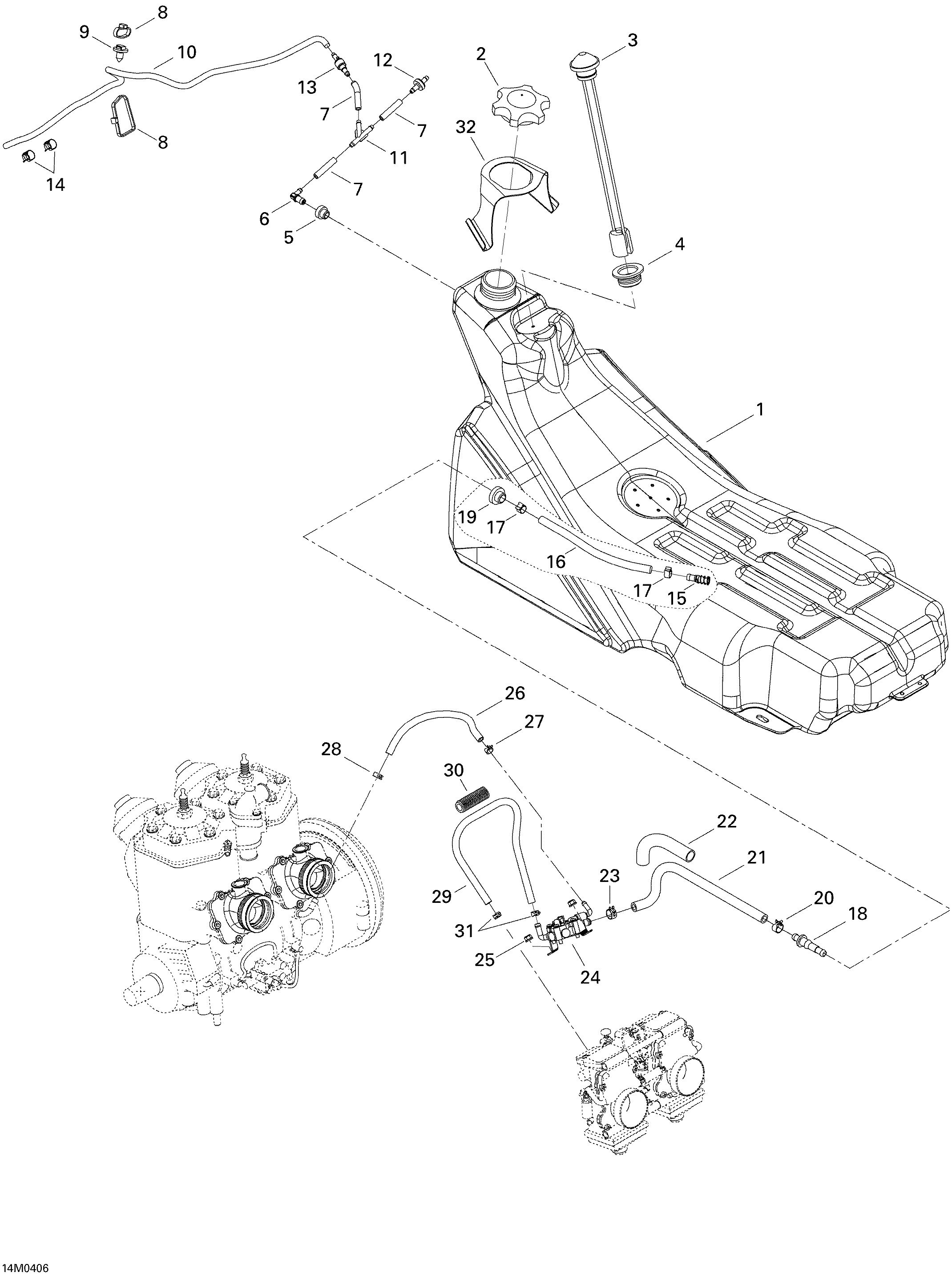

02- Fuel System для BRP Ski-Doo GSX 600 HO - 2004
-
№АртикулНазвание
-
1513033077 Fuel Tank. GSX 800 HOFuel Tank. GSX 800 HO
-
513033080 Fuel Tank. GSX 500 SS / GSX 600 HOFuel Tank. GSX 500 SS / GSX 600 HO
-
2513033024 Fuel Tank Cap. GSX 800 HOFuel Tank Cap. GSX 800 HO
-
513033025 Fuel Tank Cap. GSX 500 SS / GSX 600 HOFuel Tank Cap. GSX 500 SS / GSX 600 HO
-
3513033092 Fuel Gauge. GSX 500 SS / GSX 600 HOFuel Gauge. GSX 500 SS / GSX 600 HO
-
4293720058 Grommet. GSX 500 SS / GSX 600 HOGrommet. GSX 500 SS / GSX 600 HO
-
5513032908 GrommetGrommet
-
6414580700 Elbow Male ConnectorElbow Male Connector
-
7415080200 LineLine
-
8414115200 Tie Rap 180 mmTie Rap 180 mm
-
9293730018 Dart MountDart Mount
-
10415080200 LineLine
-
11293710059 Y-FittingY-Fitting
-
12275500398 Check ValveCheck Valve
-
13275500505 Check ValveCheck Valve
-
14414554800 Spring ClampSpring Clamp
-
15414872100 Fuel FilterFuel Filter
-
16513033070 HoseHose
-
17513033010 Norma Spring ClampNorma Spring Clamp
-
18414872700 Male ConnectorMale Connector
-
19570273900 GrommetGrommet
-
20513032979 Spring ClampSpring Clamp
-
21513033027 HoseHose
-
22415080000 Tubing (16 mm)Tubing (16 mm)
-
23513032979 Spring ClampSpring Clamp
-
24403901812 Fuel PumpFuel Pump
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26513033035 HoseHose
-
27414415200 Spring ClampSpring Clamp
-
28513033029 Spring ClampSpring Clamp
-
29415117800 TubeTube
-
30415079900 Tubing (10 mm)Tubing (10 mm)
-
31414420700 Spring ClampSpring Clamp
-
32513033066 SupportSupport
