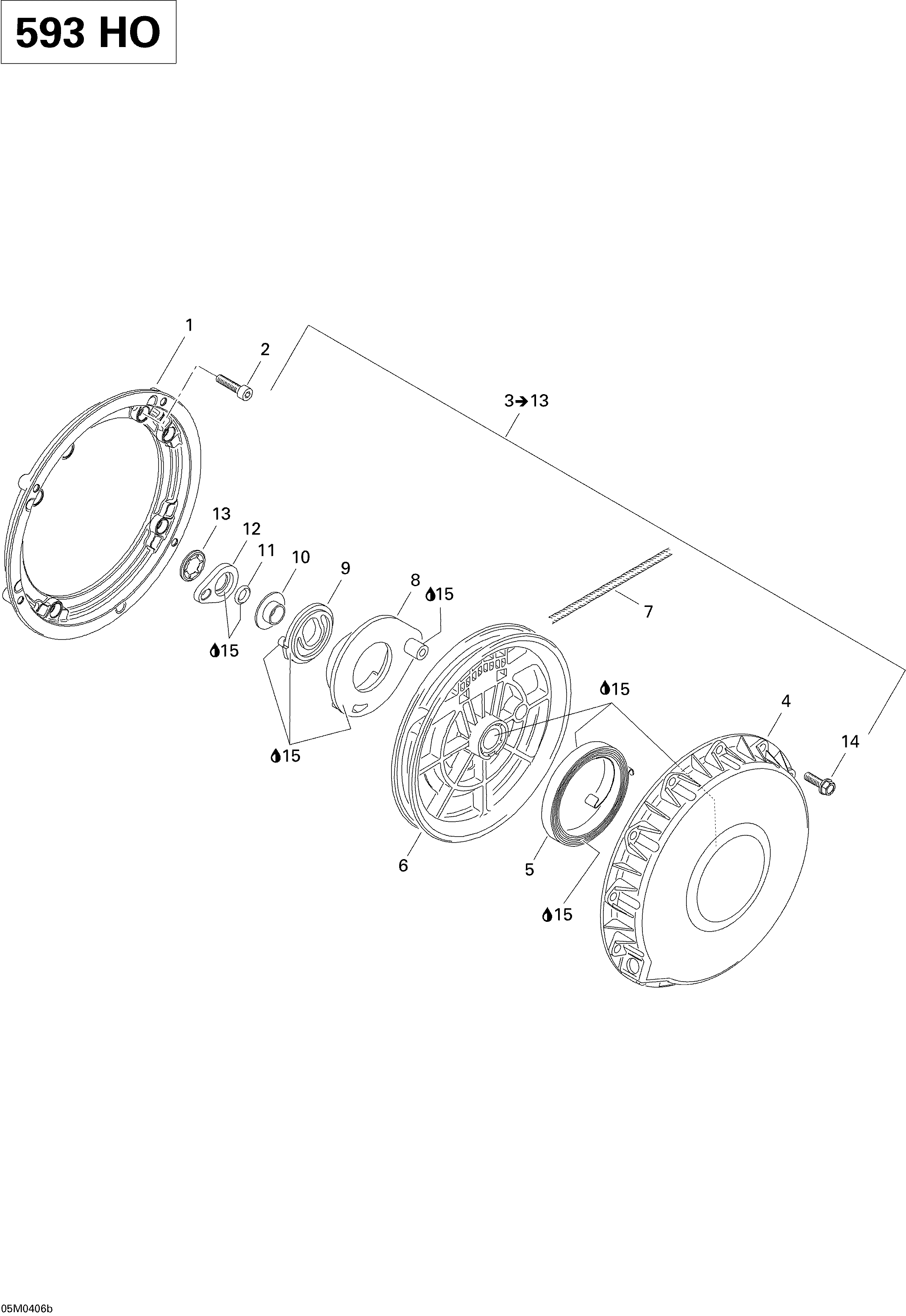

04- Rewind Starter (593 HO) для BRP Ski-Doo GSX 600 HO - 2004
-
№АртикулНазвание
-
1420810865 Connecting FlangeConnecting Flange
-
1420810865 Connecting FlangeConnecting Flange
-
1420810865 Connecting FlangeConnecting Flange
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
2420241236 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
3420889765 Rewind Starter. INCLUDES ITEMS 3 TO 13Rewind Starter. INCLUDES ITEMS 3 TO 13
-
3420889765 Rewind Starter. INCLUDES ITEMS 3 TO 13Rewind Starter. INCLUDES ITEMS 3 TO 13
-
3420889765 Rewind Starter. INCLUDES ITEMS 3 TO 13Rewind Starter. INCLUDES ITEMS 3 TO 13
-
4420811403 Starter HousingStarter Housing
-
4420811403 Starter HousingStarter Housing
-
4420811403 Starter HousingStarter Housing
-
5420939115 Rewind SpringRewind Spring
-
5420939115 Rewind SpringRewind Spring
-
5420939115 Rewind SpringRewind Spring
-
6420852288 Rope SheaveRope Sheave
-
6420852288 Rope SheaveRope Sheave
-
6420852288 Rope SheaveRope Sheave
-
7412500200 Starter RopeStarter Rope
-
7412500200 Starter RopeStarter Rope
-
7412500200 Starter RopeStarter Rope
-
8420852297 PawlPawl
-
8420852297 PawlPawl
-
8420852297 PawlPawl
-
9420852307 Pawl LockPawl Lock
-
9420852307 Pawl LockPawl Lock
-
9420852307 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
10420847925 Stage SleeveStage Sleeve
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
11420250400 O-RingO-Ring
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
12420852520 Lock RingLock Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
13420845560 Locking ElementLocking Element
-
13420845560 Locking ElementLocking Element
-
14420941256 Hex Collar Screw M6 X 30Hex Collar Screw M6 X 30
-
14420941256 Hex Collar Screw M6 X 30Hex Collar Screw M6 X 30
-
14420941256 Hex Collar Screw M6 X 30Hex Collar Screw M6 X 30
-
15420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
-
15420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
-
15420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
