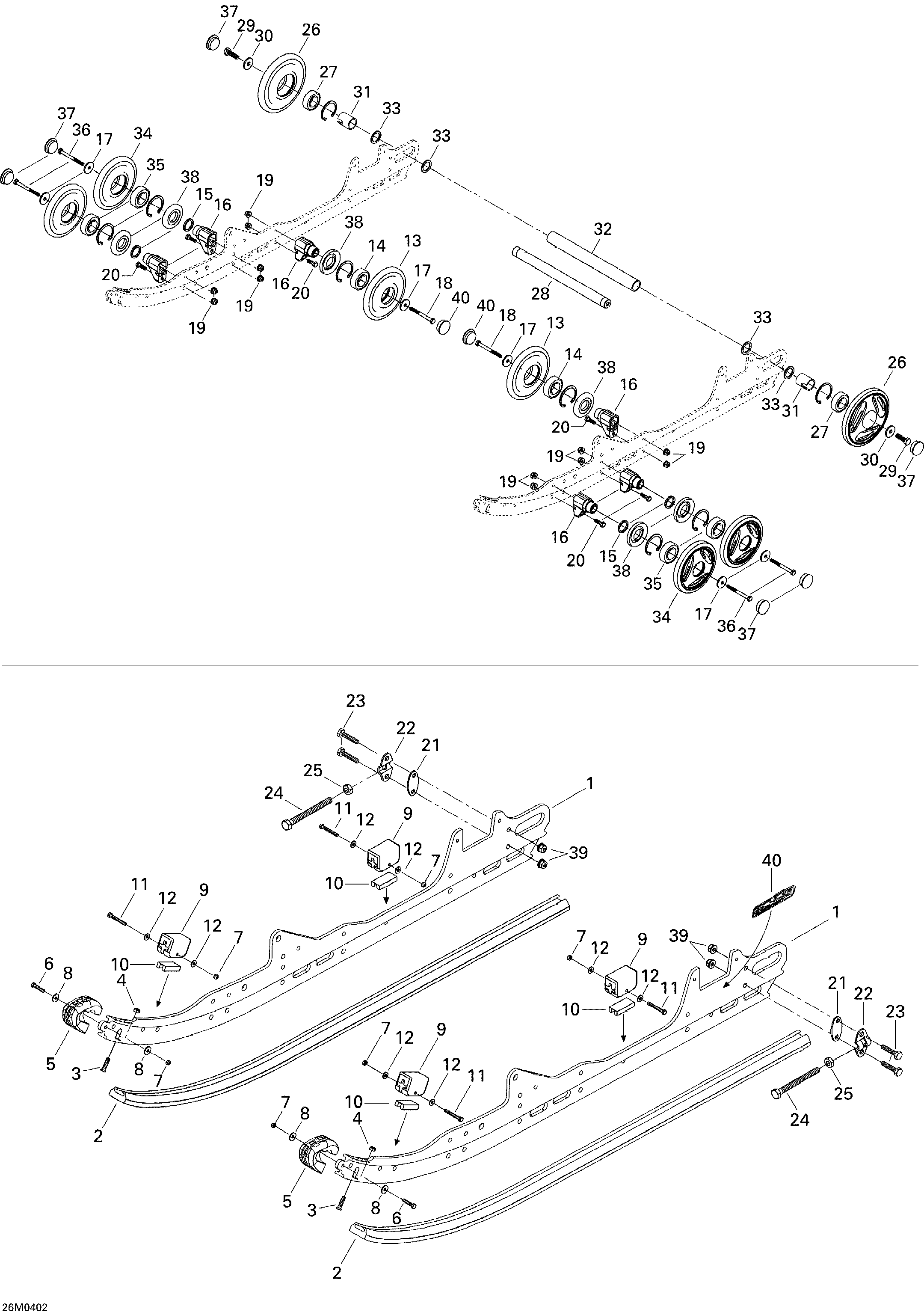

08- Rear Suspension (Legend) для BRP Ski-Doo Legend 380F - 2004
-
№АртикулНазвание
-
1503189830 RunnerRunner
-
1503190115 Runner. GTRunner. GT
-
2503189643 ShoeShoe
-
2503189639 Shoe (black). GTShoe (black). GT
-
3208562560 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 ProtectorProtector
-
6207152544 Hex screw M5 x 25Hex screw M5 x 25
-
7232551414 Elastic stop nut M5Elastic stop nut M5
-
8391301600 Flat washerFlat washer
-
9570063000 Rubber stopperRubber stopper
-
10572084800 Stopper reinforcementStopper reinforcement
-
11207054044 Hex screw M5 x 40Hex screw M5 x 40
-
12391301700 Flat washerFlat washer
-
13503190213 Wheel 135 ass'y. GTWheel 135 ass'y. GT
-
13503190216 Wheel 135 ass'y. Includes Items 13 to 14Wheel 135 ass'y. Includes Items 13 to 14
-
14503189567 Ball bearing 6205Ball bearing 6205
-
15503173700 WasherWasher
-
16503190389 SupportSupport
-
17503183100 WasherWasher
-
18207088044 Hex screw M8 x 80Hex screw M8 x 80
-
19233281414 Elastic flanged stop nut M8Elastic flanged stop nut M8
-
20207182544 Hex screw M8 x 25Hex screw M8 x 25
-
21503189160 Tensioner spacerTensioner spacer
-
22503155300 TensionerTensioner
-
23207063044 Hex screw M6 x 30Hex screw M6 x 30
-
24230100044 Hex screw M10 x 100Hex screw M10 x 100
-
25233601416 Elastic stop nut M10Elastic stop nut M10
-
26503189578 Wheel 165 ass'y. Includes Items 26 to 27Wheel 165 ass'y. Includes Items 26 to 27
-
27503189567 Ball bearing 6205Ball bearing 6205
-
28503162400 Rear axleRear axle
-
29250000019 Hex screwHex screw
-
30503183300 WasherWasher
-
31503189809 Outer spacerOuter spacer
-
32503188941 Central spacerCentral spacer
-
33503180400 WasherWasher
-
34503190214 Wheel 135 ass'y. Includes Items 34 to 35Wheel 135 ass'y. Includes Items 34 to 35
-
34503190211 Wheel 139 ass'y. GT, Includes Items 35 to 35Wheel 139 ass'y. GT, Includes Items 35 to 35
-
35503189567 Ball bearing 6205Ball bearing 6205
-
36207088544 Hex screw M8 x 85Hex screw M8 x 85
-
37570063600 Wheel capWheel cap
-
38572089000 Labyrinth sealLabyrinth seal
-
39233261414 Elastic flanged stop nut M6Elastic flanged stop nut M6
-
40516001248 Suspension decalSuspension decal
