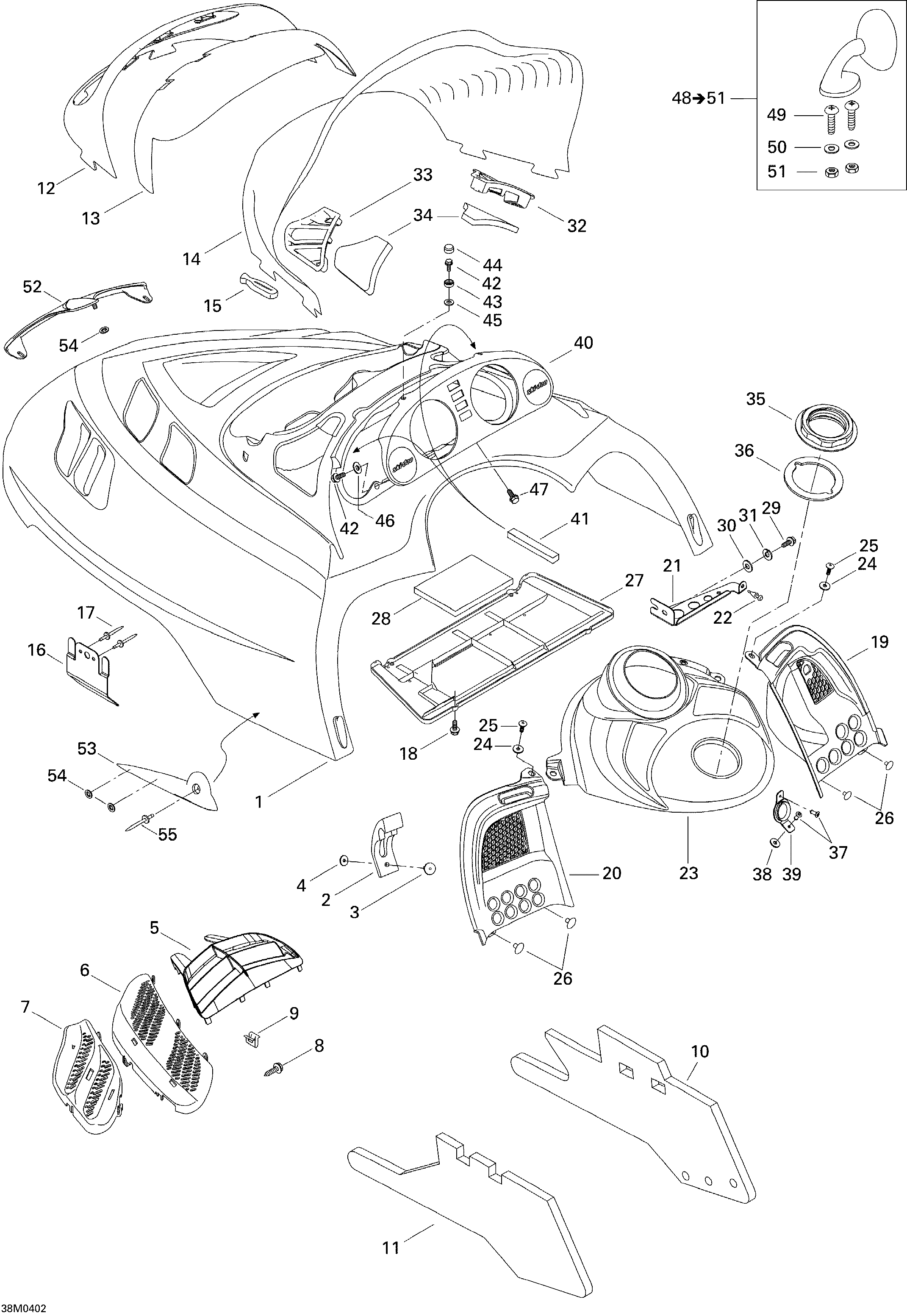

09- Cab, Console (Legend) для BRP Ski-Doo Legend 380F - 2004
-
№АртикулНазвание
-
1517302846 Hood (Black (B-160))Hood (Black (B-160))
-
2570027100 Hood LatchHood Latch
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4517124300 WasherWasher
-
5517302676 Center Grill (Black)Center Grill (Black)
-
6517302567 R.H. Intermediate Grill (Black)R.H. Intermediate Grill (Black)
-
6517302568 L.H. Intermediate Grill (Black)L.H. Intermediate Grill (Black)
-
7517302569 R.H. Side GrillR.H. Side Grill
-
7517302570 L.H. Side GrillL.H. Side Grill
-
8732601210 Hex. Tapping ScrewHex. Tapping Screw
-
9517302785 ClipClip
-
10517302669 R.H. Side FoamR.H. Side Foam
-
11517303132 L.H. Side FoamL.H. Side Foam
-
12517302158 Headlamp MouldingHeadlamp Moulding
-
13517302003 Windshield SupportWindshield Support
-
14517302356 High WindshieldHigh Windshield
-
14517302560 High Windshield. GTHigh Windshield. GT
-
15570023800 Windshield LatchWindshield Latch
-
16517302615 Hood GuideHood Guide
-
17390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
18243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
19517302561 R.H. ConsoleR.H. Console
-
20517302006 L.H. ConsoleL.H. Console
-
21517302621 R.H. Console SupportR.H. Console Support
-
22517302624 Rubber StopperRubber Stopper
-
23517302564 Center Console (Black (B-160))Center Console (Black (B-160))
-
24391301600 WasherWasher
-
25732600030 ScrewScrew
-
26293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
27517302836 Air Intake PlateAir Intake Plate
-
28517302425 Secondary FoamSecondary Foam
-
29210261280 Hex. Forming Screw M6 x 12Hex. Forming Screw M6 x 12
-
30234061410 Flat Washer 6 mmFlat Washer 6 mm
-
31234161471 Lock Washer 6 mmLock Washer 6 mm
-
32517302024 R.H. Air Intake GrillR.H. Air Intake Grill
-
33517302025 L.H. Air Intake GrillL.H. Air Intake Grill
-
34517302151 Air Intake FoamAir Intake Foam
-
35517302043 Console NutConsole Nut
-
36293250029 GasketGasket
-
37390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
38517302286 Rubber StopperRubber Stopper
-
39517302129 Rope GuideRope Guide
-
40517302760 Indicator SupportIndicator Support
-
41517302420 FoamFoam
-
42241140060 Hex. Flanged Screw K40 x 10Hex. Flanged Screw K40 x 10
-
43414436800 Retainer CapRetainer Cap
-
44414436900 Snap Cap (Black)Snap Cap (Black)
-
45234042600 Flat Washer 4 mmFlat Washer 4 mm
-
46517124300 WasherWasher
-
47732601210 Hex. Tapping ScrewHex. Tapping Screw
-
48414971910 R.H. Mirror. Includes Items 48 to 51R.H. Mirror. Includes Items 48 to 51
-
48414972010 L.H. Mirror. Includes Items 48 to 51L.H. Mirror. Includes Items 48 to 51
-
49208041641 Screw M4 x 16Screw M4 x 16
-
50517124300 WasherWasher
-
51232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
52517302780 Front Hood MouldingFront Hood Moulding
-
53517302781 Hood Moulding R.H.Hood Moulding R.H.
-
53517302782 Hood Moulding L.H.Hood Moulding L.H.
-
54732610072 Push NutPush Nut
-
55293150092 RivetRivet
