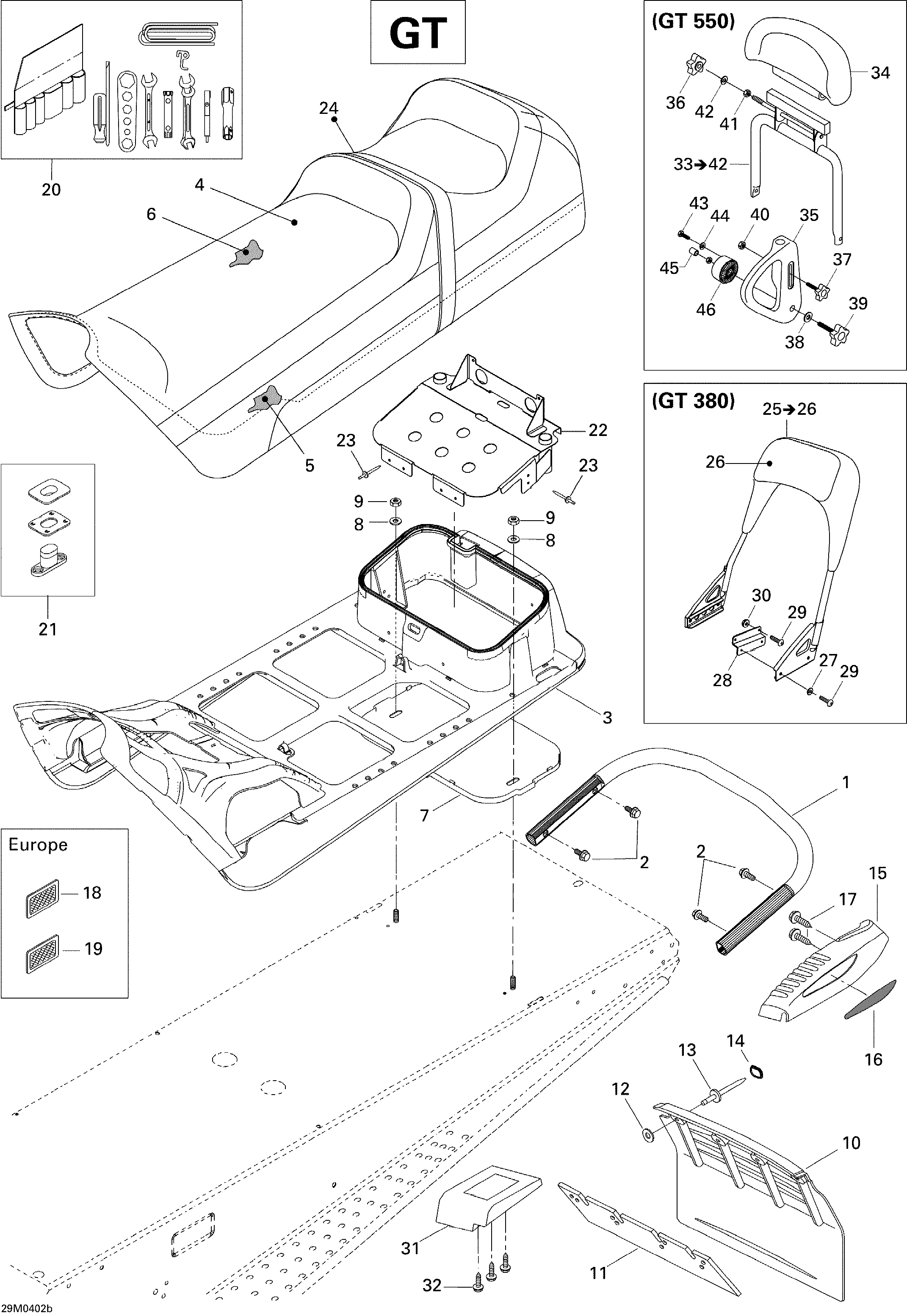

09- Seat (380F GT) для BRP Ski-Doo Legend 380F - 2004
-
№АртикулНазвание
-
1517243800 Rear BumperRear Bumper
-
2207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
3510003980 Seat BaseSeat Base
-
4510004070 Seat CoverSeat Cover
-
5510003944 Seat FoamSeat Foam
-
6510004256 Seat FoamSeat Foam
-
7572107601 Under ChestUnder Chest
-
8234082410 Flat Washer 8 mmFlat Washer 8 mm
-
9232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
10520000228 Snow Guard (Full Moon)Snow Guard (Full Moon)
-
11572108200 ReinforcementReinforcement
-
12517225900 Flat WasherFlat Washer
-
13293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
14415073300 CapCap
-
15861780300 R.H. MouldingR.H. Moulding
-
15861780400 L.H. MouldingL.H. Moulding
-
16516000237 R.H. Reflector (Red)R.H. Reflector (Red)
-
16516000241 R.H. Rear Reflector (Yellow). EuropeR.H. Rear Reflector (Yellow). Europe
-
16516000238 LH Reflector (Red)LH Reflector (Red)
-
16516000242 L.H. Rear Reflector (Yellow). EuropeL.H. Rear Reflector (Yellow). Europe
-
17243141640 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
18520000271 Amber Reflector. EuropeAmber Reflector. Europe
-
19529035881 Tool KitTool Kit
-
20415037900 White Reflector. EuropeWhite Reflector. Europe
-
21414728000 Seat BuckleSeat Buckle
-
22510003976 Seat SupportSeat Support
-
24510004038 Seat BeltSeat Belt
-
25510004068 Seat Back Rest. GT 380F, Includes Items 25 to 26Seat Back Rest. GT 380F, Includes Items 25 to 26
-
26510004071 Cover. GT 380FCover. GT 380F
-
27234181601 Lock Washer. GT 380FLock Washer. GT 380F
-
28510003609 Z Plate. GT 380FZ Plate. GT 380F
-
29236282084 Socket Head Screw Torx M8 x 20. GT 380FSocket Head Screw Torx M8 x 20. GT 380F
-
30233281414 Elastic Flange Nut M8. GT 380FElastic Flange Nut M8. GT 380F
-
31572088700 Footrest RHFootrest RH
-
31572088800 Footrest LHFootrest LH
-
32243141640 Hex. Plastite Screw M5 x 16Hex. Plastite Screw M5 x 16
