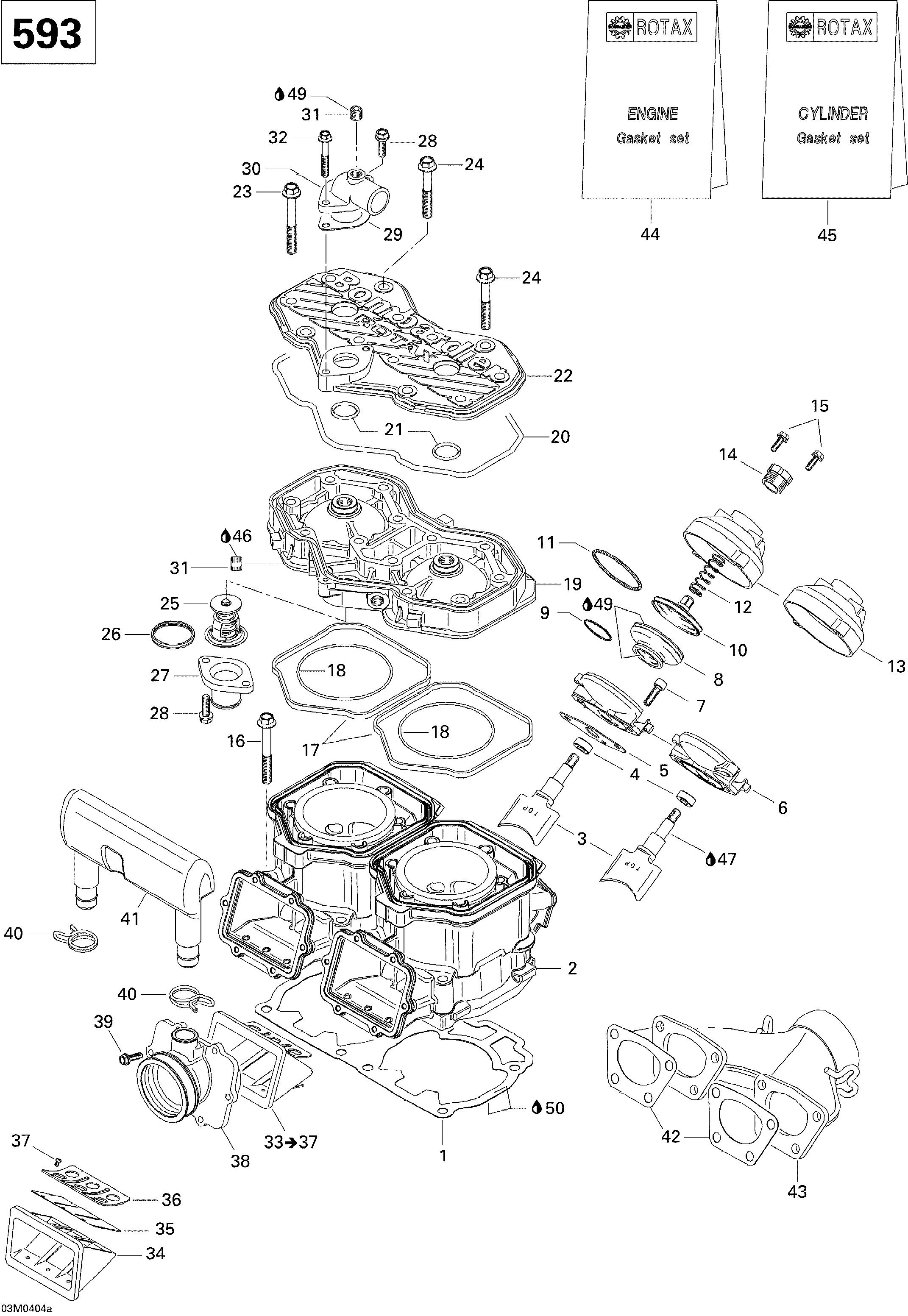

01- Cylinder, Exhaust Manifold, Reed Valve (593) для BRP Ski-Doo Legend 500 SS - 2004
-
№АртикулНазвание
-
1420931581 Double Gasket 0.4 mmDouble Gasket 0.4 mm
-
420931583 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
420931582 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
420931962 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
420931584 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613625 Cylinder With SleeveCylinder With Sleeve
-
3420854370 Exhaust ValveExhaust Valve
-
4420950730 Oil SealOil Seal
-
5420250239 GasketGasket
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8420260723 Exhaust BellowsExhaust Bellows
-
9420838253 Spring ClampSpring Clamp
-
10420854449 Exhaust ValveExhaust Valve
-
11420239048 HOSE SPRINGHOSE SPRING
-
12420239944 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Tapping Screw M5 X 20Tapping Screw M5 X 20
-
16420640951 Hex Screw M8 X 68.5Hex Screw M8 X 68.5
-
17420931590 Rubber RingRubber Ring
-
18293300026 O-RingO-Ring
-
19420923454 Cylinder Head (Silver)Cylinder Head (Silver)
-
20420950320 O-RingO-Ring
-
21420430782 O-RingO-Ring
-
22420923460 Cylinder Head Cover (Silver)Cylinder Head Cover (Silver)
-
23420841306 Hex Collar Screw M8 X 65Hex Collar Screw M8 X 65
-
24420941621 Hex Collar Screw M8 X 56.5Hex Collar Screw M8 X 56.5
-
25420922518 ThermostateThermostate
-
26420931272 Sealing RingSealing Ring
-
27420922025 Bent Outlet SocketBent Outlet Socket
-
28420941250 Screw M6 X 20Screw M6 X 20
-
29420850338 GasketGasket
-
30420922062 Bent Outlet SocketBent Outlet Socket
-
31420240480 Plug Screw 1/8-27 NptPlug Screw 1/8-27 Npt
-
32420941451 Hex Collar Screw M6 X 40Hex Collar Screw M6 X 40
-
33420924519 Reed Valve Ass'Y. INCLUDES ITEMS 33 TO 37Reed Valve Ass'Y. INCLUDES ITEMS 33 TO 37
-
35420924532 Reed PedalReed Pedal
-
36420924539 Reed Pedal StopReed Pedal Stop
-
37420941215 Screw M3 X 5Screw M3 X 5
-
38420867882 Carburetor SocketCarburetor Socket
-
39420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
40420851440 ClampClamp
-
41420867817 Intake ResonatorIntake Resonator
-
42420931610 GasketGasket
-
43420979543 Exhaust ManifoldExhaust Manifold
-
44420888584 Engine Gasket SetEngine Gasket Set
-
45420888588 Cylinder Gasket SetCylinder Gasket Set
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47711297433 Molykote G-N Paste, Dow Corning, 50 GMolykote G-N Paste, Dow Corning, 50 G
-
48413707000 Molykote 111Molykote 111
-
49420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
50293800038 Loctite 518, 50 mlLoctite 518, 50 ml
