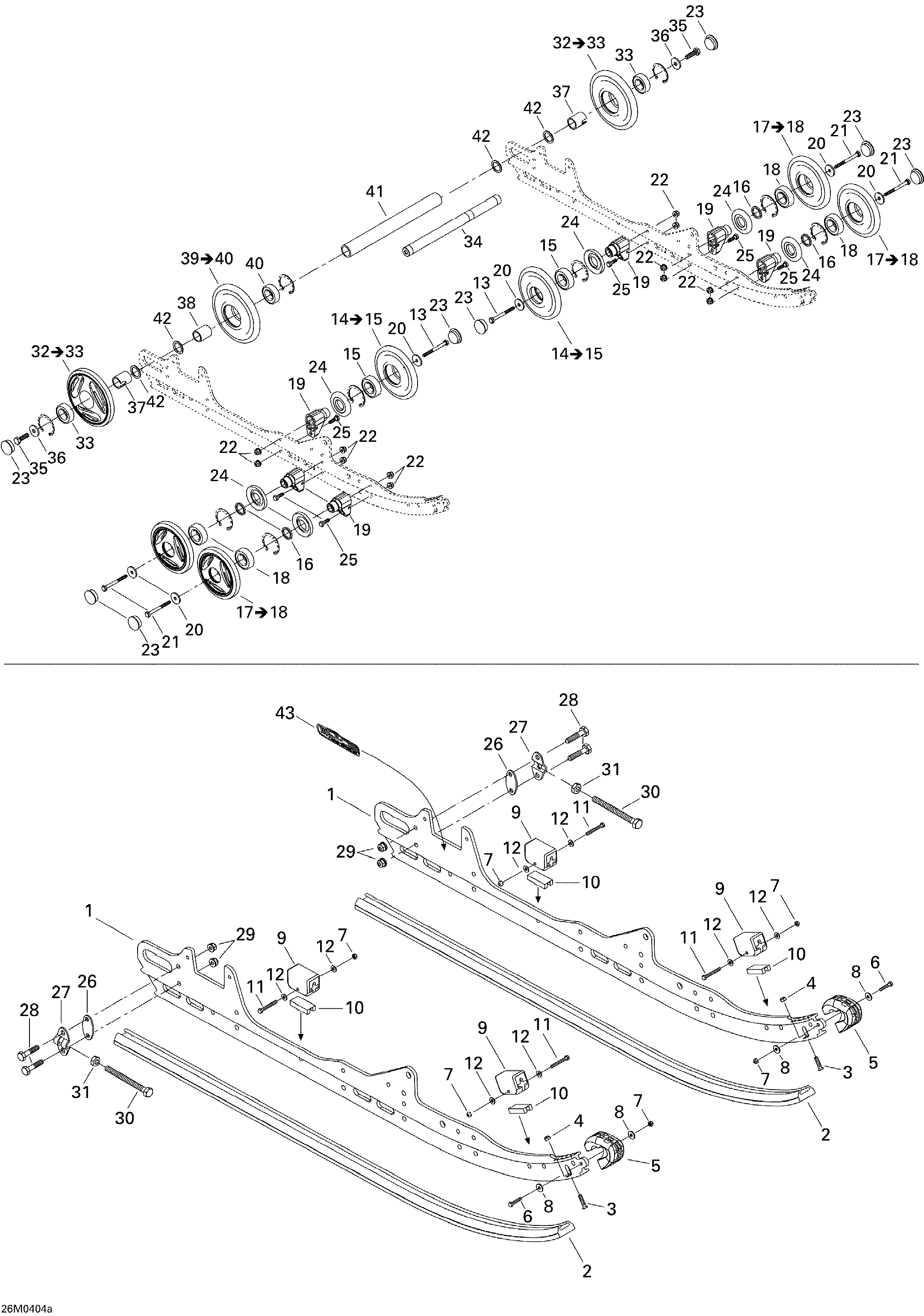

08- Rear Suspension для BRP Ski-Doo Legend 500 SS - 2004
-
№АртикулНазвание
-
1503189830 RunnerRunner
-
2503189643 Runner ShoeRunner Shoe
-
3208562560 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5572075400 Runner ProtectorRunner Protector
-
6207152544 Hex Screw M5 X 25Hex Screw M5 X 25
-
7232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
8391301600 WasherWasher
-
9570063000 Rubber StopperRubber Stopper
-
10572084800 Stopper ReinforcementStopper Reinforcement
-
11207054044 Hex Screw M5 X 40Hex Screw M5 X 40
-
12391301700 Flat WasherFlat Washer
-
13207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
14503190216 Wheel 135 Ass'Y. INCLUDES 14 TO 15Wheel 135 Ass'Y. INCLUDES 14 TO 15
-
15503189567 Ball Bearing 6205Ball Bearing 6205
-
16503173700 WasherWasher
-
17503190214 Wheel 135. INCLUDES 17 TO 18Wheel 135. INCLUDES 17 TO 18
-
18503189567 Ball Bearing 6205Ball Bearing 6205
-
19503190389 SupportSupport
-
20503183100 WasherWasher
-
21207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
22233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
23570063600 Wheel CapWheel Cap
-
24572089000 Labyrinth SealLabyrinth Seal
-
25207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
26503189160 Tensioner SpacerTensioner Spacer
-
27503155300 TensionerTensioner
-
28207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
29233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
30230100044 Hex Screw M10 X 100Hex Screw M10 X 100
-
31233601416 Locking Elastic Nut M10Locking Elastic Nut M10
-
32503189578 Wheel 165. INCLUDES 32 TO 33Wheel 165. INCLUDES 32 TO 33
-
33503189567 Ball Bearing 6205Ball Bearing 6205
-
34503160700 Rear AxleRear Axle
-
35250000019 Hex Screw With NylonHex Screw With Nylon
-
36503183300 WasherWasher
-
37503189809 Outer SpacerOuter Spacer
-
38503182900 Inner Spacer (Short)Inner Spacer (Short)
-
39503189568 Wheel 165 Ass'Y. INCLUDES 39 TO 40Wheel 165 Ass'Y. INCLUDES 39 TO 40
-
40503189567 Ball Bearing 6205Ball Bearing 6205
-
41503183000 Long SpacerLong Spacer
-
42503180400 WasherWasher
-
43516001248 Suspension DecalSuspension Decal
