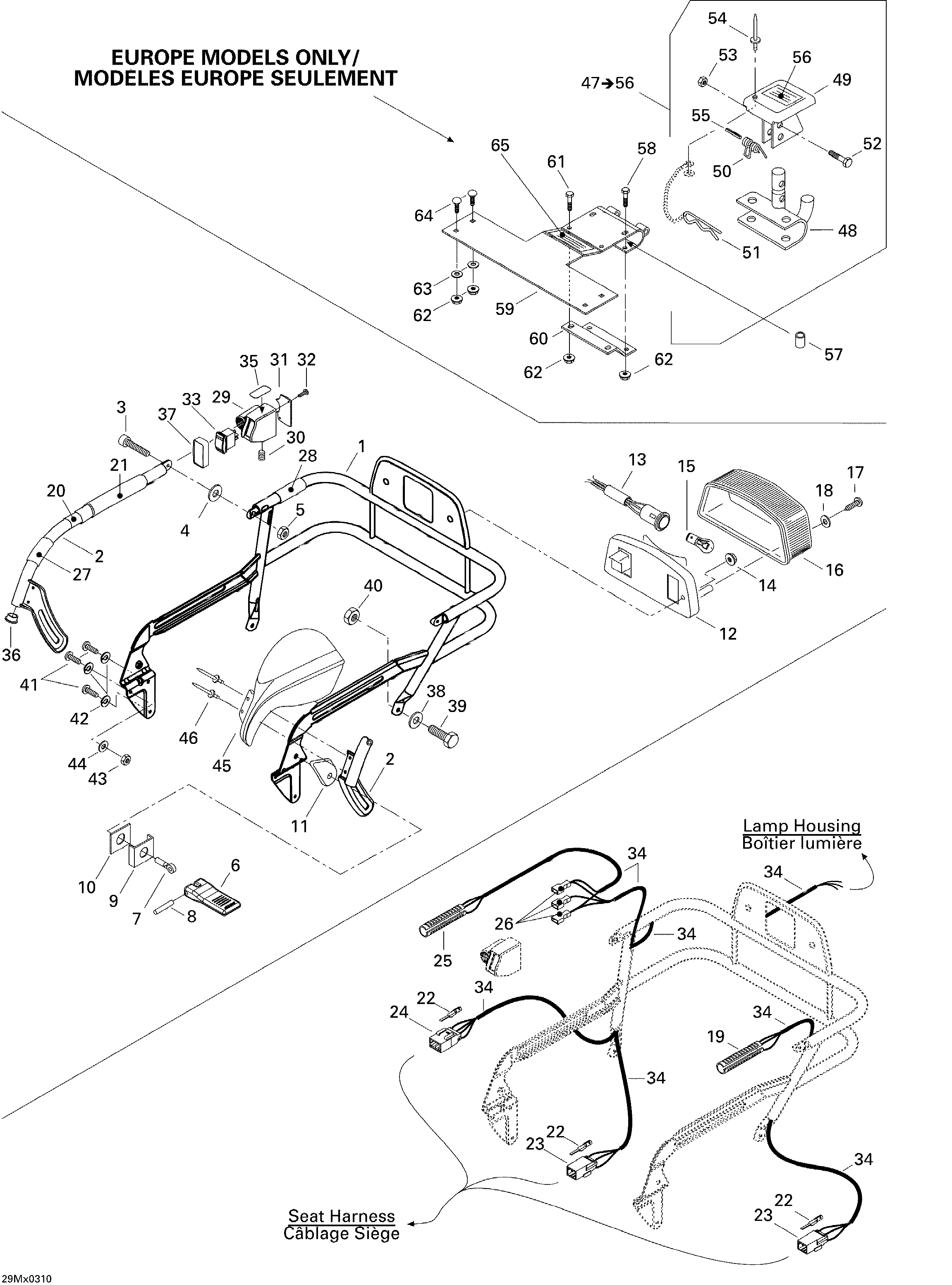

09- Luggage Rack для BRP Ski-Doo Legend 500 SS - 2004
-
№АртикулНазвание
-
1511000124 Rack Ass'YRack Ass'Y
-
2511000012 RH Arm (Rack)RH Arm (Rack)
-
517300900 LH Arm (Rack)LH Arm (Rack)
-
3205061644 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
4234062100 Flat Washer 6 mmFlat Washer 6 mm
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6572038200 Lock LeverLock Lever
-
7517250100 Eye BoltEye Bolt
-
8414821400 PinPin
-
9511000226 GuideGuide
-
10570063800 Outer SpacerOuter Spacer
-
11572088900 Spacer BlockSpacer Block
-
12515175397 Lamp HousingLamp Housing
-
13511000224 SocketSocket
-
14233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
15410504100 Tail Lamp BulbTail Lamp Bulb
-
16414513700 LensLens
-
17209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
18414516400 WasherWasher
-
19515176085 HeaterHeater
-
20414988700 Reflective SheetReflective Sheet
-
21415050200 LH Grip (370 mm)LH Grip (370 mm)
-
22515175232 Male TerminalMale Terminal
-
23515175494 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
24515175846 Male Terminal Housing (4 Circuits)Male Terminal Housing (4 Circuits)
-
25515176085 HeaterHeater
-
26409010800 Female TerminalFemale Terminal
-
27415050300 RH Grip (250 mm)RH Grip (250 mm)
-
28415050400 Grip (Short) (60 mm)Grip (Short) (60 mm)
-
29572089200 Switch HousingSwitch Housing
-
30206580890 Screw Set M8 X 8Screw Set M8 X 8
-
31572089300 PlatePlate
-
32250000022 Phillips ScrewPhillips Screw
-
33511000001 Rocker SwitchRocker Switch
-
34515175332 TubingTubing
-
35418001800 Heat Grip DecalHeat Grip Decal
-
36572110800 CapCap
-
37511000002 Switch ProtectorSwitch Protector
-
38234081410 Flat Washer 8 mmFlat Washer 8 mm
-
39207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41210261680 Hex Screw M6 X 16Hex Screw M6 X 16
-
42234161601 Lock Washer 6 mmLock Washer 6 mm
-
43232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
44391302100 Flat WasherFlat Washer
-
45572089400 RH ProtectorRH Protector
-
572089500 LH ProtectorLH Protector
-
46293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
47861778700 Hitch Ass'Y Kit. EUROPE / INCLUDES ITEMS 47 TO 56Hitch Ass'Y Kit. EUROPE / INCLUDES ITEMS 47 TO 56
-
48517199300 HitchHitch
-
49517152700 Hitch ProtectorHitch Protector
-
50517152800 SpringSpring
-
51114045200 Hair PinHair Pin
-
52207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
53232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
54390409400 Pop Rivet 5/32''Pop Rivet 5/32''
-
55732804000 Spring Pin M3 X 24Spring Pin M3 X 24
-
56516001243 Hitch Security LabelHitch Security Label
-
57517191700 Spacer. EUROPESpacer. EUROPE
-
58207065044 Hex Screw M6 X 50. EUROPEHex Screw M6 X 50. EUROPE
-
59511000217 Fixation. EUROPEFixation. EUROPE
-
60517223500 Reinforcement. EUROPEReinforcement. EUROPE
-
61207162044 Hex Screw M6 X 20. EUROPEHex Screw M6 X 20. EUROPE
-
62233261414 Elastic Flanged Nut M6. EUROPEElastic Flanged Nut M6. EUROPE
-
63224061201 Flat Washer. EUROPEFlat Washer. EUROPE
-
64207762044 Carriage Bolt M6 X 20. EUROPECarriage Bolt M6 X 20. EUROPE
-
65516001709 Hitch Security Label (Europe). EUROPEHitch Security Label (Europe). EUROPE
