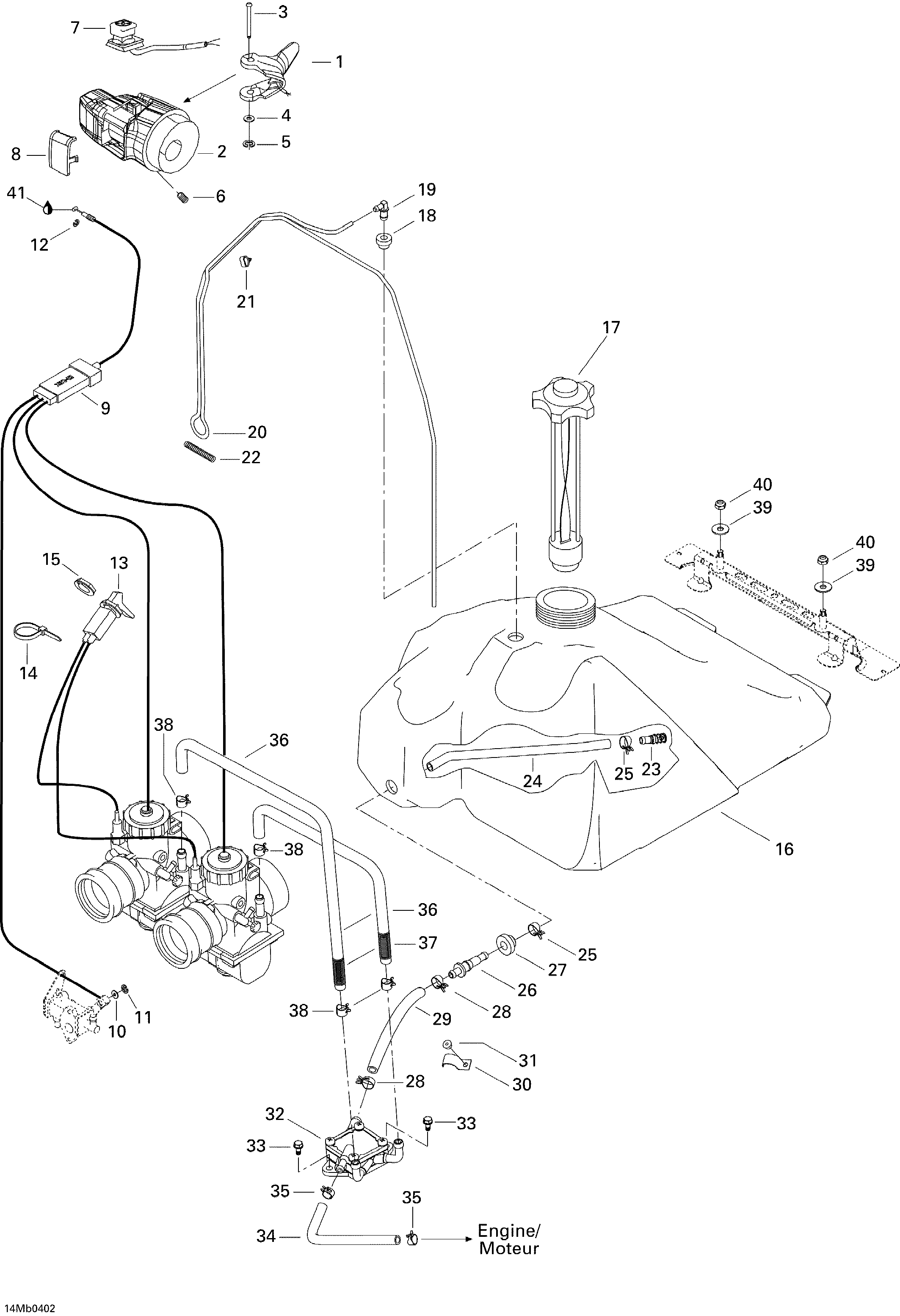

02- Fuel System (550F) для BRP Ski-Doo MX Z 550F - 2004
-
№АртикулНазвание
-
1512059623 Heat Throttle Handle (34 mm). 550FHeat Throttle Handle (34 mm). 550F
-
2512059489 Throttle Handle HousingThrottle Handle Housing
-
3414438700 Lever PinLever Pin
-
4234051600 Washer 5 mmWasher 5 mm
-
5414439000 CirclipCirclip
-
6414440800 Set Screw M8 x 10Set Screw M8 x 10
-
7515175410 Kill SwitchKill Switch
-
8572100901 Switch CoverSwitch Cover
-
9512059625 Throttle CableThrottle Cable
-
10234081100 Washer 8 mmWasher 8 mm
-
11414753500 CirclipCirclip
-
12414274500 CirclipCirclip
-
13512059441 Choke CableChoke Cable
-
14293750009 Tie Rap 160 mmTie Rap 160 mm
-
15512059094 Plastic NutPlastic Nut
-
16513032987 Fuel TankFuel Tank
-
17513033020 Fuel Tank CapFuel Tank Cap
-
18513032908 GrommetGrommet
-
19414814100 Male ConnectorMale Connector
-
20415080100 Primer LinePrimer Line
-
21513032923 Tube ClampTube Clamp
-
22414818200 SpringSpring
-
23414872100 Fuel FilterFuel Filter
-
24415005700 HoseHose
-
25513033010 Spring ClampSpring Clamp
-
26414872700 Male ConnectorMale Connector
-
27570273900 GrommetGrommet
-
28513032979 Spring ClampSpring Clamp
-
29513032903 Formed HoseFormed Hose
-
30415018200 ClipClip
-
31293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
32403901813 Fuel PumpFuel Pump
-
33210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
34415079800 HoseHose
-
35414415200 Spring ClampSpring Clamp
-
36513033022 Formed TubeFormed Tube
-
37415080000 TubingTubing
-
38513033029 Spring ClampSpring Clamp
-
39234082410 Flat Washer 8 mmFlat Washer 8 mm
-
40232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
41293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
