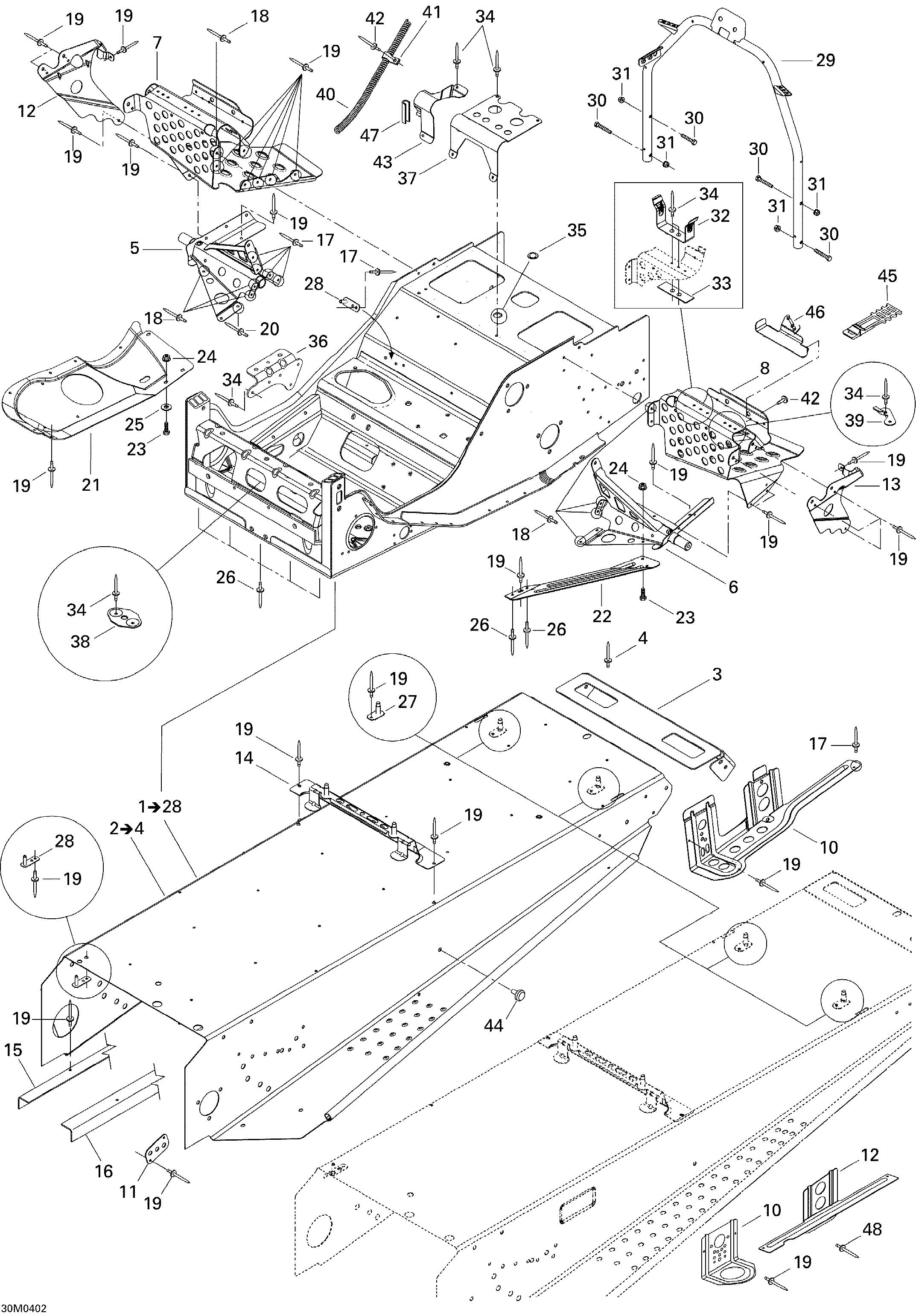

09- Frame (MX Z) для BRP Ski-Doo MX Z 550F - 2004
-
№АртикулНазвание
-
1415128757 Frame. Includes Items 1 to 28Frame. Includes Items 1 to 28
-
1415128758 Frame. GT, Includes Items 1 to 28Frame. GT, Includes Items 1 to 28
-
2518323023 Forming Frame. Includes Items 2 to 4Forming Frame. Includes Items 2 to 4
-
2415128616 Forming Frame. GT, Includes Items 2 to 4Forming Frame. GT, Includes Items 2 to 4
-
3518321303 Rear CapRear Cap
-
3518321302 Rear CapRear Cap
-
4390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
5518320506 R.H. Footrest SupportR.H. Footrest Support
-
6518320507 L.H. Footrest SupportL.H. Footrest Support
-
7518323563 R.H. FootrestR.H. Footrest
-
8518323564 L.H. FootrestL.H. Footrest
-
9518321495 Front Bracket. GTFront Bracket. GT
-
10518323315 R.H. Slide Bracket. Except GTR.H. Slide Bracket. Except GT
-
10518323703 R.H. Slide Bracket. GTR.H. Slide Bracket. GT
-
10518323318 L.H. Slide Bracket. Except GTL.H. Slide Bracket. Except GT
-
10518323706 L.H. Slide Bracket. GTL.H. Slide Bracket. GT
-
11518321321 Reinforcement PlateReinforcement Plate
-
12518321305 R.H. Footrest ReinforcementR.H. Footrest Reinforcement
-
13518321307 L.H. Footrest ReinforcementL.H. Footrest Reinforcement
-
14518321510 Fuel Tank BracketFuel Tank Bracket
-
15518323193 R.H. Frame ReinforcementR.H. Frame Reinforcement
-
15518323769 R.H. Frame Reinforcement. GTR.H. Frame Reinforcement. GT
-
16518323195 L.H. Frame ReinforcementL.H. Frame Reinforcement
-
16518323768 L.H. Frame Reinforcement. GTL.H. Frame Reinforcement. GT
-
17390909200 Rivet AVEXRivet AVEX
-
18390909100 Rivet AVEXRivet AVEX
-
19390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
21518322636 R.H. Bottom Pan PlateR.H. Bottom Pan Plate
-
22518322119 L.H. Reinforcement PlateL.H. Reinforcement Plate
-
23207152044 Hex. Screw M5 x 20Hex. Screw M5 x 20
-
24233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
25391301700 WasherWasher
-
26390910300 Rivet HenrobRivet Henrob
-
27518323321 Seat BracketSeat Bracket
-
28518323173 Double BracketDouble Bracket
-
29518322755 Handle SupportHandle Support
-
30207663544 Hex. Flanged Screw M6 x 35Hex. Flanged Screw M6 x 35
-
31233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
32518202100 Pulley Guard BracketPulley Guard Bracket
-
33518207500 ReinforcementReinforcement
-
34390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35414859400 CapCap
-
36518322635 Muffler SupportMuffler Support
-
37518310400 Air Intake SupportAir Intake Support
-
38518201307 Plate BracketPlate Bracket
-
39518322031 Tool Kit BracketTool Kit Bracket
-
40518321569 Rope GuideRope Guide
-
41518321570 ClipClip
-
42293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
43518322699 Hose SupportHose Support
-
44518321954 Fastener PanelFastener Panel
-
45570069700 LatchLatch
-
46518321999 Tool Kit BracketTool Kit Bracket
-
47271000110 TrimTrim
-
48390402400 Pop RivetPop Rivet
