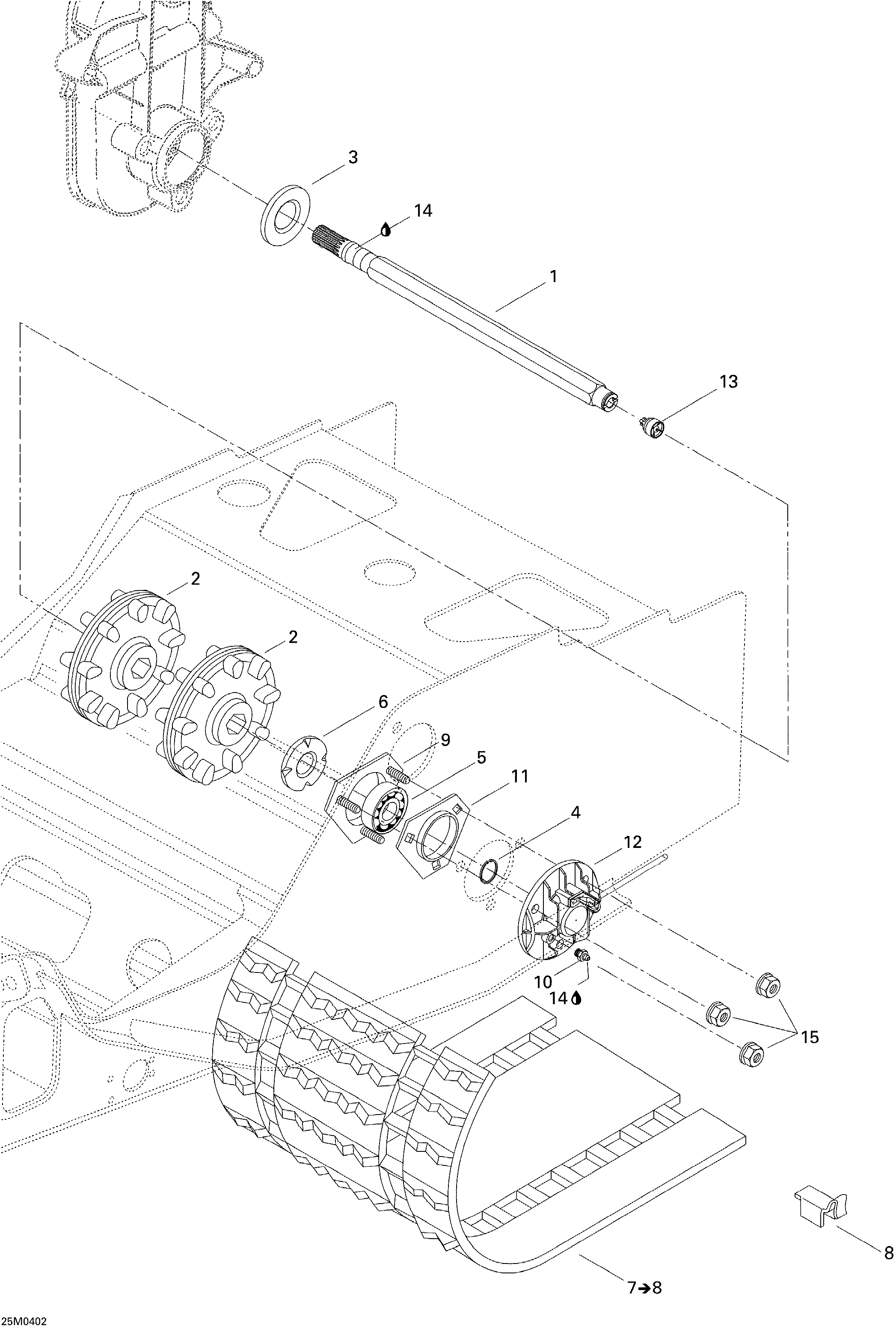

05- Drive System (MX Z 550F) для BRP Ski-Doo MX Z 550F - 2004
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504151781 Sprocket (9 Tooth)Sprocket (9 Tooth)
-
3504151918 Oil SealOil Seal
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Ball Bearing ProtectorBall Bearing Protector
-
7570212600 Track 121'' (15'' x 121'' x 0.875''). Includes Items 7 to 8Track 121'' (15'' x 121'' x 0.875''). Includes Items 7 to 8
-
7570151917 Track 121'' (15'' x 121'' x 1.000''). Europe, Includes Items 7 to 8Track 121'' (15'' x 121'' x 1.000''). Europe, Includes Items 7 to 8
-
8500003400 Guide CleatGuide Cleat
-
9504151860 Ball Bearing HousingBall Bearing Housing
-
11501025000 FlangeFlange
-
12504151836 Flange (Speedo Drive Insert)Flange (Speedo Drive Insert)
-
13504152040 Magnetic AdaptorMagnetic Adaptor
-
14219700417 Synthetic GreaseSynthetic Grease
-
15232281414 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
