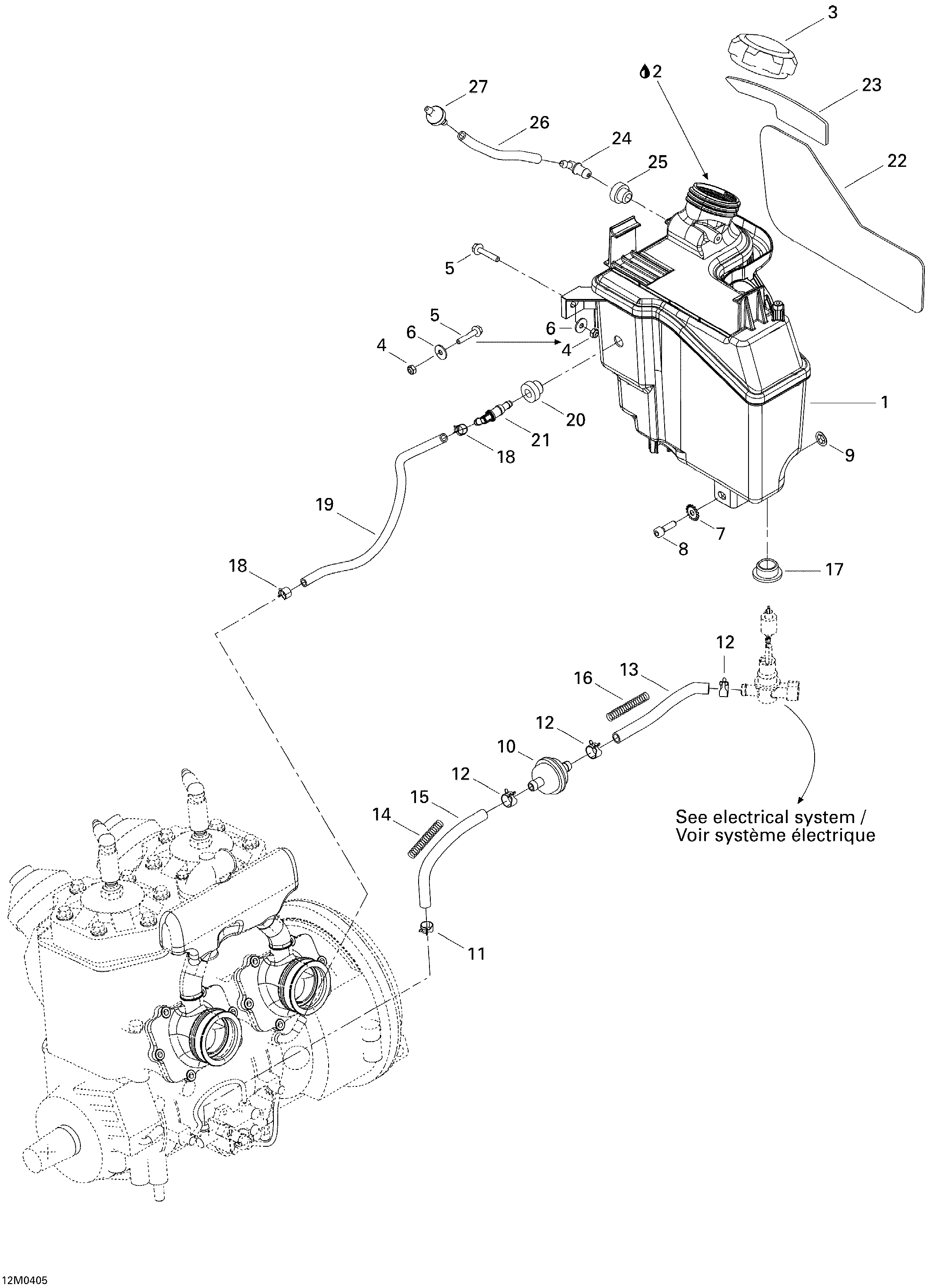

02- Oil Tank для BRP Ski-Doo MX Z 600 HO Trail/Adrenaline/X - 2004
-
№АртикулНазвание
-
1519000067 Oil TankOil Tank
-
2413803100 Blizzard Oil (12 X 500 ml)Blizzard Oil (12 X 500 ml)
-
413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
413803000 Injection Oil (3 X 4 Liter)Injection Oil (3 X 4 Liter)
-
413803200 Injection Oil (205 Liter)Injection Oil (205 Liter)
-
293600046 Synthetic Injection Oil (3 X 4 Liter)Synthetic Injection Oil (3 X 4 Liter)
-
293600047 Synthetic Injection Oil (205 Liter)Synthetic Injection Oil (205 Liter)
-
293600045 Synthetic Injection Oil (12 X 1 Liter)Synthetic Injection Oil (12 X 1 Liter)
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
6391302000 Flat WasherFlat Washer
-
7250200041 Tuflock Phillips ScrewTuflock Phillips Screw
-
8205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
9732610072 Push NutPush Nut
-
10414536500 FilterFilter
-
11414420700 Spring ClampSpring Clamp
-
12414415200 Spring ClampSpring Clamp
-
13415080700 LineLine
-
14519000064 SpringSpring
-
15415080700 LineLine
-
16519000065 SpringSpring
-
17570023000 Insulated RingInsulated Ring
-
18414554800 Spring ClampSpring Clamp
-
19415080200 LineLine
-
20570135100 GrommetGrommet
-
21414580700 Elbow Male ConnectorElbow Male Connector
-
22519000054 Reflective SheetReflective Sheet
-
23519000072 Reflective SheetReflective Sheet
-
24414580700 Elbow Male ConnectorElbow Male Connector
-
25513032908 GrommetGrommet
-
26415080200 LineLine
-
27275500398 Check ValveCheck Valve
