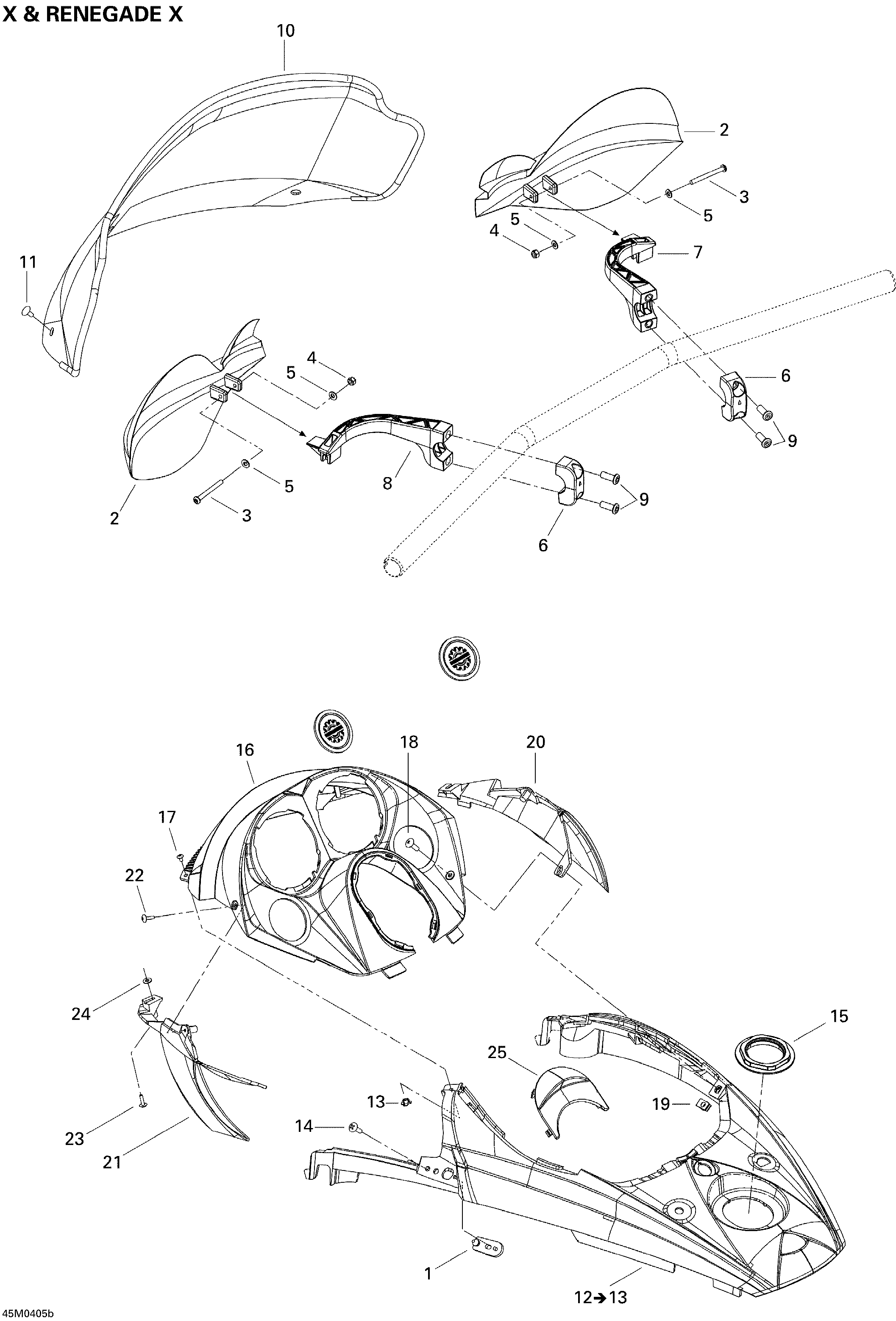

09- Windshield And Console (X & Renegade X) для BRP Ski-Doo MX Z 600 HO Trail/Adrenaline/X - 2004
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2415128768 Air Deflector Kit. X & Renegade XAir Deflector Kit. X & Renegade X
-
3205444086 Socket Head Screw M4 X 40. X & Renegade XSocket Head Screw M4 X 40. X & Renegade X
-
4232541484 Elastic Stop Nut M6. X & Renegade XElastic Stop Nut M6. X & Renegade X
-
5234041480 Flat Washer 4 mm. X & Renegade XFlat Washer 4 mm. X & Renegade X
-
6517303088 U Clamp. X & Renegade XU Clamp. X & Renegade X
-
7517303025 RH Deflector Support. X & Renegade XRH Deflector Support. X & Renegade X
-
8517303024 LH Deflector Support. X & Renegade XLH Deflector Support. X & Renegade X
-
9250000172 Socket Head Screw M6 X 16. X & Renegade XSocket Head Screw M6 X 16. X & Renegade X
-
10517303045 Medium Windshield. X & Renegade XMedium Windshield. X & Renegade X
-
11293150089 Tuflok Plastique Rivet. X & Renegade XTuflok Plastique Rivet. X & Renegade X
-
12517302795 Center Console. Includes items 12 to 13 / Black (B-160)Center Console. Includes items 12 to 13 / Black (B-160)
-
517302845 Center Console. Includes items 12 to 13 / Yellow (B-190)Center Console. Includes items 12 to 13 / Yellow (B-190)
-
517303068 Center Console. Includes items 12 to 13 / Voltage blue metallic (B-225)Center Console. Includes items 12 to 13 / Voltage blue metallic (B-225)
-
13250100030 '' T'' Flanged Nut M4'' T'' Flanged Nut M4
-
14250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
15517302575 Console NutConsole Nut
-
16517303055 Indicator Support. X & Renegade XIndicator Support. X & Renegade X
-
17250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
18250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
19250000079 Nut M5Nut M5
-
20517302798 RH Air Deflector. X & Renegade XRH Air Deflector. X & Renegade X
-
21517302799 LH Air Deflector. X & Renegade XLH Air Deflector. X & Renegade X
-
22250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
23250000113 Screw M4 X 16Screw M4 X 16
-
24234042600 Flat Washer 4 mmFlat Washer 4 mm
-
25517302592 Console CapConsole Cap
