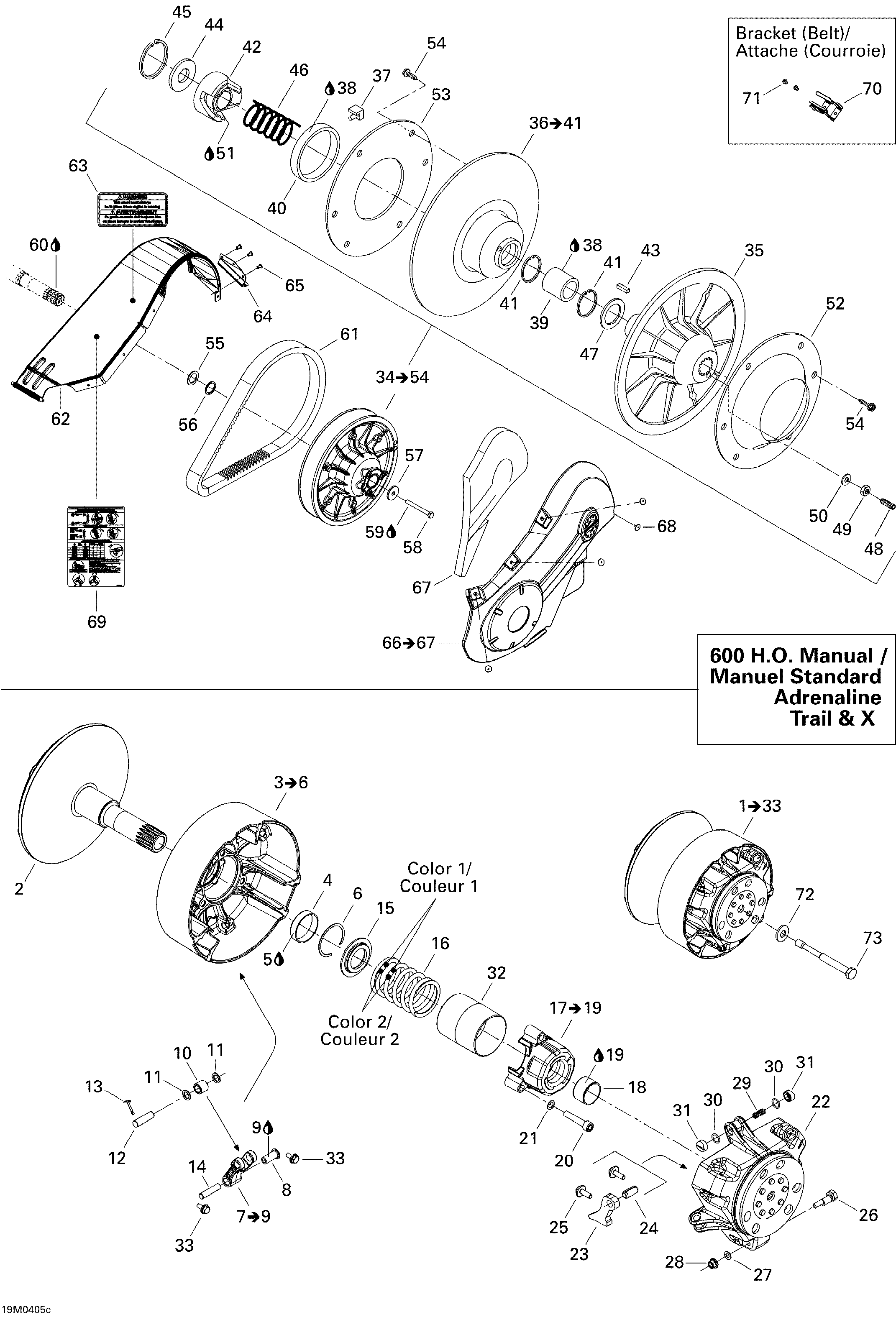

05- Pulley System 600 HO Manual Std для BRP Ski-Doo MX Z 600 HO Trail/Adrenaline/X - 2004
-
№АртикулНазвание
-
2417222294 Fixed Flange Ass'YFixed Flange Ass'Y
-
3417222181 Sliding Flange Ass'Y. Includes items 3 to 6Sliding Flange Ass'Y. Includes items 3 to 6
-
4417006900 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'YLever Ass'Y
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417003900 Roller Ass'YRoller Ass'Y
-
11417004302 Stopper WasherStopper Washer
-
12417004308 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417009202 Lever AxleLever Axle
-
15417222312 Spring SeatSpring Seat
-
16415034900 Spring (Violet/Blue)Spring (Violet/Blue)
-
17417007500 Spring Cover Ass'Y. Includes items 17 to 19Spring Cover Ass'Y. Includes items 17 to 19
-
18417009204 BushingBushing
-
19413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
20205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
21250200009 Lock Washer 8 mmLock Washer 8 mm
-
22417222213 Governor CupGovernor Cup
-
23417222596 Ramp 410Ramp 410
-
24250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
25250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
26417005500 Calibration ScrewCalibration Screw
-
27417005600 WasherWasher
-
28233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
29417005700 SpringSpring
-
30732401030 O-RingO-Ring
-
31417005800 Slider ShoeSlider Shoe
-
32417009205 GuardGuard
-
33210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
35417126499 Fixed FlangeFixed Flange
-
36417126501 Sliding Flange Ass'Y. Includes items 36 to 41Sliding Flange Ass'Y. Includes items 36 to 41
-
37414918000 Cam Slider ShoeCam Slider Shoe
-
38413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
40417126514 CushionCushion
-
41371911200 CirclipCirclip
-
42417126704 CameCame
-
43414820800 KeyKey
-
44417126555 WasherWasher
-
45371903100 CirclipCirclip
-
46504152070 Release Spring (White) (Ho)Release Spring (White) (Ho)
-
47504141900 Thrust WasherThrust Washer
-
48206263044 Pressure Screw M6 X 30Pressure Screw M6 X 30
-
49232061414 Hex-Nut M6Hex-Nut M6
-
50420245370 WasherWasher
-
51293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
52504142000 CupCup
-
53504142100 RingRing
-
54210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
55504149100 SpacerSpacer
-
56504112000 ShimShim
-
57517302322 WasherWasher
-
58207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
59293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
60293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
61417300197 Drive BeltDrive Belt
-
62417300213 Belt GuardBelt Guard
-
63516001190 Warning LabelWarning Label
-
64417300216 Belt Guard BracketBelt Guard Bracket
-
65390402200 Rivet 3/16''Rivet 3/16''
-
66417300248 Side Protector Ass'Y. Includes itwma 66 to 67Side Protector Ass'Y. Includes itwma 66 to 67
-
67417300246 FoamFoam
-
68293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
69516001639 Suspension Adjustment DecalSuspension Adjustment Decal
-
70517281905 BracketBracket
-
71390402200 Rivet 3/16''Rivet 3/16''
-
72250200006 Conical Spring Washer 14 mmConical Spring Washer 14 mm
-
73417120000 Drive Pulley BoltDrive Pulley Bolt
