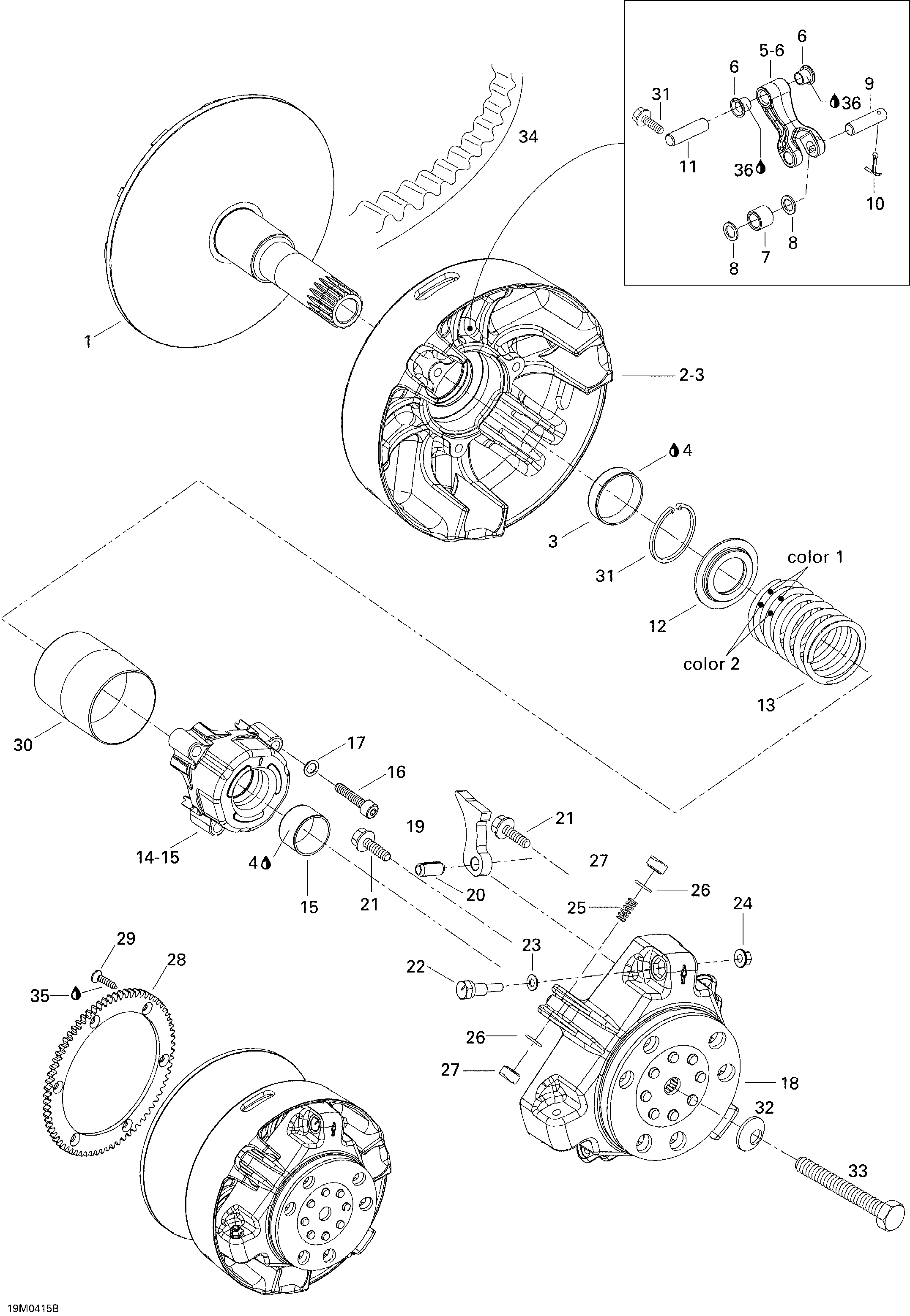

05- Drive Pulley (593) для BRP Ski-Doo Skandic SUV 600 - 2004
-
№АртикулНазвание
-
1417222294 Fixed Flange Ass'YFixed Flange Ass'Y
-
2417222181 Sliding Flange Ass'YSliding Flange Ass'Y
-
3417222758 BushingBushing
-
4413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
5417222306 Lever Ass'Y. Includes Items 1 to 6Lever Ass'Y. Includes Items 1 to 6
-
6417004305 BushingBushing
-
7417003900 Roller Ass'YRoller Ass'Y
-
8417004302 Stopper WasherStopper Washer
-
9417222594 PinPin
-
10732958001 Cotter PinCotter Pin
-
11417009202 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414993000 Tra SpringTra Spring
-
14417007500 Spring Cover Ass'Y. Includes Items 14 to 15Spring Cover Ass'Y. Includes Items 14 to 15
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
17250200009 Lock Washer 8 mmLock Washer 8 mm
-
18417222213 Governor CupGovernor Cup
-
19417222444 Ramp 600Ramp 600
-
20250400009 Rolled Pin M10 X 22Rolled Pin M10 X 22
-
21250000059 Hex Flanged Screw M6 X 18Hex Flanged Screw M6 X 18
-
22417005500 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233061414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417005800 Slider ShoeSlider Shoe
-
28417222321 Ring GearRing Gear
-
29250000049 Hex Torx Screw M8 X 14.5Hex Torx Screw M8 X 14.5
-
30417009205 GuardGuard
-
31210361296 Hex Forming Screw M6 X 12Hex Forming Screw M6 X 12
-
32M20110 Conical Spring WasherConical Spring Washer
-
33417120000 Drive Pulley BoltDrive Pulley Bolt
-
34417300155 Drive BeltDrive Belt
-
35293800005 Loctite 271, 10 mlLoctite 271, 10 ml
