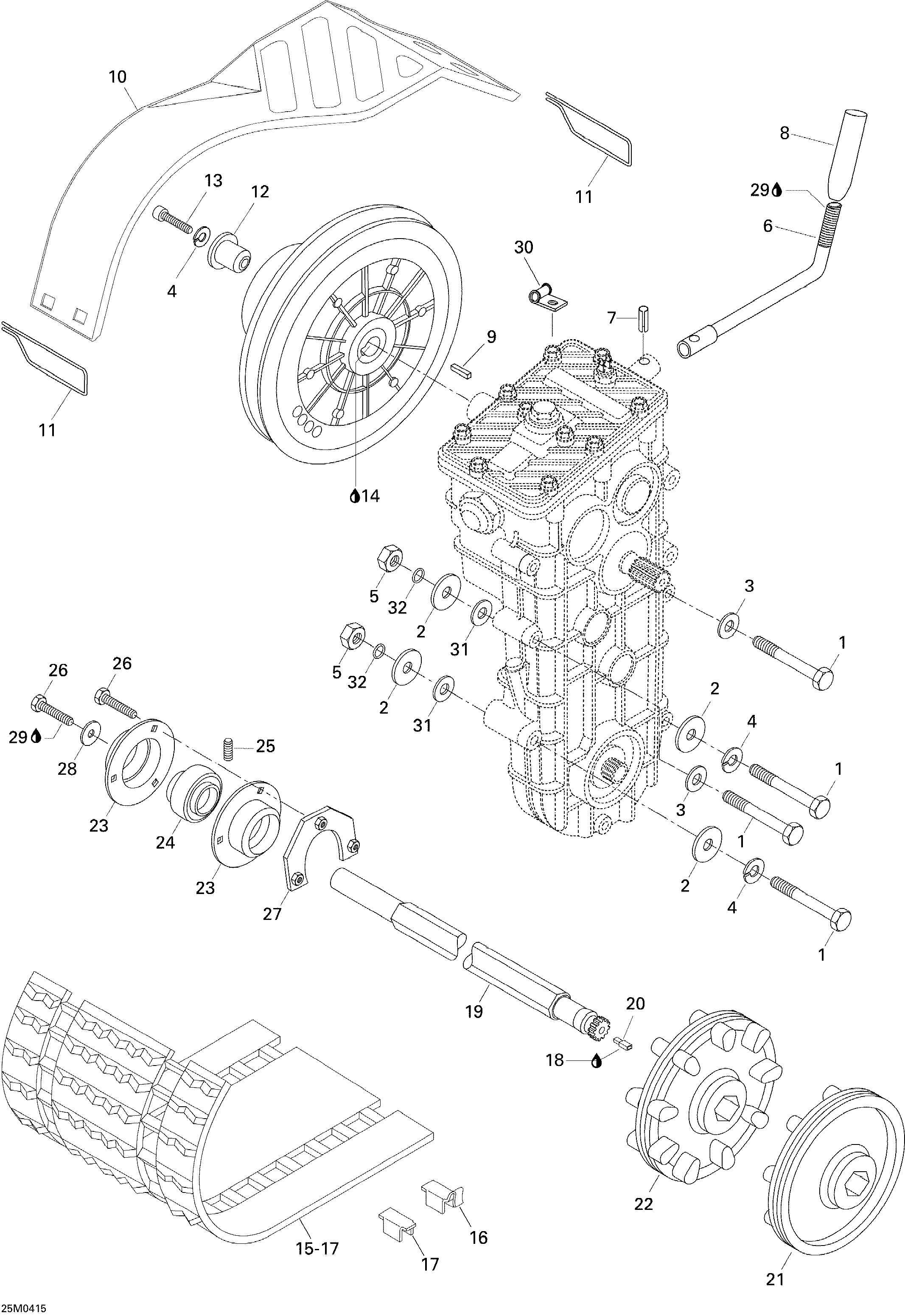

05- Drive System для BRP Ski-Doo Skandic SUV 600 - 2004
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M5340902 Arm ShifterArm Shifter
-
7M41008 Pin SpringPin Spring
-
7M41007 Pin SpringPin Spring
-
8M28247 Arm Shifter BallArm Shifter Ball
-
9M418763 KeyKey
-
10605150015 Belt GuardBelt Guard
-
11M5442726 PinPin
-
12M5443201 Shaft ExtensionShaft Extension
-
13M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
14293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
15M13070 Track Ass'YTrack Ass'Y
-
16M5318323 Guide CleatGuide Cleat
-
17M5318322 CleatCleat
-
18293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
19M5345117 Drive AxleDrive Axle
-
20M542013 NippleNipple
-
21415067400 Half SprocketHalf Sprocket
-
22414931800 SprocketSprocket
-
23M534430 Ball Bearing HousingBall Bearing Housing
-
24M31UC205 Ball BearingBall Bearing
-
25M10531 ScrewScrew
-
26M40336 Screw M8 X 20Screw M8 X 20
-
27M546421 Half RingHalf Ring
-
28M546336 WasherWasher
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30M5443134 Wire HolderWire Holder
-
31M20077 WasherWasher
-
32506151140 O-RingO-Ring
