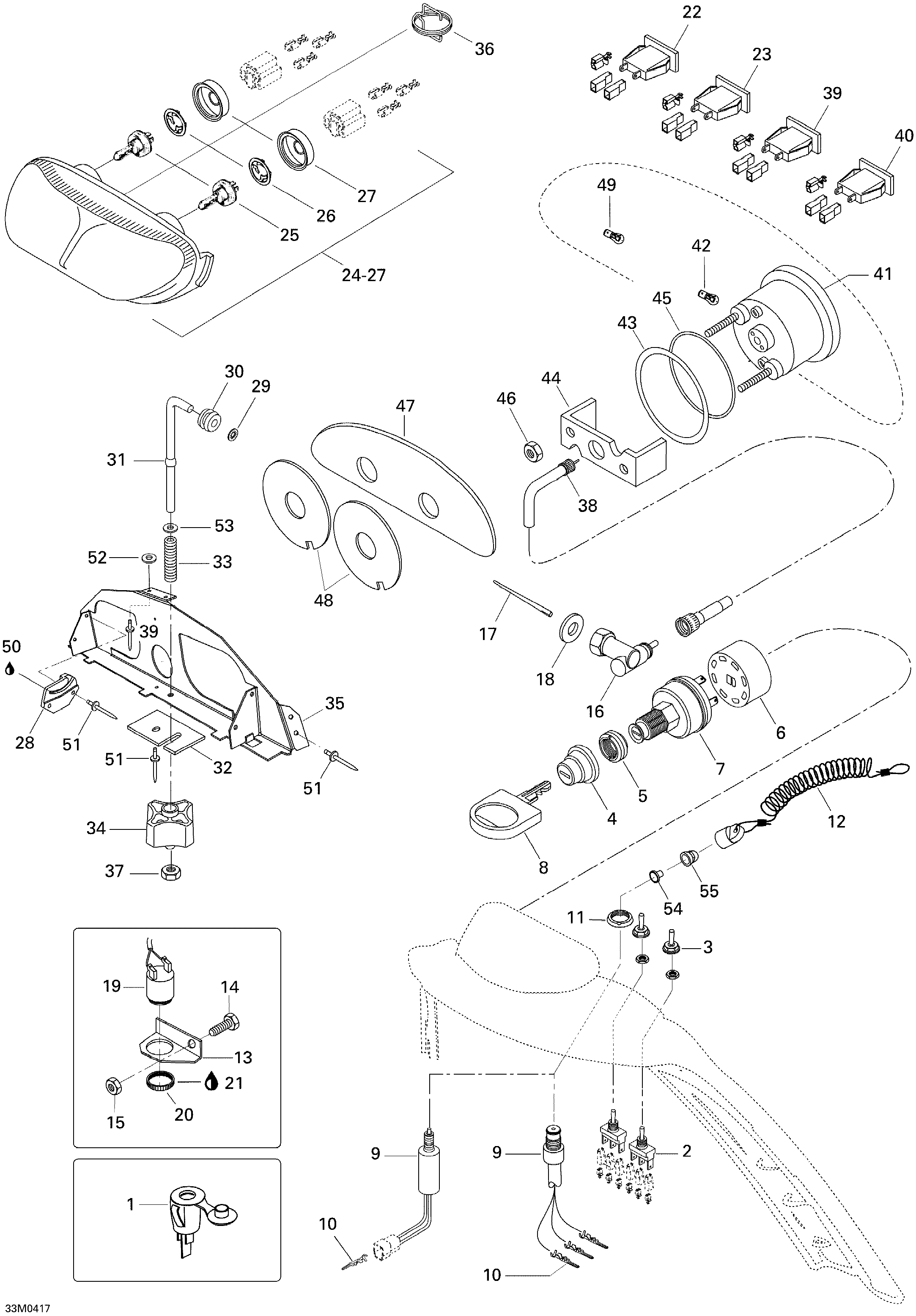

10- Electrical System для BRP Ski-Doo Skandic SUV 600 - 2004
-
№АртикулНазвание
-
1M42026 Current OutletCurrent Outlet
-
2410107300 Switch (Heating Grip)Switch (Heating Grip)
-
3515175281 Switch CoverSwitch Cover
-
4570013700 Switch BootSwitch Boot
-
5410112100 Face NutFace Nut
-
6572150700 Female Terminal Housing (9 Circuits)Female Terminal Housing (9 Circuits)
-
7410113602 Ignition SwitchIgnition Switch
-
8414991700 Blank KeyBlank Key
-
9515175571 Switch Brake. 550F SUVSwitch Brake. 550F SUV
-
9515166800 Terminal Ass'Y. 600 SUVTerminal Ass'Y. 600 SUV
-
10M42603 Male TerminalMale Terminal
-
11278000508 Safety Switch Nut. 600 SUVSafety Switch Nut. 600 SUV
-
12515151500 Cap Ass'Y. 550F SUVCap Ass'Y. 550F SUV
-
12515166900 Dess Cap Ass'Y. 600 SUVDess Cap Ass'Y. 600 SUV
-
13M549459 SupportSupport
-
14207161644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
15M33200 Nut M6Nut M6
-
16M35021 Drive AngleDrive Angle
-
17M45009 Square Pin-SpeedometerSquare Pin-Speedometer
-
18M5444186 WasherWasher
-
19414792102 Back-Up AlarmBack-Up Alarm
-
20414805101 Plastic NutPlastic Nut
-
21296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
22515175726 Pilot Lamp (Headlamp)Pilot Lamp (Headlamp)
-
23515175728 Pilot Lamp (Oil Level/Brake)Pilot Lamp (Oil Level/Brake)
-
24515175909 Halogen Headlamp. Includes Items 24 to 27Halogen Headlamp. Includes Items 24 to 27
-
25410504401 Halogen Bulb 60/55 WHalogen Bulb 60/55 W
-
26515175910 Bulb HolderBulb Holder
-
27515175911 CoverCover
-
28517289300 Headlamp Support RHHeadlamp Support RH
-
28517289400 Headlamp Support LHHeadlamp Support LH
-
29732610072 Push NutPush Nut
-
30415100800 GrommetGrommet
-
31M5448100 Adjuster RodAdjuster Rod
-
32M5448320 Washer 6mmWasher 6mm
-
33415100600 SpringSpring
-
34515175548 HandleHandle
-
35M5248092 SupportSupport
-
36M5445737 SpringSpring
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38M5344162 Speedometer CableSpeedometer Cable
-
39410109700 Pilot Lamp (Engine Temperature). 600 SUVPilot Lamp (Engine Temperature). 600 SUV
-
40410113300 Pilot Lamp (Dess). 600 SUVPilot Lamp (Dess). 600 SUV
-
41515175335 Speedometer (Kmh)Speedometer (Kmh)
-
41515175336 Speedometer (mph). Includes Items 41 to 42Speedometer (mph). Includes Items 41 to 42
-
42515175929 Bulb 12V-1.7WBulb 12V-1.7W
-
43517258500 WasherWasher
-
44414806500 Case HolderCase Holder
-
45414807100 O-RingO-Ring
-
46M33062 Nut M5Nut M5
-
47M5247817 FoamFoam
-
48M5447818 Plastic PlatePlastic Plate
-
49410504200 Instrumentation BulbInstrumentation Bulb
-
50413707500 Grease Tube Lmz, 400 GGrease Tube Lmz, 400 G
-
51M36005 RivetRivet
-
52M20008 Washer 5 mmWasher 5 mm
-
53234061410 Flat WasherFlat Washer
-
54570151100 Plunger Cap. 550F SUVPlunger Cap. 550F SUV
-
55515145900 Switch Nut. 550F SUVSwitch Nut. 550F SUV
