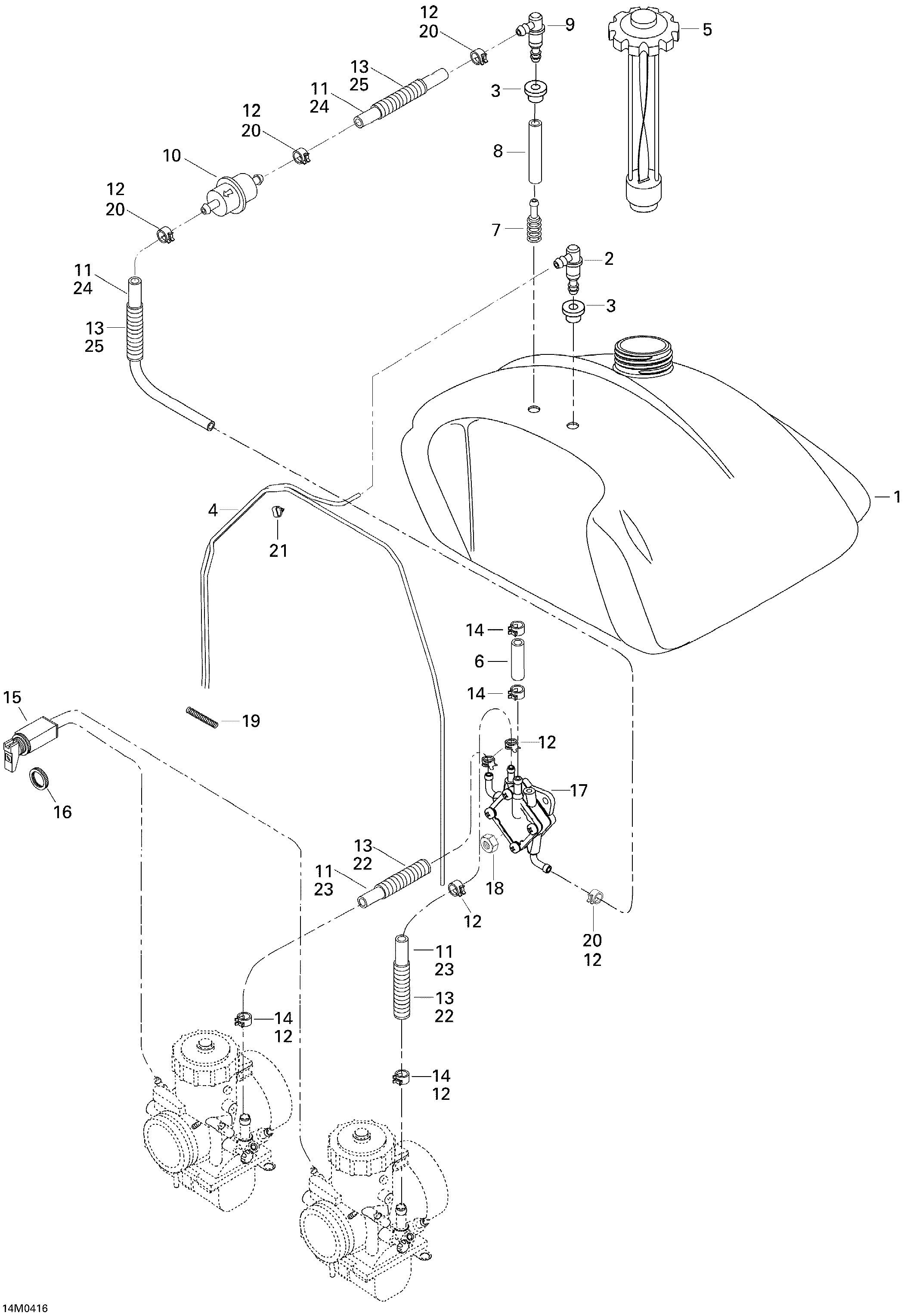

02- Fuel System для BRP Ski-Doo Skandic WTLC 600 - 2004
-
№АртикулНазвание
-
1M519393 Fuel TankFuel Tank
-
2M533535 Male ConnectorMale Connector
-
3M28037 GrommetGrommet
-
4M39035 HoseHose
-
5572161200 Fuel Tank CapFuel Tank Cap
-
6415080200 LineLine
-
7414872100 Fuel FilterFuel Filter
-
8415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
9M5341709 Male ConnectorMale Connector
-
10414363600 Fuel Filter. WT, SWTFuel Filter. WT, SWT
-
10414536500 Filter. WTLCFilter. WTLC
-
11M39004 Hose. WT, SWTHose. WT, SWT
-
12M27086 Spring Clamp. WT, SWTSpring Clamp. WT, SWT
-
12M27086 Spring Clamp. WTLCSpring Clamp. WTLC
-
13M28012 Housing. WT, SWTHousing. WT, SWT
-
14414420700 Spring Clamp. WT, SWTSpring Clamp. WT, SWT
-
15M535482 Choke CableChoke Cable
-
16414977200 Plastic NutPlastic Nut
-
17403800600 Fuel Pump. WT, SWTFuel Pump. WT, SWT
-
17M19113 Fuel Pump. WTLCFuel Pump. WTLC
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19414818200 SpringSpring
-
20414415200 Spring Clamp. WTLCSpring Clamp. WTLC
-
21513032923 Tube ClampTube Clamp
-
22M28012 Housing. WTLCHousing. WTLC
-
23M39004 Hose. WTLCHose. WTLC
-
24415080700 Line. WTLCLine. WTLC
-
25M28015 Housing. WTLCHousing. WTLC
