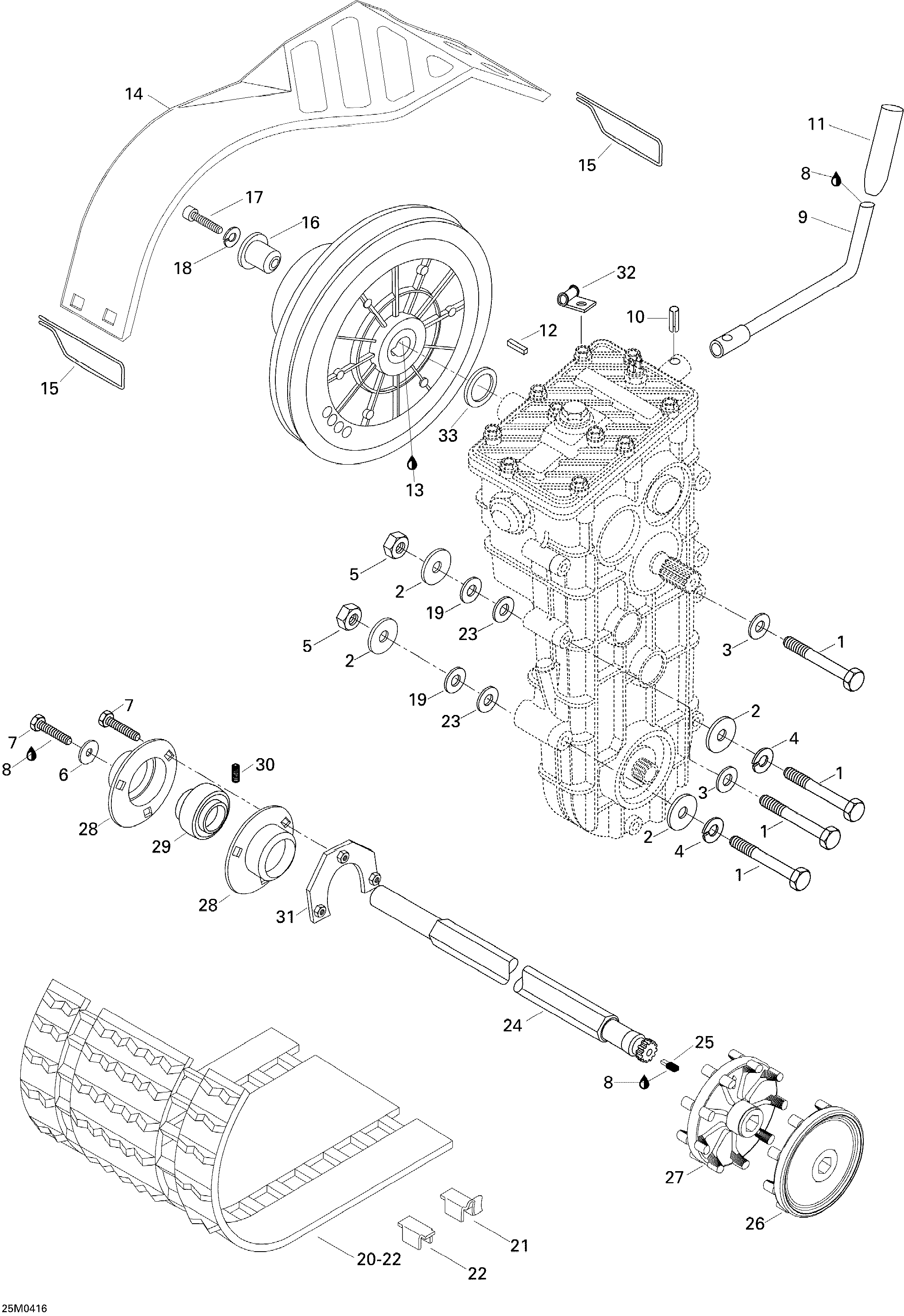

05- Drive System для BRP Ski-Doo Skandic WTLC 600 - 2004
-
№АртикулНазвание
-
1M40012 Screw M8 X 80Screw M8 X 80
-
2M20010 WasherWasher
-
3234081410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
6M546336 WasherWasher
-
7M40336 Screw M8 X 20Screw M8 X 20
-
8293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
9M5340902 Arm ShifterArm Shifter
-
10M41008 Pin SpringPin Spring
-
10M41007 Pin SpringPin Spring
-
11M28247 Arm Shifter BallArm Shifter Ball
-
12M418763 KeyKey
-
13293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
14M5142660 Belt GuardBelt Guard
-
15M5442726 PinPin
-
16M5443201 Shaft ExtensionShaft Extension
-
16M5443765 Shaft ExtensionShaft Extension
-
17M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
17M40290 Socket Head Screw M8 X 55Socket Head Screw M8 X 55
-
18234181401 Lock Washer 8 mmLock Washer 8 mm
-
19M20077 WasherWasher
-
20M13070 Track Ass'YTrack Ass'Y
-
20M13056 Track Ass'YTrack Ass'Y
-
21M5318323 Guide CleatGuide Cleat
-
22M5318322 CleatCleat
-
23M20077 WasherWasher
-
23M20031 WasherWasher
-
24M5345117 Drive AxleDrive Axle
-
24M5344243 Drive AxleDrive Axle
-
25M542013 NippleNipple
-
26415067400 Half SprocketHalf Sprocket
-
27414931800 SprocketSprocket
-
28M534430 Ball Bearing HousingBall Bearing Housing
-
29M31UC205 Ball BearingBall Bearing
-
30M10531 ScrewScrew
-
31M546421 Half RingHalf Ring
-
32M5443134 Wire HolderWire Holder
-
33M3125351 ShimShim
