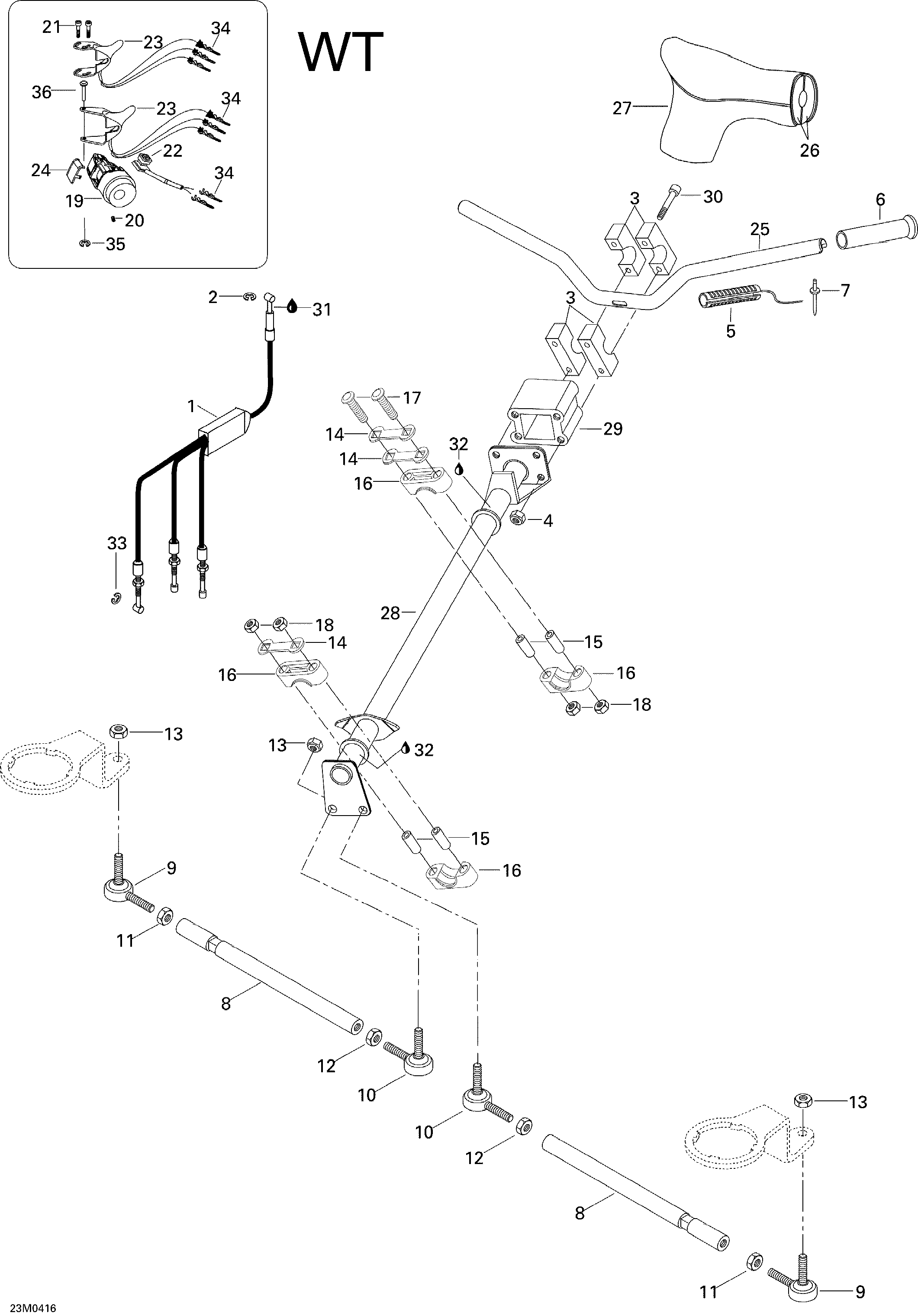

07- Steering System WT/ WTLC для BRP Ski-Doo Skandic WTLC 600 - 2004
-
№АртикулНазвание
-
1605249117 Throttle Cable. WTThrottle Cable. WT
-
1M5246328 Throttle Cable. WTLCThrottle Cable. WTLC
-
2M31038 CirclipCirclip
-
3M548448 Steering ClampSteering Clamp
-
4232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
4232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
5515175664 Heating GripHeating Grip
-
6M5340464 Grip HandleGrip Handle
-
7M36005 RivetRivet
-
8M548983 Tie Rod RHTie Rod RH
-
8M5441066 Tie Rod LHTie Rod LH
-
9506151492 RH Ball JointRH Ball Joint
-
10506151495 LH Ball JointLH Ball Joint
-
11M33019 Nut RHNut RH
-
12M33017 Nut LHNut LH
-
13M33023 NutNut
-
14506150600 Stopper PlateStopper Plate
-
15506150500 Housing BushingHousing Bushing
-
16506150400 Half HousingHalf Housing
-
17207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
18M33201 Elastic Stop Nut M8Elastic Stop Nut M8
-
19512059489 Throttle Housing. WTThrottle Housing. WT
-
19512059243 Throttle Housing. WTLCThrottle Housing. WTLC
-
20414440800 Set Screw M8 X 10Set Screw M8 X 10
-
21732601143 Flanged Screw. WTLCFlanged Screw. WTLC
-
22515175410 Kill SwitchKill Switch
-
23512059623 Heat Throttle Handle 34 mm. WTHeat Throttle Handle 34 mm. WT
-
23512059348 Handle Ass'Y. WTLCHandle Ass'Y. WTLC
-
24572100901 Switch CoverSwitch Cover
-
25605249033 Handle BarHandle Bar
-
26605250306 Rear Padding Steering. WTRear Padding Steering. WT
-
26605248760 Rear Padding Steering. WTLCRear Padding Steering. WTLC
-
26605250305 Front Padding Steering. WTFront Padding Steering. WT
-
26605249281 Front Padding Steering. WTLCFront Padding Steering. WTLC
-
27605248761 CoverCover
-
28605249849 Main TubeMain Tube
-
29605349584 ExtensionExtension
-
30M40124 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
31293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
32219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
33M31035 CirclipCirclip
-
34M42603 Male TerminalMale Terminal
-
35414439000 Circlip. WTCirclip. WT
-
36414438700 Lever Pin. WTLever Pin. WT
