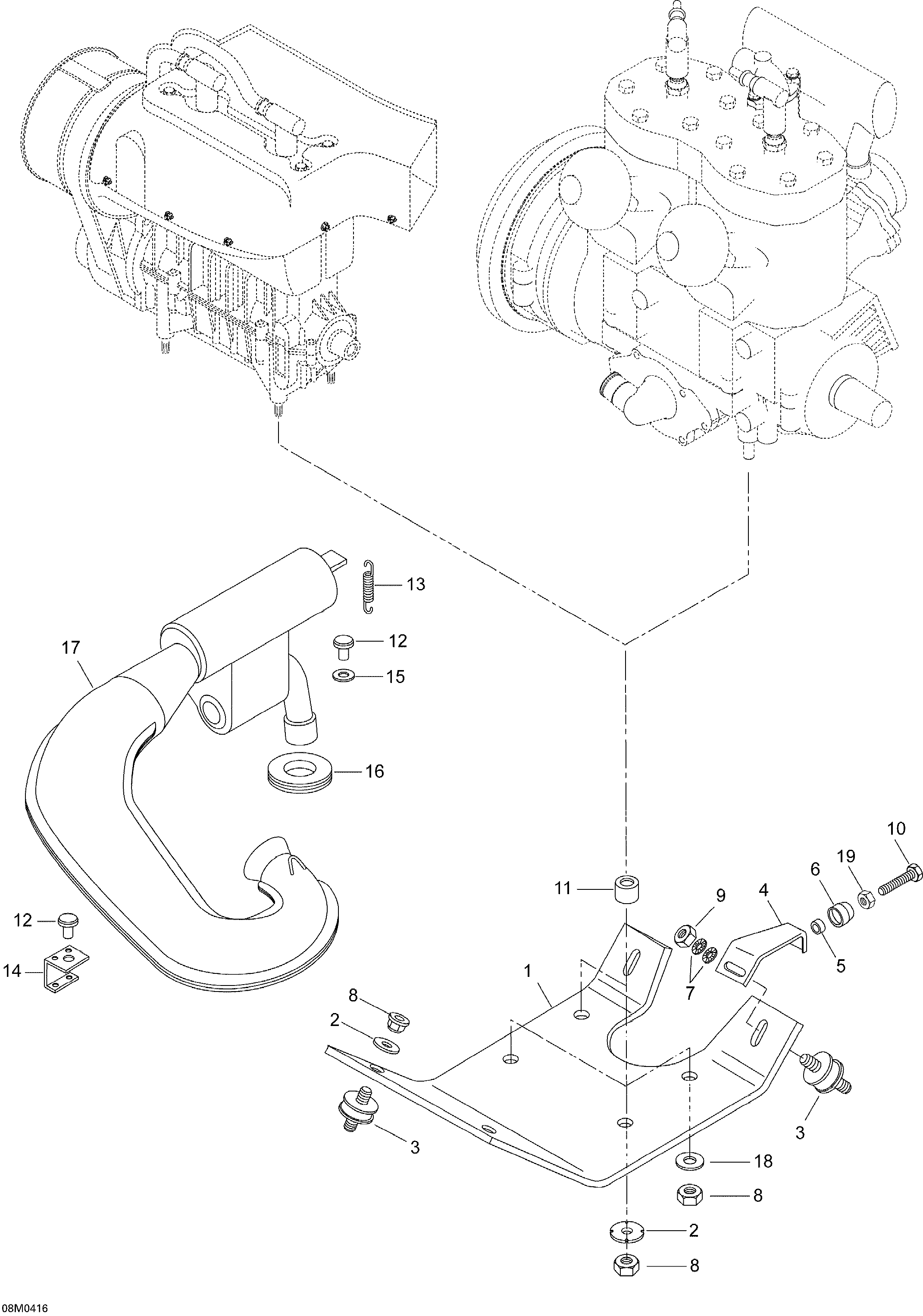

01- Engine Assembly And Support для BRP Ski-Doo Skandic WT/SWT 550F - 2004
-
№АртикулНазвание
-
1M5342951 Engine Support. WT, SWTEngine Support. WT, SWT
-
1M5346175 Engine Support. WTLCEngine Support. WTLC
-
2512056700 Lock Washer. WT, SWTLock Washer. WT, SWT
-
2512056700 Lock Washer. WTLCLock Washer. WTLC
-
3570128700 Rubber MountRubber Mount
-
4M539902 SupportSupport
-
5M2846014 Rubber WasherRubber Washer
-
6M5440091 SleeveSleeve
-
7M20068 Lock WasherLock Washer
-
8233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
9232006414 Hexagonal Nut M10Hexagonal Nut M10
-
10M40121 Hexagonal Cap Screw M8 X 25Hexagonal Cap Screw M8 X 25
-
11M5440678 Sleeve. WT, SWTSleeve. WT, SWT
-
11M5446347 Sleeve. WTLCSleeve. WTLC
-
12570048700 Rubber BumperRubber Bumper
-
13420938795 SpringSpring
-
14M5442681 SupportSupport
-
15M20087 Washer. WT, SWTWasher. WT, SWT
-
15M20087 Washer. WTLCWasher. WTLC
-
16570039000 Exhaust GrommetExhaust Grommet
-
17605150131 Tuned Piped Ass'Y. WT, SWTTuned Piped Ass'Y. WT, SWT
-
17420979856 Tuned Pipe. WTLCTuned Pipe. WTLC
-
18M20105 Washer. WTLCWasher. WTLC
-
19M33003 NutNut
