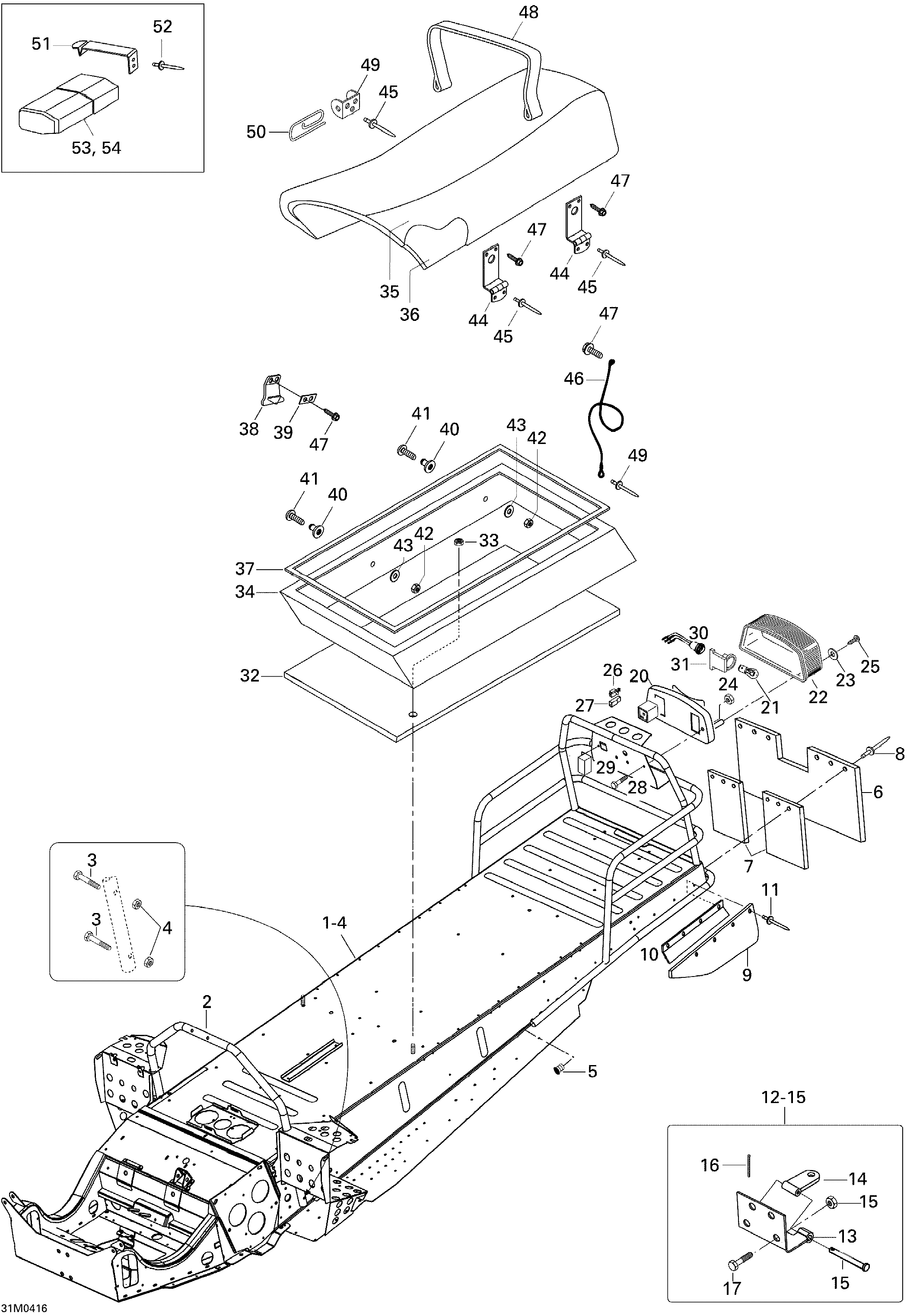

09- Frame And Seat (1 Up) для BRP Ski-Doo Skandic WT/SWT 550F - 2004
-
№АртикулНазвание
-
1605150143 Frame Ass'Y SwtFrame Ass'Y Swt
-
2M5145379 Handle SupportHandle Support
-
3207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
4M33200 Nut M6Nut M6
-
5M28136 PlugPlug
-
6M539945 Snow GuardSnow Guard
-
7M5341770 SupportSupport
-
8M36037 RivetRivet
-
9M5340136 Snow GuardSnow Guard
-
10M5340532 SupportSupport
-
11M36097 RivetRivet
-
12M5344151 PlatePlate
-
14M548745 Hitch PlateHitch Plate
-
15560309200 Pin-RetainerPin-Retainer
-
16M41031 PinPin
-
17M40336 Screw M8 X 20Screw M8 X 20
-
18232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
20511000007 Light Housing Ass.Light Housing Ass.
-
21410504000 Bulb (Tail Lamp)Bulb (Tail Lamp)
-
22414513700 LensLens
-
23414516400 WasherWasher
-
24M33200 Nut M6Nut M6
-
25209632540 Phillips Tapping ScrewPhillips Tapping Screw
-
26M42178 Female TerminalFemale Terminal
-
27M42179 Female HousingFemale Housing
-
28207063044 Hex Screw M6 X 30Hex Screw M6 X 30
-
29M5345713 AdaptorAdaptor
-
30515175650 SocketSocket
-
31414979411 Rubber DamperRubber Damper
-
32M5346331 FoamFoam
-
33M33200 Nut M6Nut M6
-
34M5246336 Welded Seat Base WeldWelded Seat Base Weld
-
35605148727 Cover SeatCover Seat
-
36M5245239 Foam SeatFoam Seat
-
37M390002 CushionCushion
-
38M5346383 LatchLatch
-
39M5446848 PlatePlate
-
40605449087 Counter RollerCounter Roller
-
41M40168 ScrewScrew
-
42232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
43M20037 WasherWasher
-
44M5446374 HingeHinge
-
45M36083 RivetRivet
-
46M546777 Retainer CableRetainer Cable
-
47M40888 ScrewScrew
-
48M538856 Seat BeltSeat Belt
-
49M548824 Seat Belt LatchSeat Belt Latch
-
50M548834 Hair PinHair Pin
-
51M539455 SpringSpring
-
52M36005 RivetRivet
-
53529035500 Tool KitTool Kit
-
54572036310 Tool Box Ass'Y.Tool Box Ass'Y.
