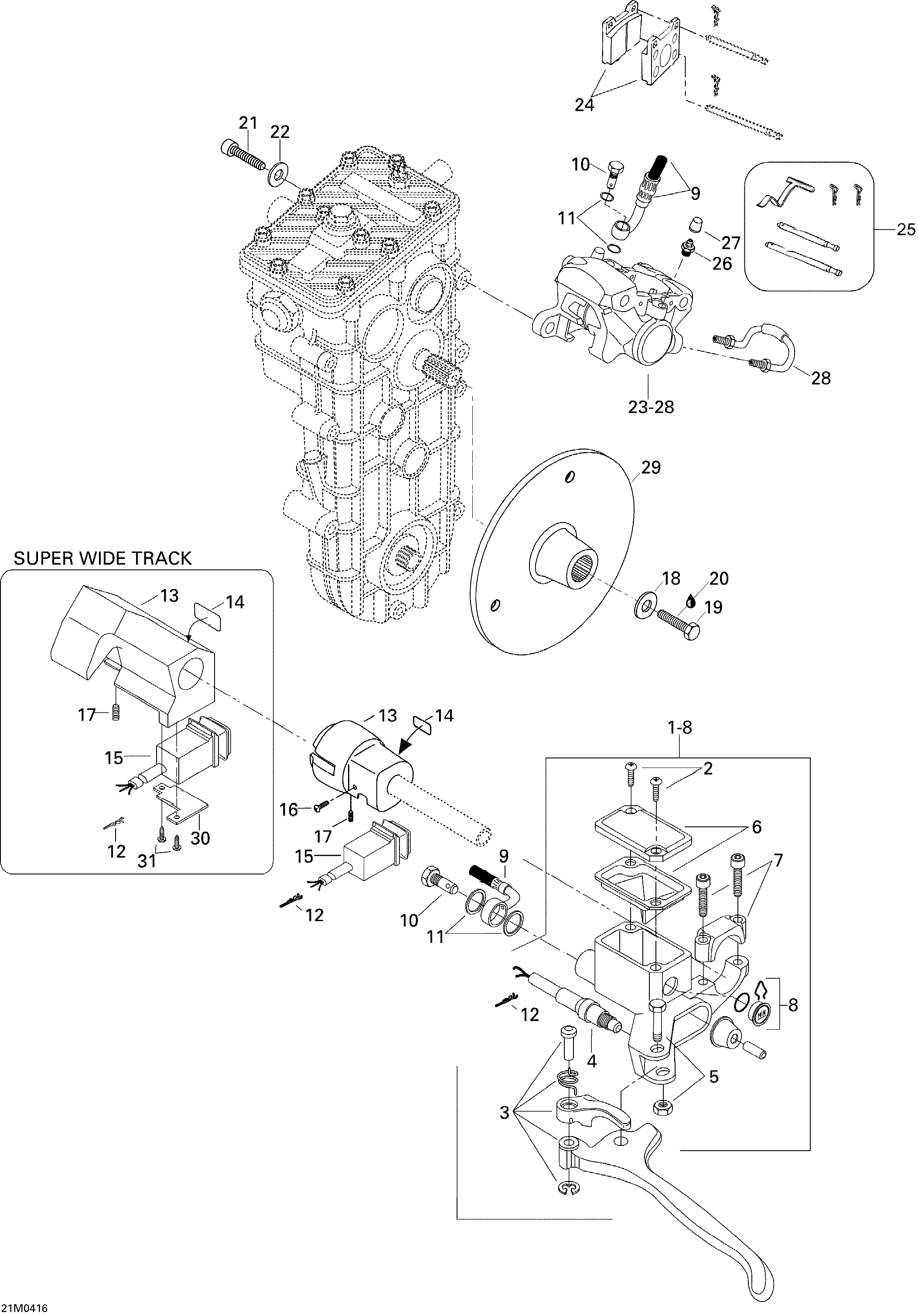

06- Brake для BRP Ski-Doo Skandic WT/SWT 550F - 2004
-
№АртикулНазвание
-
1507032293 Master Cylinder. SWT INCLUDES ITEMS 1 TO 8Master Cylinder. SWT INCLUDES ITEMS 1 TO 8
-
2216141260 ScrewScrew
-
3507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
4507032366 Micro-ContactMicro-Contact
-
5415030000 Pin Ass'YPin Ass'Y
-
6414990600 WindowWindow
-
7415029800 Brake Attachment Ass'yBrake Attachment Ass'y
-
8415029900 CapCap
-
9507032219 HoseHose
-
10414920500 Banjo BoltBanjo Bolt
-
11414920600 WasherWasher
-
12M42603 Male TerminalMale Terminal
-
13572079500 Dimmer Switch Housing. SWTDimmer Switch Housing. SWT
-
13515175696 Brake Housing. WT, WTLCBrake Housing. WT, WTLC
-
14415025500 Switch DecalSwitch Decal
-
15515175423 Switch. SWTSwitch. SWT
-
15515175814 Light Switch. WT, WTLCLight Switch. WT, WTLC
-
16250000022 Phillips Screw. WT, WTLCPhillips Screw. WT, WTLC
-
17414440800 Set Screw M8 X 10Set Screw M8 X 10
-
18M546336 WasherWasher
-
19M40336 Screw M8 X 20Screw M8 X 20
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21M40277 Socket Head Screw M10 X 65Socket Head Screw M10 X 65
-
22M20068 Lock WasherLock Washer
-
23507032321 Caliper. INCLUDES ITEMS 22 TO 27Caliper. INCLUDES ITEMS 22 TO 27
-
24415084600 Brake Pad KitBrake Pad Kit
-
25414990700 Kit (Pins, Retainers, Spring)Kit (Pins, Retainers, Spring)
-
26414989800 Screw-BleederScrew-Bleeder
-
27414989700 BootBoot
-
28414989900 Rigid TubingRigid Tubing
-
29M5344710 Brake DiskBrake Disk
-
30517283800 Plate. SWTPlate. SWT
-
31414473200 Screw. SWTScrew. SWT
