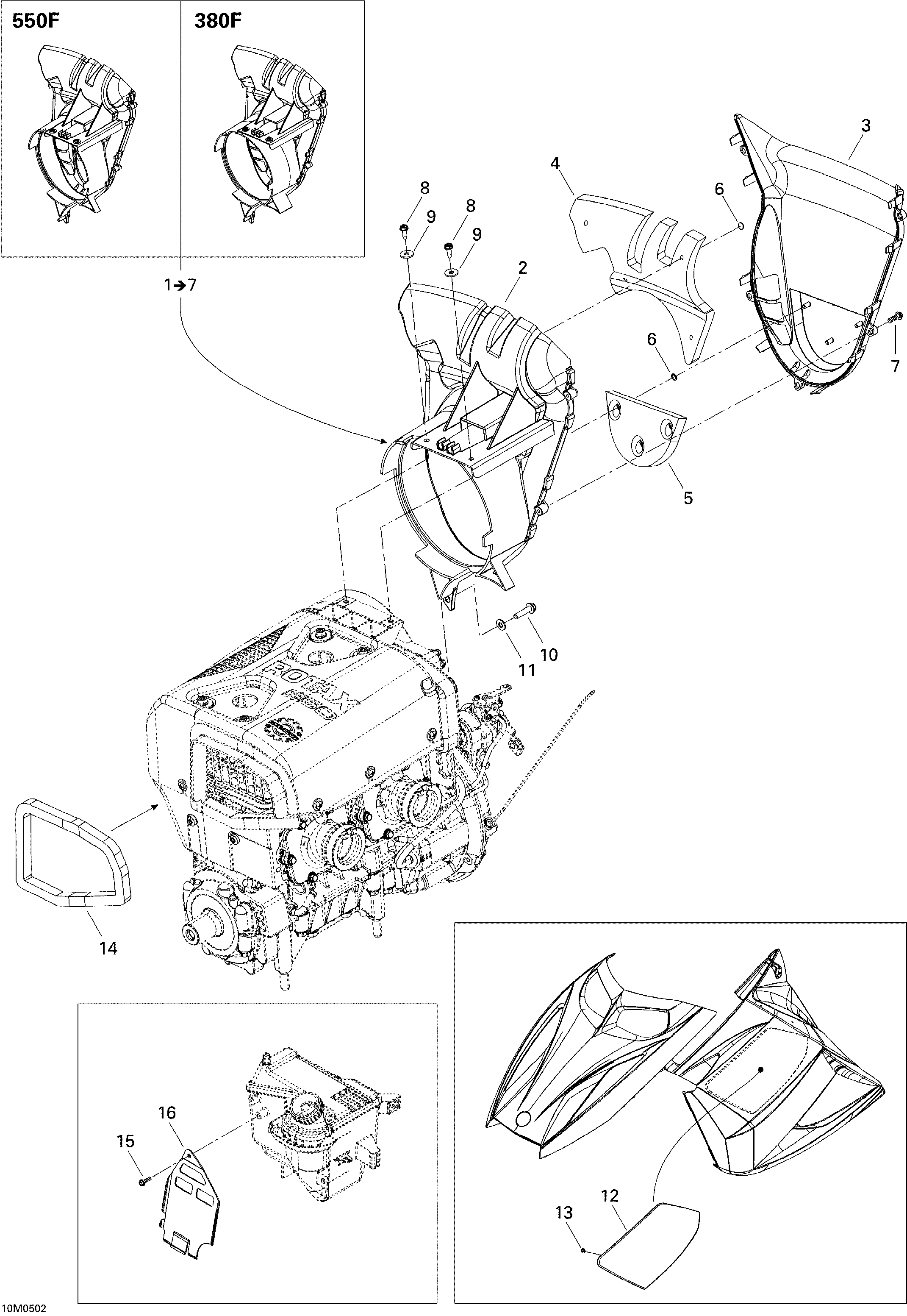

01- Cooling System GSX (380F) для BRP Ski-Doo GSX 380F - 2005
-
№АртикулНазвание
-
1509000321 Duct Inlet Ass'y. 380F, Includes 1 to 7Duct Inlet Ass'y. 380F, Includes 1 to 7
-
6389804300 Push NutPush Nut
-
7241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
8250000222 Slotted Indented Hex Screw #10 X 5/8Slotted Indented Hex Screw #10 X 5/8
-
9391301600 WasherWasher
-
10210262580 Hex Forming Screw M6 X 25Hex Forming Screw M6 X 25
-
11224061121 Flat WasherFlat Washer
-
12509000318 Air Outlet DeflectorAir Outlet Deflector
-
13732610072 Push NutPush Nut
-
14508000450 Engine FoamEngine Foam
-
15241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
16509000257 DeflectorDeflector
