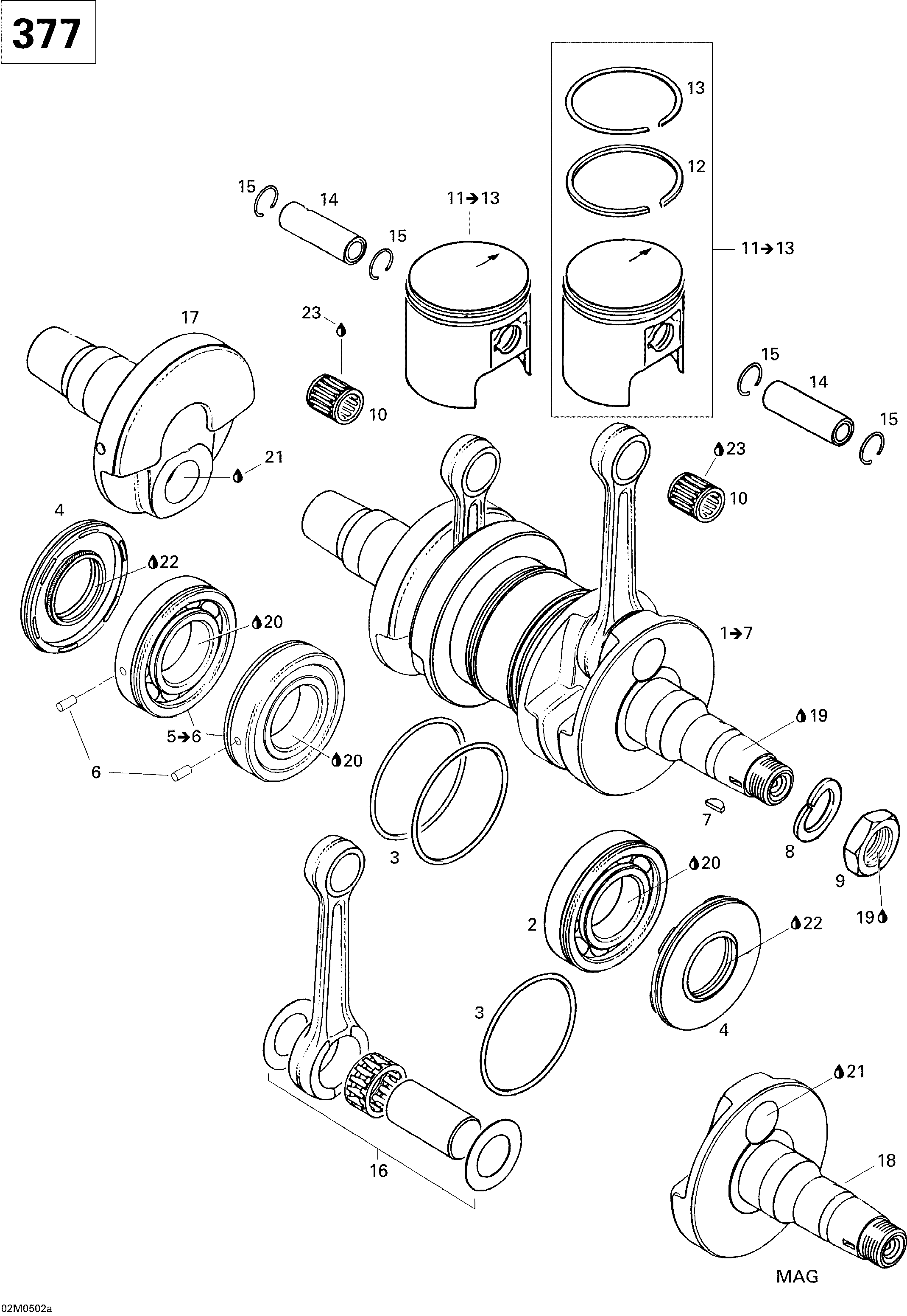

01- Crankshaft And Pistons 377 для BRP Ski-Doo GSX 380F - 2005

№

Артикул

Название
1

420889630 Crankshaft. Includes 1 to 7

Crankshaft. Includes 1 to 7

92 120 ₽
2

420832570 Ball Bearing 6207

Ball Bearing 6207

4 050 ₽
3

293300022 O-Ring 64 mm

O-Ring 64 mm

9 030 ₽
4

420831952 Oil Seal

Oil Seal

11 550 ₽
5

420832574 Ball Bearing 6207 Ass'Y. Includes 5 to 6

Ball Bearing 6207 Ass'Y. Includes 5 to 6

15 440 ₽
6

420929972 Dowel Pin

Dowel Pin

280 ₽
7

420246055 Woodruff Key

Woodruff Key

230 ₽
8

420945759 Lock Washer M22

Lock Washer M22

660 ₽
9

420842234 Hex Nut M22

Hex Nut M22

0 ₽
10

420932904 Needle Bearing

Needle Bearing

1 470 ₽
11

420890060 Piston Ass'y, 61.93 mm. Includes 11 to 13

Piston Ass'y, 61.93 mm. Includes 11 to 13

11 770 ₽
11

420890061 Piston 62.18 mm, 1st Oversize. Includes 11 to 13

Piston 62.18 mm, 1st Oversize. Includes 11 to 13

11 770 ₽
11

420890062 Piston 62.43 mm, 2nd Oversize. Includes 11 to 13

Piston 62.43 mm, 2nd Oversize. Includes 11 to 13

45 050 ₽
12

420915895 Rectangular Ring, 62.0 mm

Rectangular Ring, 62.0 mm

1 820 ₽
12

420915896 Rectangular Ring, 62.25 mm

Rectangular Ring, 62.25 mm

2 250 ₽
12

420915897 Rectangular Ring, 62.5 mm

Rectangular Ring, 62.5 mm

2 520 ₽
13

420215215 Semi-trapez Ring, 62.0 mm

Semi-trapez Ring, 62.0 mm

4 210 ₽
13

420215216 Semi-trapez Ring, 62.25 mm

Semi-trapez Ring, 62.25 mm

5 040 ₽
13

420215217 Semi-trapez Ring, 62.5 mm

Semi-trapez Ring, 62.5 mm

5 040 ₽
14

420916260 Gudgeon Pin

Gudgeon Pin

9 000 ₽
15

420945735 Piston Circlip

Piston Circlip

1 610 ₽
16

420889634 Rod Repair Kit

Rod Repair Kit

14 510 ₽
17

420818204 PTO Side Crankshaft

PTO Side Crankshaft

17 370 ₽
18

420819010 Mag Side Half-Crank

Mag Side Half-Crank

23 810 ₽
19

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
20

293800070 Loctite 767, Antiseize Lubricant, 8 Oz

Loctite 767, Antiseize Lubricant, 8 Oz

3 130 ₽
21

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
22

413707000 Molykote 111, 150 G

Molykote 111, 150 G

7 550 ₽
23

413802900 Injection Oil (12 X 1 Liter)

Injection Oil (12 X 1 Liter)

1 050 ₽
