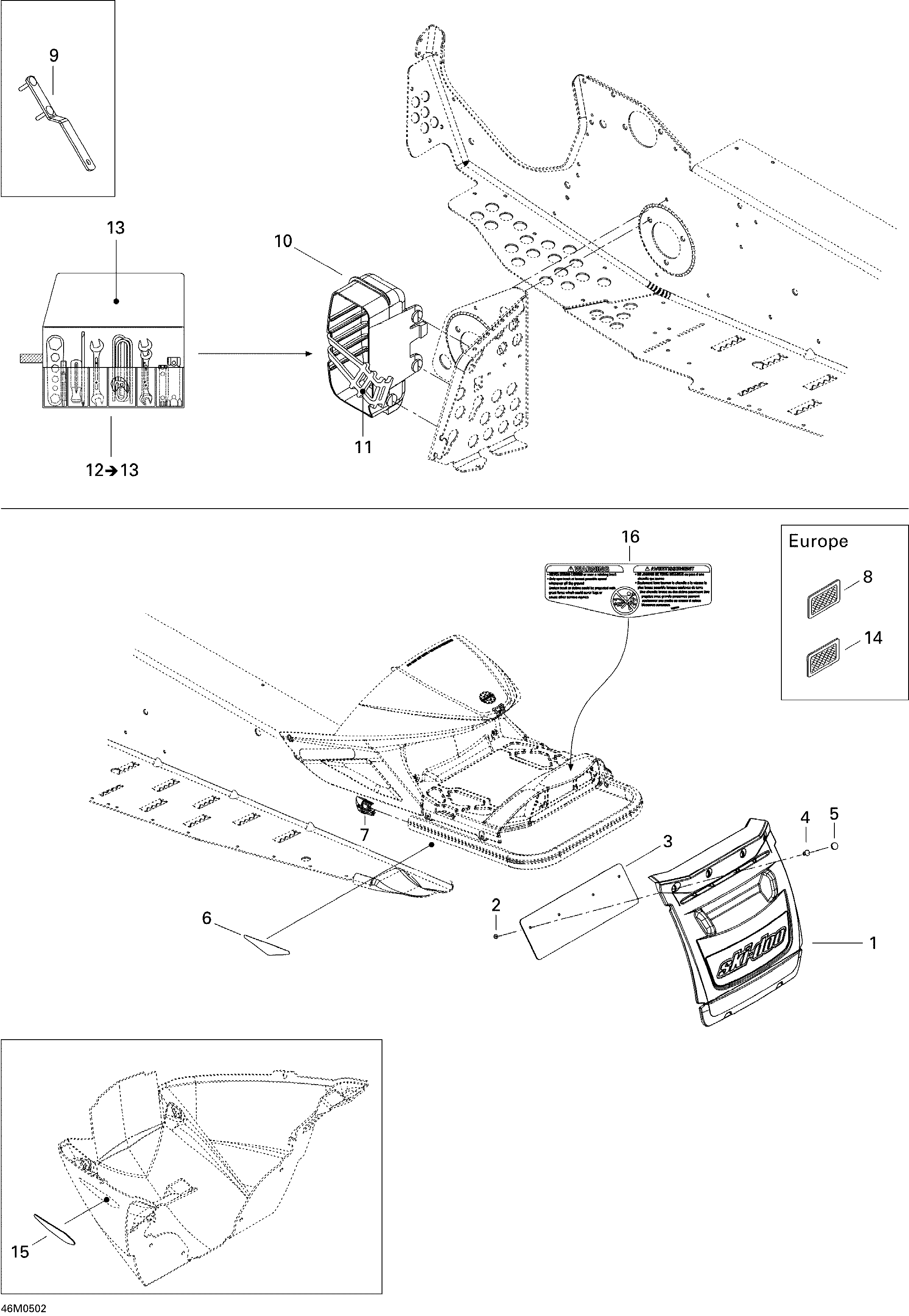

09- Utilities GSX для BRP Ski-Doo GSX 380F - 2005
-
№АртикулНазвание
-
1520000396 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000237 Rear Reflector (Red)Rear Reflector (Red)
-
6520000311 Rear Reflector (Amber). EuropeRear Reflector (Amber). Europe
-
7520000397 LH CapLH Cap
-
7520000398 RH CapRH Cap
-
8520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
9520000126 Adjustment WrenchAdjustment Wrench
-
10520000322 TrunkTrunk
-
11570069700 LatchLatch
-
12529035596 Tool Kit. Includes 12 to 13Tool Kit. Includes 12 to 13
-
13520000047 Tool BagTool Bag
-
14415037900 Reflector White (Europe). EuropeReflector White (Europe). Europe
-
15516001336 Front ReflectorFront Reflector
-
16516002661 Track Security Warning LabelTrack Security Warning Label
