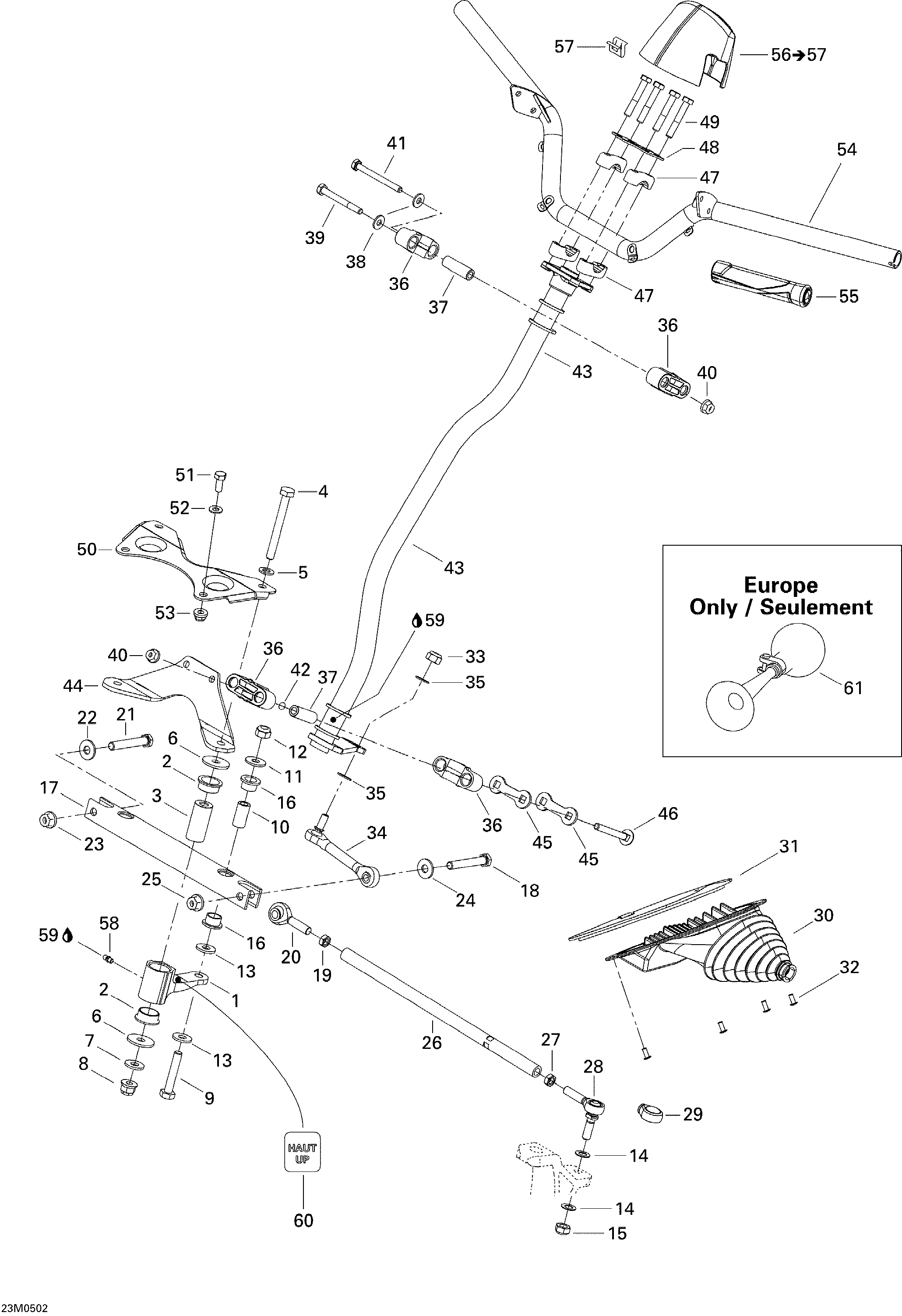

07- Steering System для BRP Ski-Doo GSX 550F - 2005
-
№АртикулНазвание
-
1506151627 RH Swivel ArmRH Swivel Arm
-
1506151628 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
16506150200 Bushing SwivelBushing Swivel
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
19250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
26506151340 Tie-RodTie-Rod
-
27732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
28506151811 Ball JointBall Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Rivet AvexRivet Avex
-
33232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
34506151621 Ball Joint (Double)Ball Joint (Double)
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
40233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506151917 Main TubeMain Tube
-
44506151330 Steering Shaft SupportSteering Shaft Support
-
45506150600 Stopper PlateStopper Plate
-
46207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
47506151622 Steering SupportSteering Support
-
48506151547 ReinforcementReinforcement
-
49250000082 Hex Screw With Nylon M8 X 50Hex Screw With Nylon M8 X 50
-
50506151536 Pivot SupportPivot Support
-
51207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
52234081410 Flat Washer 8 mmFlat Washer 8 mm
-
53233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
54506151667 HandlebarHandlebar
-
55506151532 GripGrip
-
56506151660 Cap. Includes 56 to 57Cap. Includes 56 to 57
-
57517302785 ClipClip
-
58408200700 Grease FittingGrease Fitting
-
59219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
60516001750 Haut/Up DecalHaut/Up Decal
-
61415040700 Horn (Europe)Horn (Europe)
