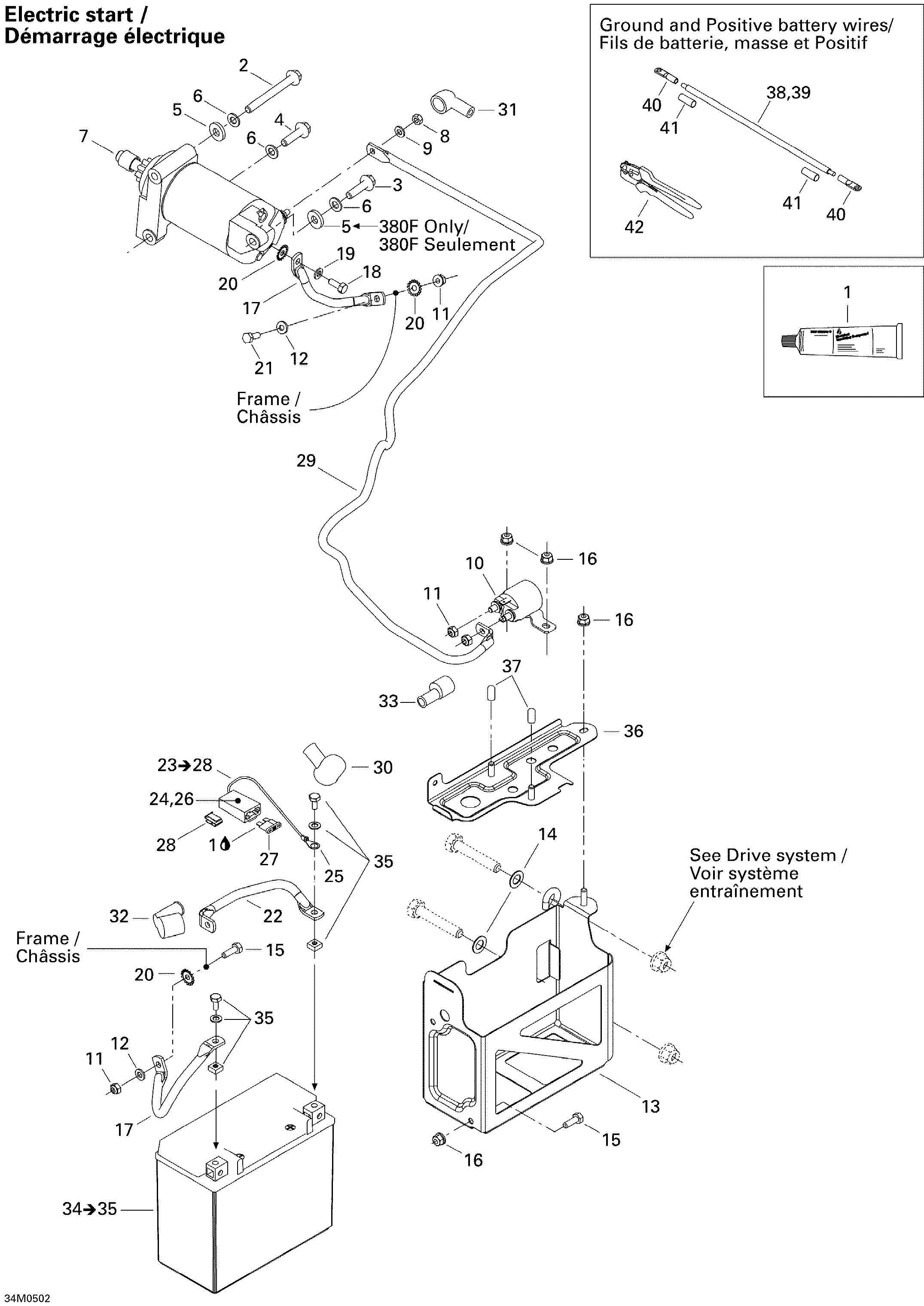

10- Battery And Starter GSX для BRP Ski-Doo GSX 550F - 2005
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2207588544 Hex Flanged Screw M8 X 85 (scotch Grip)Hex Flanged Screw M8 X 85 (scotch Grip)
-
3207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
4207583044 Hex Flanged Screw M8 X 30 (Scotch Grip)Hex Flanged Screw M8 X 30 (Scotch Grip)
-
5293050001 Flat Washer. 552FFlat Washer. 552F
-
6250200008 Flat Washer 8 mmFlat Washer 8 mm
-
7515176103 Electric Starter. 552FElectric Starter. 552F
-
8232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
9234061410 Flat Washer 6 mmFlat Washer 6 mm
-
10515176011 Starter RelayStarter Relay
-
11232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
12234061410 Flat Washer 6 mmFlat Washer 6 mm
-
13515176230 Battery Support BlackBattery Support Black
-
14503175800 WasherWasher
-
15207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
16233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
17515175749 Ground WireGround Wire
-
18207361644 Hex Screw M6 X 16 (Scotch Grip)Hex Screw M6 X 16 (Scotch Grip)
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20250200041 Serrated Lock Washer 6 mmSerrated Lock Washer 6 mm
-
21207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
23515175489 Battery Fuse Wire. Includes 23 to 28Battery Fuse Wire. Includes 23 to 28
-
24409004200 Female TerminalFemale Terminal
-
25278000992 Ring TerminalRing Terminal
-
26409004000 Fuse HolderFuse Holder
-
27410917200 Fuse (30 Amperes)Fuse (30 Amperes)
-
28409014200 ClipClip
-
30570151000 Protection CapProtection Cap
-
31278001771 Protector CapProtector Cap
-
32570064200 Protection CapProtection Cap
-
33515175919 Protector CapProtector Cap
-
34410301203 Battery 18 Amperes. Includes 34 to 35Battery 18 Amperes. Includes 34 to 35
-
35295500849 Battery Fastener KitBattery Fastener Kit
-
36515175735 Battery StripBattery Strip
-
37515176141 CapCap
-
38278001680 Ground Cable, Black (no 6) (meter)Ground Cable, Black (no 6) (meter)
-
39278001690 Positive Cable, Red (no 6) (meter)Positive Cable, Red (no 6) (meter)
-
40278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
40278001683 Terminal 45° (Small Hole)Terminal 45° (Small Hole)
-
40278001684 Terminal 90° (Small Hole)Terminal 90° (Small Hole)
-
40278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
40278001686 Terminal 45° (Big Hole)Terminal 45° (Big Hole)
-
40278001687 Terminal 90° (Big Hole)Terminal 90° (Big Hole)
-
40278001688 Flat TerminalFlat Terminal
-
40278001776 Terminal 30° (2 Holes)Terminal 30° (2 Holes)
-
41278001692 Heat ShrinkHeat Shrink
-
42529035730 Crimp PlierCrimp Plier
