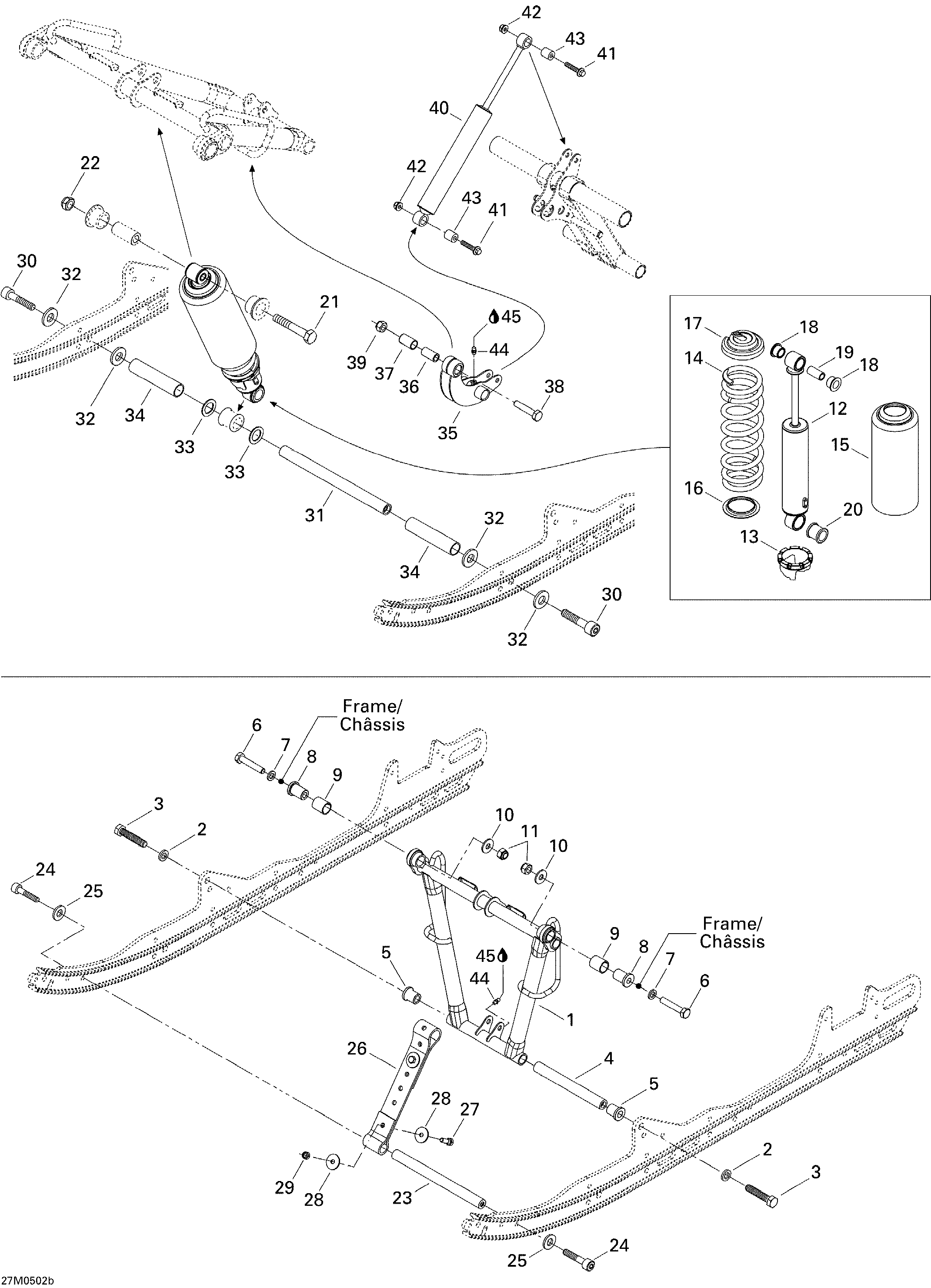

08- Front Arm GSX для BRP Ski-Doo GSX 550F - 2005
-
№АртикулНазвание
-
1503191071 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503190373 ExtensionExtension
-
9503190474 Extended BushingExtended Bushing
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503190317 Center ShockCenter Shock
-
13503183700 Cam 45°Cam 45°
-
14503189686 SpringSpring
-
15503188930 ProtectorProtector
-
16503187500 Spring GuideSpring Guide
-
17503140600 Spring StopperSpring Stopper
-
18503189117 CushionCushion
-
19503189282 BushingBushing
-
20503189271 CushionCushion
-
21207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
22233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23503189562 AxleAxle
-
24205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
25503189564 WasherWasher
-
26503190782 Stopper StrapStopper Strap
-
27207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
28224081301 Flat WasherFlat Washer
-
29233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
30205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
31503189272 Center Shock ShaftCenter Shock Shaft
-
32503189276 WasherWasher
-
33503189273 WasherWasher
-
34503189274 SpacerSpacer
-
35503189845 RockerRocker
-
36503189388 Rocker AxleRocker Axle
-
37503189626 CushionCushion
-
38207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
39233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
40503190312 Rear ShockRear Shock
-
41207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
42233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
43414936000 CushionCushion
-
44408200700 Grease FittingGrease Fitting
-
45219700417 Synthetic Grease, 400gSynthetic Grease, 400g
