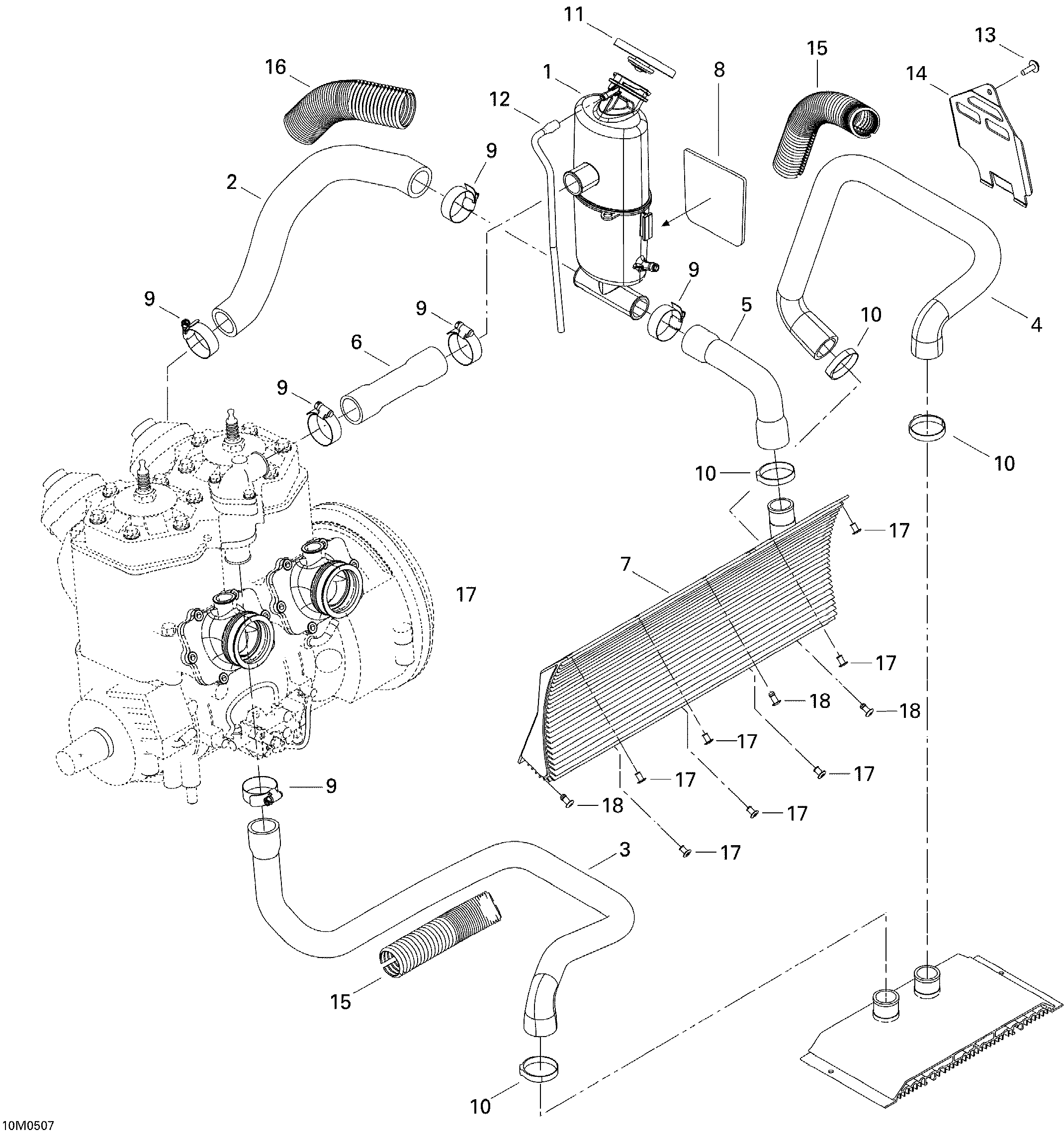

01- Cooling System для BRP Ski-Doo GSX 600 HO SDI - 2005
-
№АртикулНазвание
-
1509000324 Coolant TankCoolant Tank
-
2509000135 Engine Inlet HoseEngine Inlet Hose
-
3509000334 Engine Outlet HoseEngine Outlet Hose
-
4509000335 Engine Inlet HoseEngine Inlet Hose
-
5509000266 Radiator Outlet HoseRadiator Outlet Hose
-
6509000129 HoseHose
-
7518323903 Front RadiatorFront Radiator
-
8509000190 Refective SheetRefective Sheet
-
9408800400 Tridon Gear ClampTridon Gear Clamp
-
10509000181 Oetiker Gear ClampOetiker Gear Clamp
-
11509000187 Pressure CapPressure Cap
-
12415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
13241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
14509000257 DeflectorDeflector
-
15409902200 Tubing 25 mmTubing 25 mm
-
16515176260 Tubing 35mmTubing 35mm
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18390909100 Avex RivetAvex Rivet
