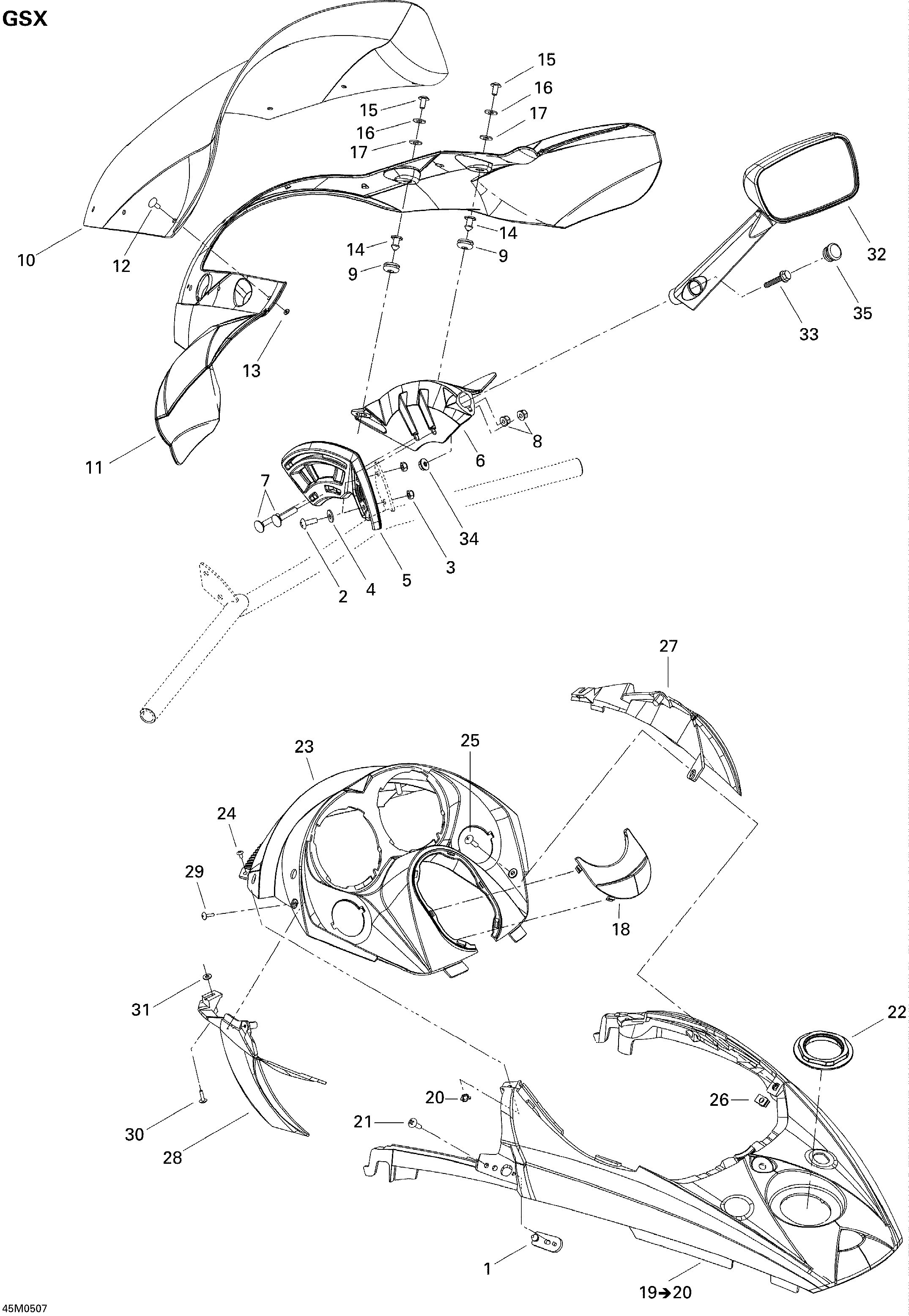

09- Windshield And Console для BRP Ski-Doo GSX 600 HO SDI - 2005
-
№АртикулНазвание
-
1517302616 Hood LatchHood Latch
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3250000135 Hex Nut M6Hex Nut M6
-
4517302736 Nylon WasherNylon Washer
-
5517303076 RH Fixing PlateRH Fixing Plate
-
5517303078 LH Fixing PlateLH Fixing Plate
-
6517303077 RH Windshield SupportRH Windshield Support
-
6517303079 LH Windshield SupportLH Windshield Support
-
7207763584 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
8233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
9517302841 GrommetGrommet
-
10517303094 WindshieldWindshield
-
11517302816 Air DeflectorAir Deflector
-
12517303070 Windshield DartWindshield Dart
-
13250100034 Push NutPush Nut
-
14517303439 KnobKnob
-
15250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
16250200025 Washer 5 mmWasher 5 mm
-
17250200024 Rubber Washer M5Rubber Washer M5
-
18517302592 Console CapConsole Cap
-
19517303097 Center Console, Silver B-243. LTD, Includes 19 to 20Center Console, Silver B-243. LTD, Includes 19 to 20
-
19517303098 Center Console, Black B-160. LTD, Includes 19 to 20Center Console, Black B-160. LTD, Includes 19 to 20
-
19517303101 Center Console, Black B-160. Sport, Includes 19 to 20Center Console, Black B-160. Sport, Includes 19 to 20
-
20250100030 T Flanged Nut, M4T Flanged Nut, M4
-
21250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
22517302575 Console NutConsole Nut
-
23517303327 Indicator Support. LTDIndicator Support. LTD
-
23517303471 Indicator Support. SportIndicator Support. Sport
-
24250000127 Torx Screw M4 X 8Torx Screw M4 X 8
-
25250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
26250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
27517302546 RH Air DeflectorRH Air Deflector
-
28517302547 LH Air DeflectorLH Air Deflector
-
29250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
30250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
31234042600 Flat Washer 4 mmFlat Washer 4 mm
-
32517302449 RH MirrorRH Mirror
-
32517302450 LH MirrorLH Mirror
-
33207664044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
34233261494 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35517302716 Mirror CapMirror Cap
