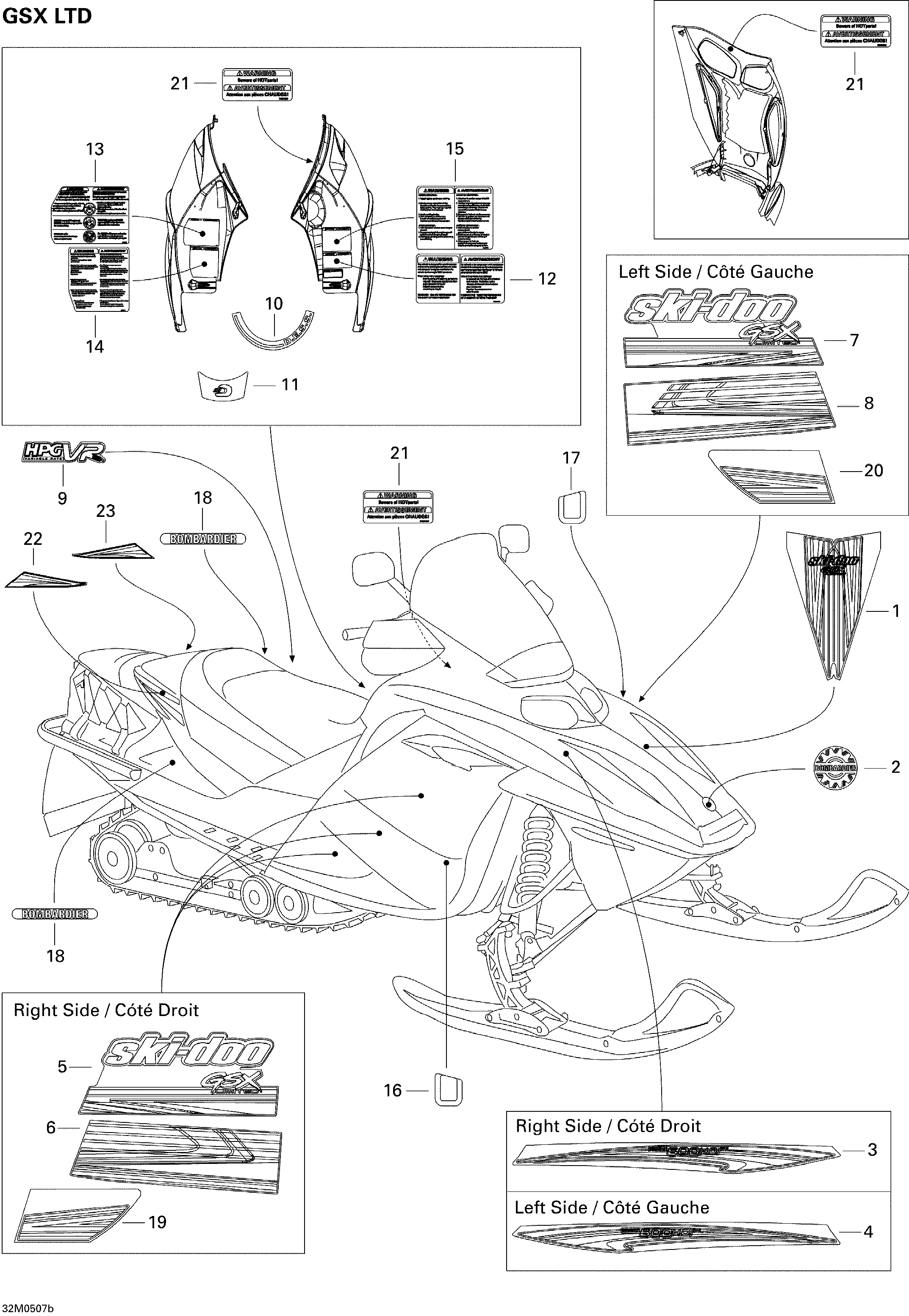

09- Decals LTD для BRP Ski-Doo GSX 600 HO SDI - 2005
-
№АртикулНазвание
-
1516002199 Hood Decal. Black, B-160Hood Decal. Black, B-160
-
1516002200 Hood Decal. Silver, B-243Hood Decal. Silver, B-243
-
2516000983 Logo BombardierLogo Bombardier
-
3516002201 RH Hood Decal, 600 H.o. SDI. Black, B-160RH Hood Decal, 600 H.o. SDI. Black, B-160
-
3516002205 RH Hood Decal, 600 H.o. SDI. Silver, B-243RH Hood Decal, 600 H.o. SDI. Silver, B-243
-
4516002202 LH Hood Decal, 600 H.o. SDI. Black, B-160LH Hood Decal, 600 H.o. SDI. Black, B-160
-
4516002206 LH Hood Decal, 600 H.o. SDI. Silver, B-243LH Hood Decal, 600 H.o. SDI. Silver, B-243
-
5516002209 RH Side Decal. Black, B-160RH Side Decal. Black, B-160
-
5516002211 RH Side Decal. Labrador Blue, B-226RH Side Decal. Labrador Blue, B-226
-
6516002213 RH Lower Side Decal. Black, B-160RH Lower Side Decal. Black, B-160
-
6516002215 RH Lower Side Decal. Labrador Blue, B-226RH Lower Side Decal. Labrador Blue, B-226
-
7516002210 LH Side Decal, B-160. Black, B-160LH Side Decal, B-160. Black, B-160
-
7516002212 LH Side Decal. Labrador Blue, B-226LH Side Decal. Labrador Blue, B-226
-
8516002214 LH Lower Side Decal. Black, B-160LH Lower Side Decal. Black, B-160
-
8516002216 LH Lower Side Decal. Labrador Blue, B-226LH Lower Side Decal. Labrador Blue, B-226
-
9516001730 Decal SuspensionDecal Suspension
-
10516001335 Dess DecalDess Decal
-
11516001775 Visor DecalVisor Decal
-
12516002672 Label Security, Passenger NumberLabel Security, Passenger Number
-
13516002641 Label Security, GeneralLabel Security, General
-
14516002671 Label Security, FamiliarizationLabel Security, Familiarization
-
15516002642 Label Security, StartingLabel Security, Starting
-
16516001910 RH Protector DecalRH Protector Decal
-
17516001911 LH Protector DecalLH Protector Decal
-
18516001982 Decal Bombardier. Black, B-160Decal Bombardier. Black, B-160
-
18516001983 Decal Bombardier. Labrador Blue, B-226Decal Bombardier. Labrador Blue, B-226
-
19516002218 RH Rear Lower Side Decal. Black, B-160RH Rear Lower Side Decal. Black, B-160
-
19516002220 RH Rear Lower Side Decal. Labrador Blue, B-226RH Rear Lower Side Decal. Labrador Blue, B-226
-
20516002219 LH Rear Lower Side Decal. Black, B-160LH Rear Lower Side Decal. Black, B-160
-
20516002221 LH Rear Lower Side Decal. Labrador Blue, B-226LH Rear Lower Side Decal. Labrador Blue, B-226
-
21516002664 Security LabelSecurity Label
-
22516002222 RH Cover Decal. Black, B-160RH Cover Decal. Black, B-160
-
22516002224 RH Cover Decal. Labrador Blue, B-226RH Cover Decal. Labrador Blue, B-226
-
23516002223 LH Cover Decal. Black, B-160LH Cover Decal. Black, B-160
-
23516002225 LH Cover Decal. Labrador Blue, B-226LH Cover Decal. Labrador Blue, B-226
