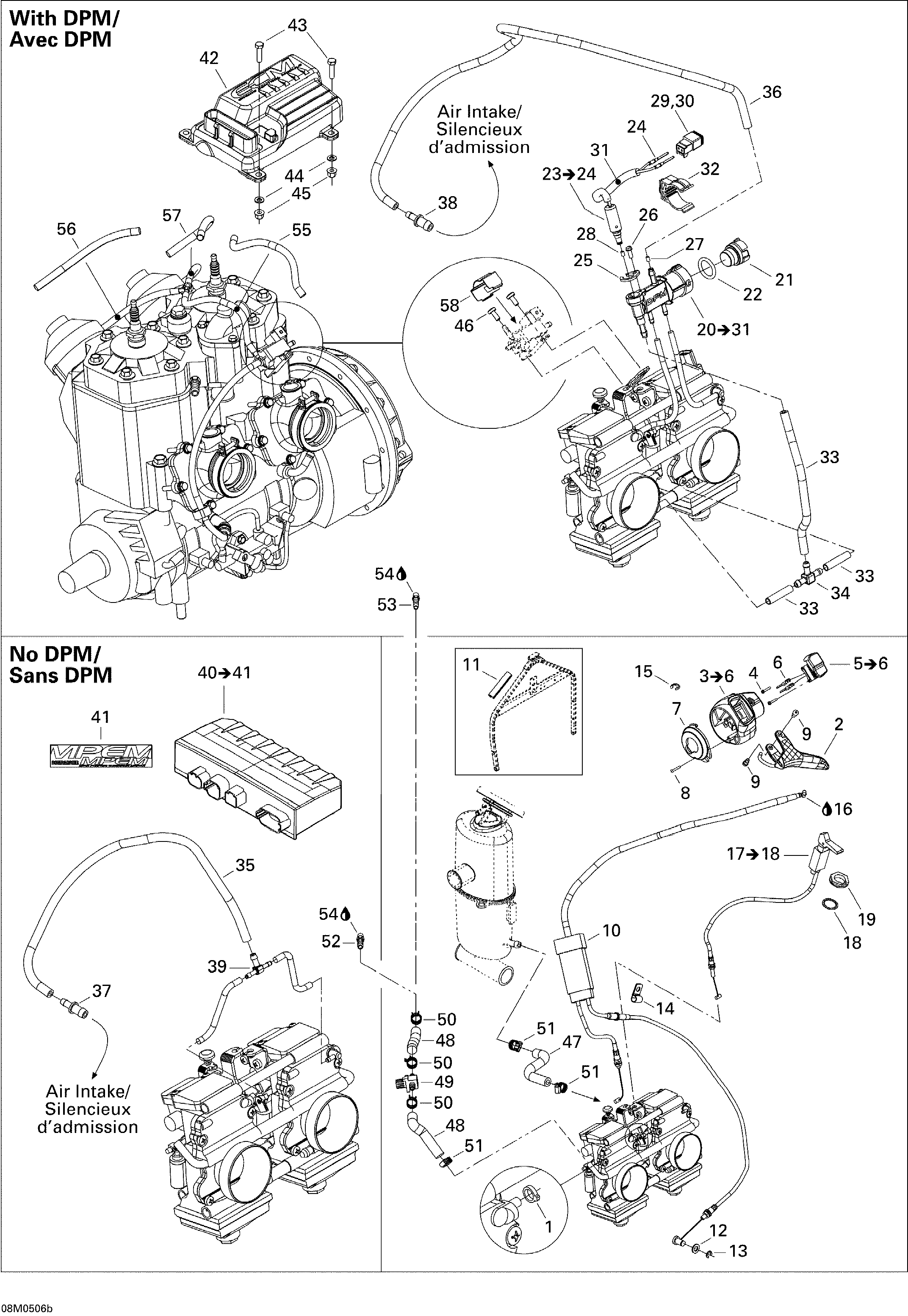

01- Engine, 600HO для BRP Ski-Doo GSX 600 HO - 2005
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2512059766 Handle Ass'Y (28 mm)Handle Ass'Y (28 mm)
-
3512059697 Housing Throttle Ass'y. Includes 3 to 6Housing Throttle Ass'y. Includes 3 to 6
-
4250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
5415128683 Kill Switch. Includes 5 to 6Kill Switch. Includes 5 to 6
-
6515175232 Male TerminalMale Terminal
-
7512059698 CoverCover
-
8250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
9732601143 Flanged ScrewFlanged Screw
-
10512059856 Throttle CableThrottle Cable
-
11512059750 ProtectorProtector
-
12234081100 Flat Washer 8 mmFlat Washer 8 mm
-
13414753500 CirclipCirclip
-
14414176000 Clip, CableClip, Cable
-
15414274500 CirclipCirclip
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17512059266 Choke Cable. Includes 17 to 18Choke Cable. Includes 17 to 18
-
18394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
19512059094 Plastic NutPlastic Nut
-
35415080200 Line. No DPMLine. No DPM
-
37293710035 Straight Fitting. No DPMStraight Fitting. No DPM
-
39572045500 T-Connector. No DPMT-Connector. No DPM
-
40512059852 Calibrated Module. Includes 40 to 41 / 600 H.O.Calibrated Module. Includes 40 to 41 / 600 H.O.
-
41516000245 Electrical Box DecalElectrical Box Decal
-
47509000171 HoseHose
-
48509000093 Hose 8 mmHose 8 mm
-
49512059324 Valve 5/16''Valve 5/16''
-
50414655700 Spring ClampSpring Clamp
-
51293650170 Tridon Hose ClampTridon Hose Clamp
-
52293710082 Straight Fitting. No DPMStraight Fitting. No DPM
-
54293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
