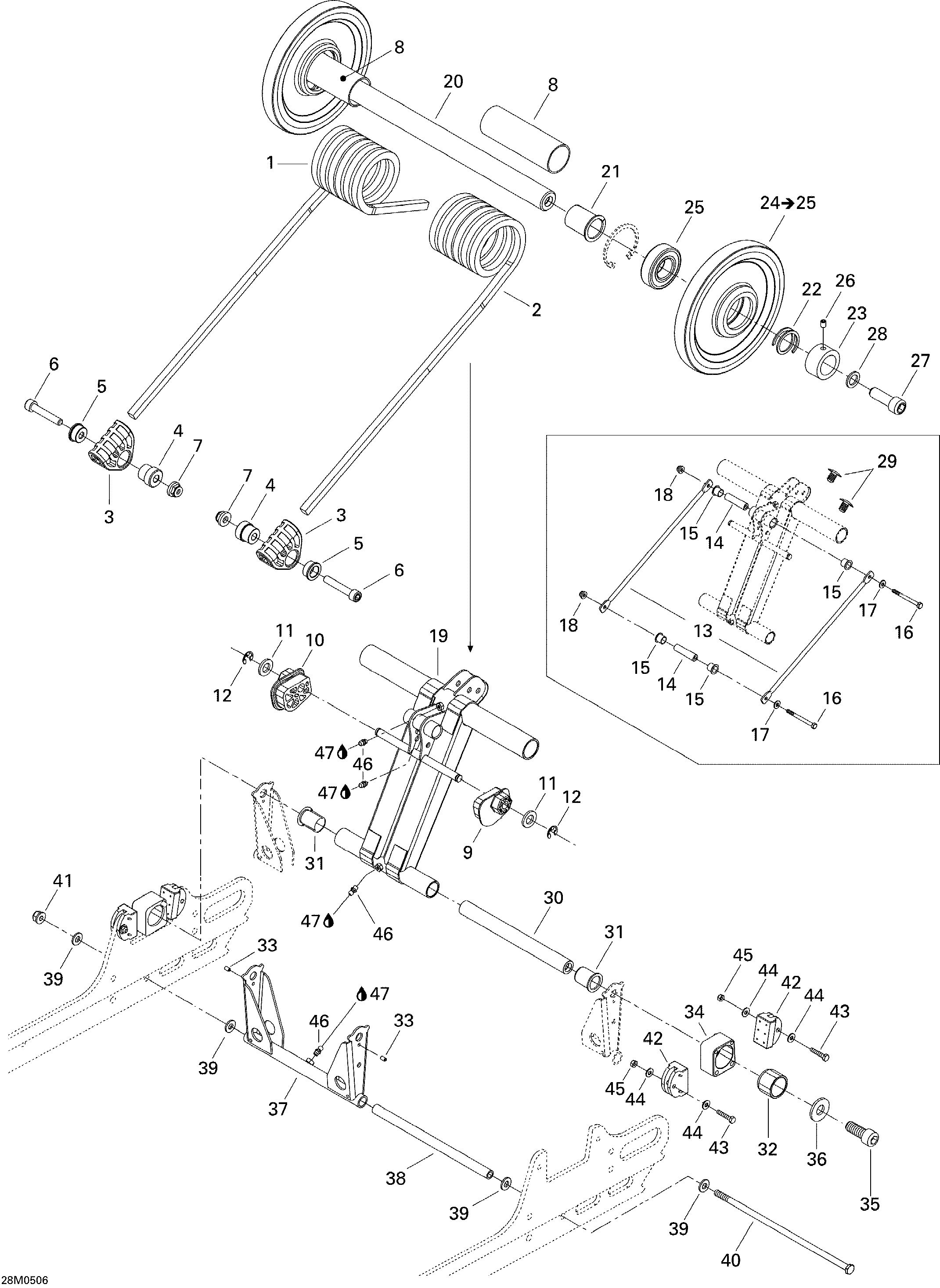

08- Rear Arm 600HO для BRP Ski-Doo GSX 600 HO - 2005
-
№АртикулНазвание
-
1503190712 RH Spring. SportRH Spring. Sport
-
2503190714 LH Spring. SportLH Spring. Sport
-
3503189657 Spring SupportSpring Support
-
4503188934 Spring Guide AxleSpring Guide Axle
-
5503188929 Cushion RetainerCushion Retainer
-
6205084544 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
7233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
8503189105 Plastic BushingPlastic Bushing
-
9503190023 LH Cam AdjusterLH Cam Adjuster
-
10503190022 RH Cam AdjusterRH Cam Adjuster
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12293370013 E-CirclipE-Circlip
-
13503189726 Throttle RodThrottle Rod
-
14503189815 Axle RodAxle Rod
-
15506150200 Bushing SwivelBushing Swivel
-
16207088544 Hex Screw M8 X 85Hex Screw M8 X 85
-
17224081201 Flat WasherFlat Washer
-
18233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
19503191060 Rear ArmRear Arm
-
20503189412 Upper AxleUpper Axle
-
21503189288 CushionCushion
-
22503189146 Axle SpringAxle Spring
-
23503189147 Retainer RingRetainer Ring
-
24503190816 Wheel 165. Includes 24 to 25Wheel 165. Includes 24 to 25
-
25503190795 Ball BearingBall Bearing
-
26206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
27205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
28503189276 WasherWasher
-
29414644300 DartDart
-
30503189413 Rear Lower AxleRear Lower Axle
-
31503189286 CushionCushion
-
32503189488 Block GuideBlock Guide
-
33250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
34503189152 LH BlockLH Block
-
34503189170 RH BlockRH Block
-
35205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
36503189276 WasherWasher
-
37503189819 Pivot ArmPivot Arm
-
38503189156 Pivot Arm AxlePivot Arm Axle
-
39503189157 WasherWasher
-
40732601198 Long Bolt M8Long Bolt M8
-
41233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
42503189608 Rubber StopperRubber Stopper
-
43207053044 Hex Screw M5 X 30Hex Screw M5 X 30
-
44250200016 WasherWasher
-
45232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
46408200700 Grease FittingGrease Fitting
-
47219700417 Synthetic Grease, 400gSynthetic Grease, 400g
