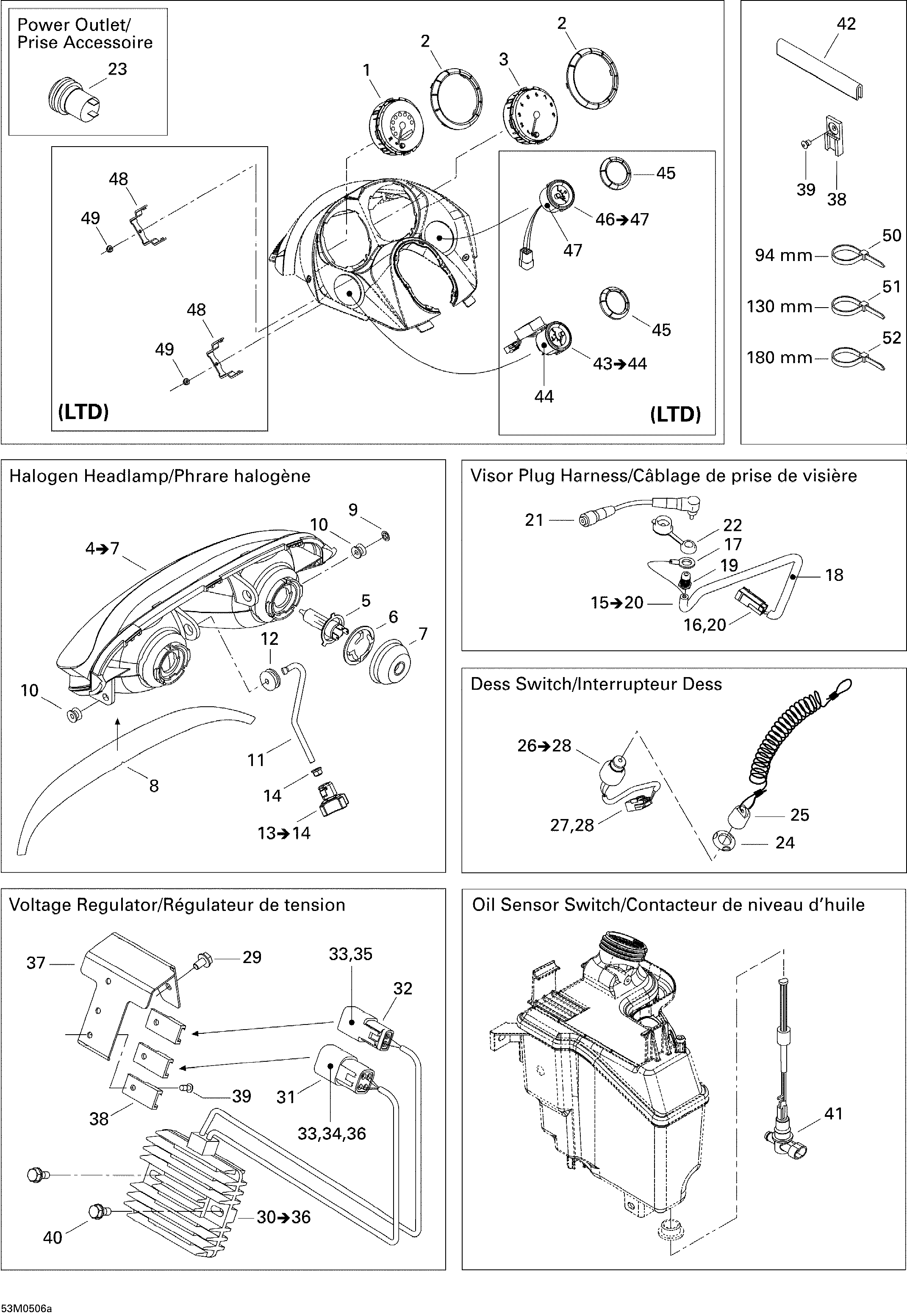

10- Electrical Accessories 1 (600HO) для BRP Ski-Doo GSX 600 HO - 2005
-
№АртикулНазвание
-
1515176263 Speedometer. No DPMSpeedometer. No DPM
-
2515176180 Gauge Ring. SeashoreGauge Ring. Seashore
-
2515176242 Gauge Ring. Full MoonGauge Ring. Full Moon
-
3515176275 TachometerTachometer
-
4515176273 Halogen Headlamp Ass'y. Includes 4 to 7Halogen Headlamp Ass'y. Includes 4 to 7
-
5515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
6515175910 Bulb HolderBulb Holder
-
7515175911 CoverCover
-
8516001328 Headlamp DecalHeadlamp Decal
-
9732610072 Push NutPush Nut
-
10515175760 Headlamp BushingHeadlamp Bushing
-
11515175521 Adjuster RodAdjuster Rod
-
12415100800 GrommetGrommet
-
13515175975 Handle. Includes 13 to 14Handle. Includes 13 to 14
-
14233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
15515175799 Visor Plug Harness. Includes 15 to 20Visor Plug Harness. Includes 15 to 20
-
16515175232 Male TerminalMale Terminal
-
17515175172 Open BarrelOpen Barrel
-
18515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
19415096100 Visor PlugVisor Plug
-
20515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
21515175851 ExtensionExtension
-
22572103300 CapCap
-
24278000508 NutNut
-
25515166900 Dess CapDess Cap
-
26515175797 Dess SwitchDess Switch
-
27515175232 Male TerminalMale Terminal
-
28515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
29210261080 Hex Forming Screw M6 X 10Hex Forming Screw M6 X 10
-
30515175968 Voltage RegulatorVoltage Regulator
-
31278001477 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
32278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
33515175568 Male TerminalMale Terminal
-
34278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
35278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
36293000052 Sealing CapSealing Cap
-
37515176191 Housing SupportHousing Support
-
38515175917 ClipClip
-
39293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
40210262080 Hex Forming Screw M6 X 20Hex Forming Screw M6 X 20
-
41515176016 Oil Level SensorOil Level Sensor
-
42509000263 TrimTrim
-
51293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
52414115200 Tie-Rap 180 mmTie-Rap 180 mm
