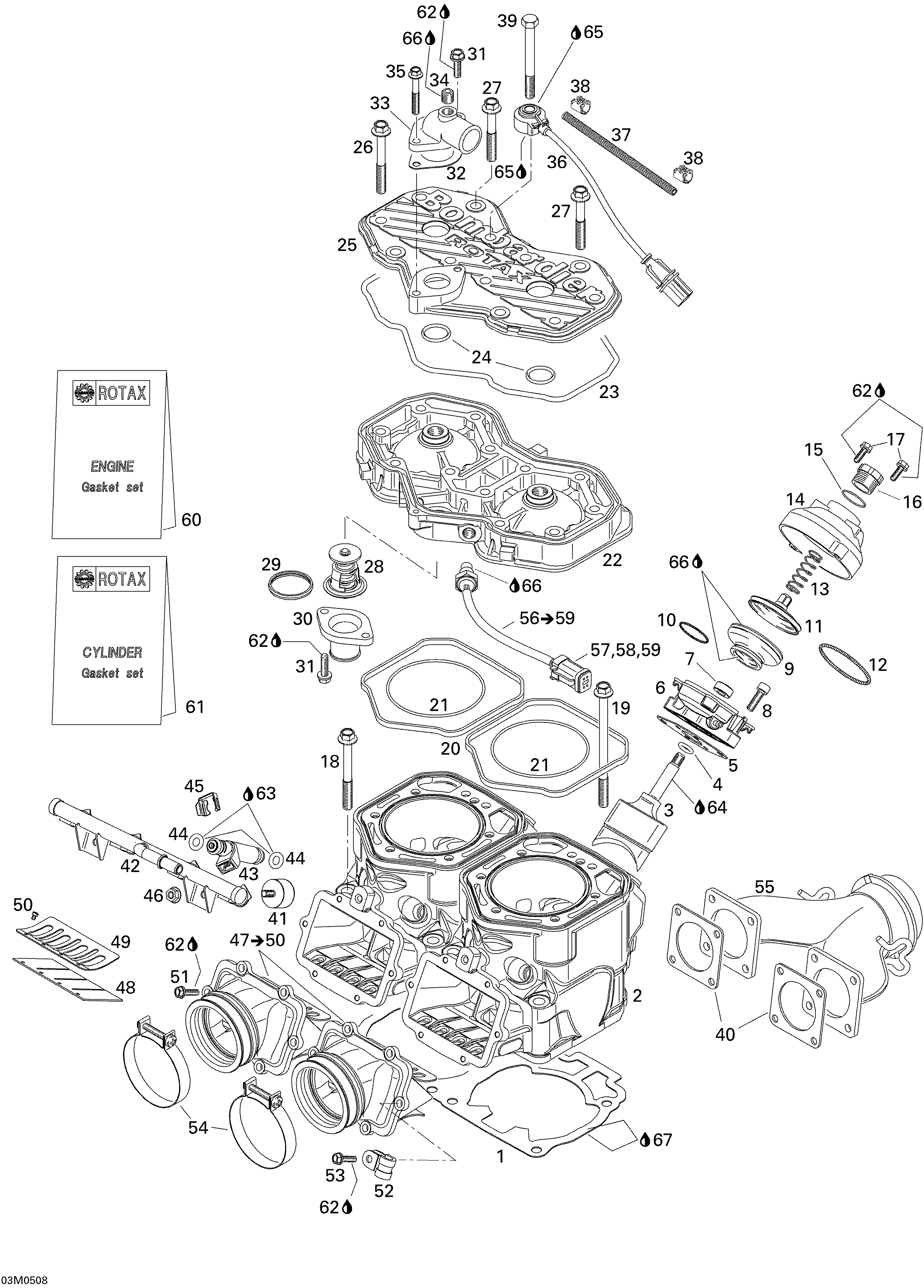

01- Cylinder, Exhaust Manifold And Reed Valve для BRP Ski-Doo GTX 600 HO SDI - 2005
-
№АртикулНазвание
-
1420931893 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420931892 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931894 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420931895 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420613944 Cylinder Ho SDICylinder Ho SDI
-
3420854650 Exhaust ValveExhaust Valve
-
4420430110 O-RingO-Ring
-
5420931542 GasketGasket
-
6420854454 Valve HousingValve Housing
-
7420950730 Oil SealOil Seal
-
8205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
9420260729 BellowsBellows
-
10420838255 Hose SpringHose Spring
-
11420854449 Exhaust ValveExhaust Valve
-
12420939280 Hose SpringHose Spring
-
13420239942 SpringSpring
-
14420911558 Valve CoverValve Cover
-
15420430220 O-RingO-Ring
-
16420241221 Adjuster ScrewAdjuster Screw
-
17420241270 Taptite Screw M5 X 25Taptite Screw M5 X 25
-
18420640524 Hex Collar ScrewHex Collar Screw
-
19420640534 Hex Collar ScrewHex Collar Screw
-
20420931590 Rubber RingRubber Ring
-
21293300026 O-RingO-Ring
-
22420613702 Cylindre HeadCylindre Head
-
23420950320 O-RingO-Ring
-
24420430782 O-RingO-Ring
-
25420923460 Cylinder Head Cover, SilverCylinder Head Cover, Silver
-
26420841306 Hex Collar Screw M8 X 65Hex Collar Screw M8 X 65
-
27420941621 Hex Collar Screw M8 X 56.5Hex Collar Screw M8 X 56.5
-
28420922518 ThermostateThermostate
-
29420931272 Sealing RingSealing Ring
-
30420922025 Bent Outlet SocketBent Outlet Socket
-
31420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
32420850338 GasketGasket
-
33420922062 Bent Outlet SocketBent Outlet Socket
-
34420822340 Hose NippleHose Nipple
-
35420941451 Hex Collar Screw M6 X 40Hex Collar Screw M6 X 40
-
36270000484 Noise SensorNoise Sensor
-
37420460010 TubeTube
-
38420960890 ClipClip
-
39420941221 Hex Screw M8 X 80Hex Screw M8 X 80
-
40420850552 GasketGasket
-
41420960065 StopperStopper
-
42420874490 Rail FuelRail Fuel
-
43420874485 Fuel InjectorsFuel Injectors
-
44420631220 O-RingO-Ring
-
45420851800 ClipClip
-
46420442172 NutNut
-
47420867260 Socket Carburetor. Inclusdes 47 to 50Socket Carburetor. Inclusdes 47 to 50
-
48420924680 Reed PedalReed Pedal
-
49420924695 Reed Pedal StopReed Pedal Stop
-
50420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
51420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
52420851115 Cable ClampCable Clamp
-
53420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
54420851065 ClampClamp
-
55420673072 ManifoldManifold
-
56515176043 Temperature Sensor. Includes 56 to 59Temperature Sensor. Includes 56 to 59
-
57278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
58278000632 Female TerminalFemale Terminal
-
59515175677 Lock Female, 4 CircuitsLock Female, 4 Circuits
-
60420889922 Engine Gasket SetEngine Gasket Set
-
61420889926 Cylindre Gasket SetCylindre Gasket Set
-
62293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
63413707000 Molykote 111, 150 GMolykote 111, 150 G
-
65293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
66420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
67293800038 Loctite 518, 50 mlLoctite 518, 50 ml
