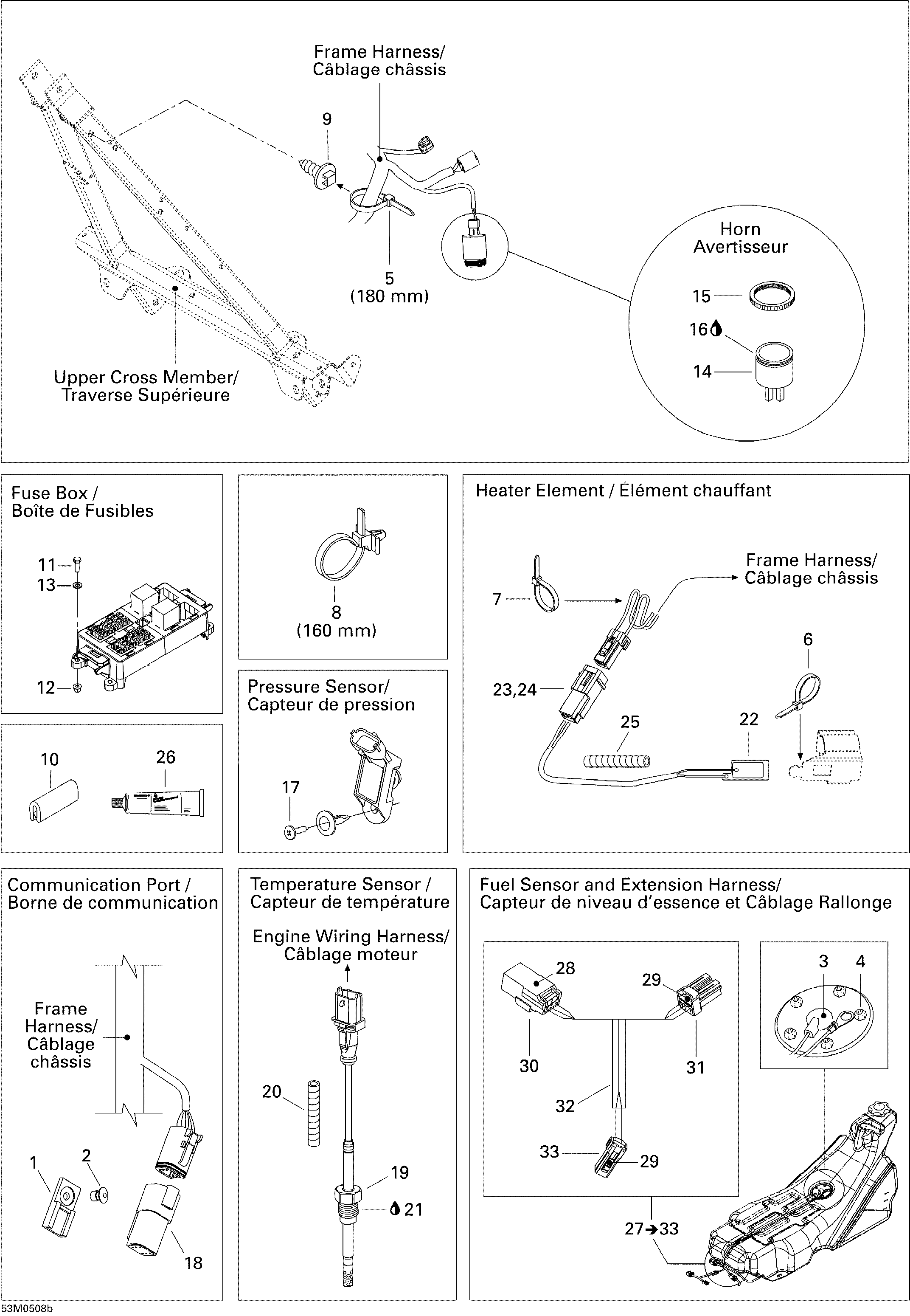

10- Electrical Accessories 2 для BRP Ski-Doo GTX 600 HO SDI - 2005
-
№АртикулНазвание
-
1515175917 ClipClip
-
2293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
3515176213 Fuel Level Sensor. LTDFuel Level Sensor. LTD
-
4232551414 Elastic Stop Nut M5. LTDElastic Stop Nut M5. LTD
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
8293750009 Tie Rap 160 mmTie Rap 160 mm
-
9293730018 Dart MountDart Mount
-
10271000110 Protector TrimProtector Trim
-
11207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
12233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
13234051410 Flat WasherFlat Washer
-
14515176035 HornHorn
-
15414805101 Plastic NutPlastic Nut
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17414745900 Phillips ScrewPhillips Screw
-
18515176234 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
19515176132 Temperature SensorTemperature Sensor
-
20515175442 Tubing, 6 mmTubing, 6 mm
-
21293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
22515176256 HeaterHeater
-
23515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
24515175232 Male TerminalMale Terminal
-
25515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
26293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
27515176171 Extension Harness. Includes 27 to 33Extension Harness. Includes 27 to 33
-
28515175232 Male TerminalMale Terminal
-
29515175231 Female TerminalFemale Terminal
-
30515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
31515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
32515175442 Tubing, 6 mmTubing, 6 mm
-
33515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
