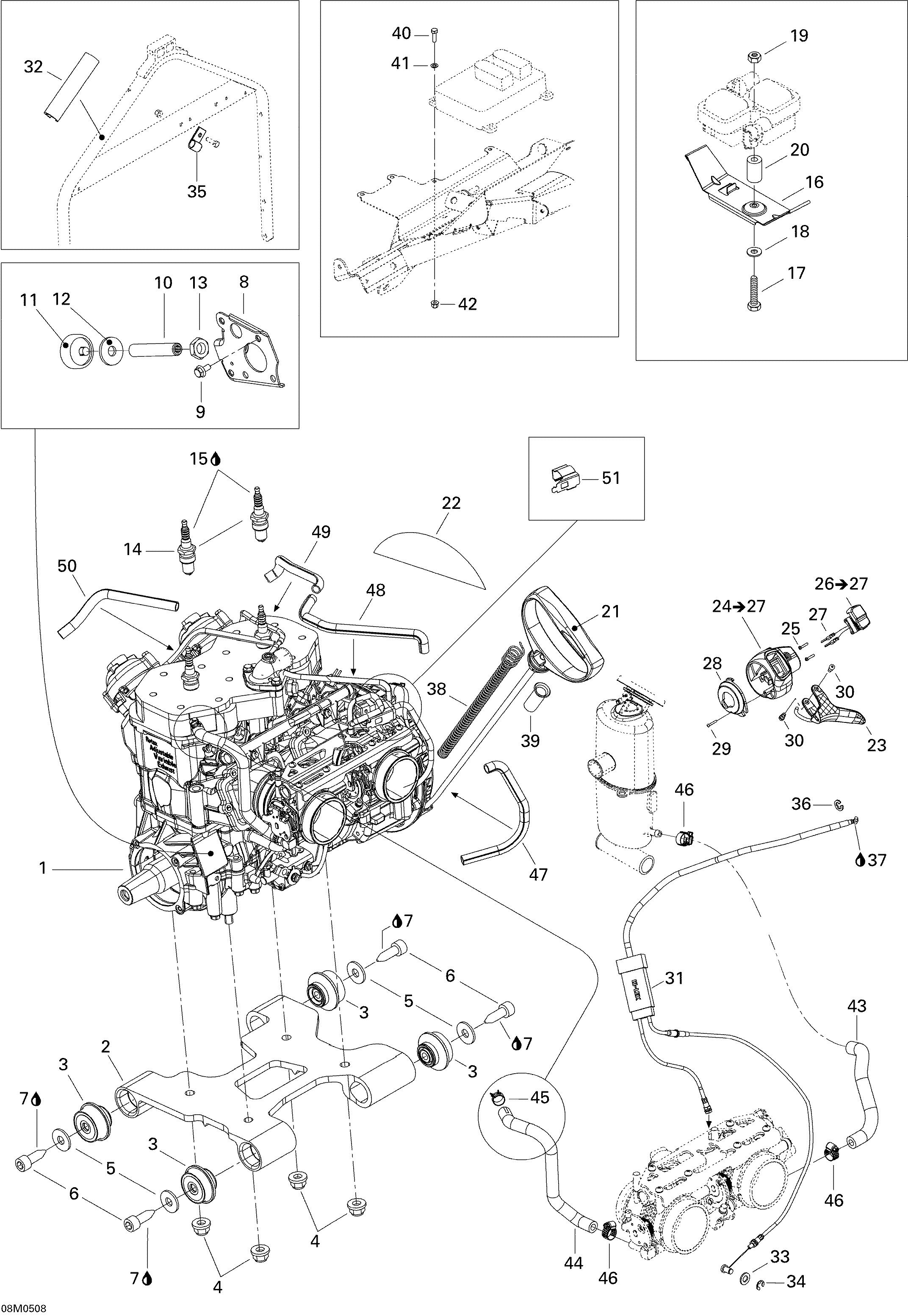

01- Engine And Engine Support для BRP Ski-Doo GTX 600 HO SDI - 2005
-
№АртикулНазвание
-
1400509758 Engine 593 Ass'yEngine 593 Ass'y
-
2512059754 Engine SupportEngine Support
-
3512059691 Rubber MountRubber Mount
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5506151251 WasherWasher
-
6250000094 Screw M10 X 30Screw M10 X 30
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059840 PlatePlate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10250500007 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
14415128524 Spark Plug (Br9Ecs)Spark Plug (Br9Ecs)
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16512059865 Coil SupportCoil Support
-
17207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
18234061410 Flat Washer 6 mmFlat Washer 6 mm
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20512059812 SpacerSpacer
-
21572084400 Starter GripStarter Grip
-
22512059893 Reflective SheetReflective Sheet
-
23512059891 Handle Ass'YHandle Ass'Y
-
24512060001 Housing Throttle Ass'y. Includes 25 to 28Housing Throttle Ass'y. Includes 25 to 28
-
25250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
26415128683 Kill SwitchKill Switch
-
27515175232 Male TerminalMale Terminal
-
28512059698 CoverCover
-
29250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
30732601143 Flanged ScrewFlanged Screw
-
31512059878 Throttle CableThrottle Cable
-
32512059750 ProtectorProtector
-
33234081100 Flat Washer 8 mmFlat Washer 8 mm
-
34414753500 CirclipCirclip
-
35414176000 Clip, CableClip, Cable
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059535 Rope GuideRope Guide
-
39512059536 TubeTube
-
40207152044 Hex Screw M5 X 20Hex Screw M5 X 20
-
41234051410 Flat WasherFlat Washer
-
42233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
43512059563 Formed HoseFormed Hose
-
44512059990 Formed HoseFormed Hose
-
45513033029 Spring ClampSpring Clamp
-
46293650170 Tridon Hose ClampTridon Hose Clamp
-
47409901700 Tubing, 9 mmTubing, 9 mm
-
48409901700 Tubing, 9 mmTubing, 9 mm
-
49409901700 Tubing, 9 mmTubing, 9 mm
-
50409901700 Tubing, 9 mmTubing, 9 mm
-
51512059809 Heating Element BracketHeating Element Bracket
