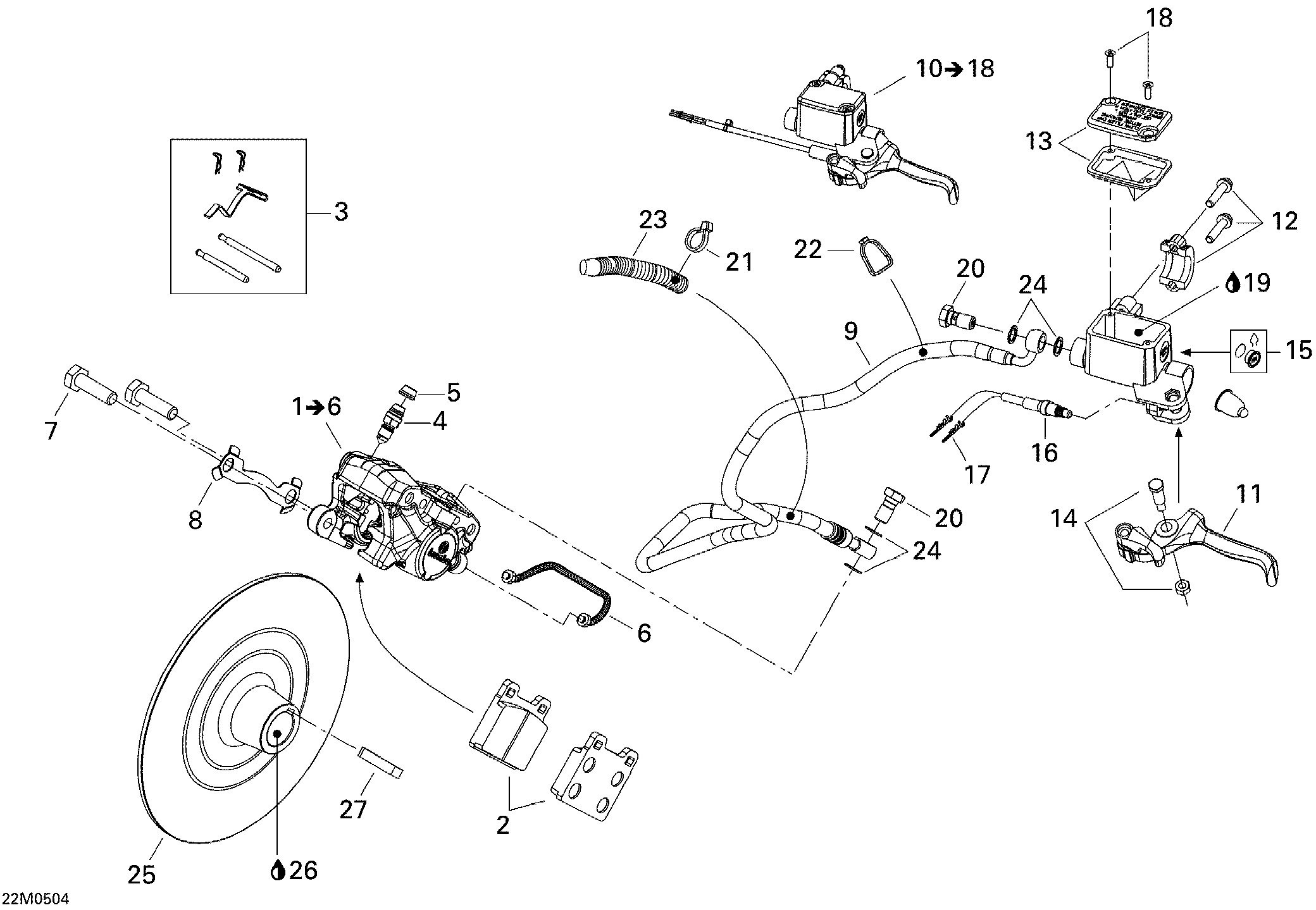

06- Hydraulic Brake 600HO для BRP Ski-Doo GTX 600 HO - 2005
-
№АртикулНазвание
-
1507032416 Caliper. GTX Sport 500SS & 600 H.O.Caliper. GTX Sport 500SS & 600 H.O.
-
2415053600 Brake Lining Kit. GTX Sport 500SS & 600 H.O.Brake Lining Kit. GTX Sport 500SS & 600 H.O.
-
3415128865 Kit (pins, Retainers, Spring)Kit (pins, Retainers, Spring)
-
4414989800 Bleeder ScrewBleeder Screw
-
5414989700 BootBoot
-
6414989900 Rigid TubingRigid Tubing
-
7207103544 Hex Screw M10 X 35Hex Screw M10 X 35
-
8507032316 Locking TabLocking Tab
-
9507032398 HoseHose
-
10507032362 Master Cylinder. Includes 10 to 18Master Cylinder. Includes 10 to 18
-
11507032268 Brake Short Lever Ass'yBrake Short Lever Ass'y
-
12415029800 Clamp Ass'YClamp Ass'Y
-
13415029900 CapCap
-
14415030000 Pin Ass'YPin Ass'Y
-
15414990600 WindowWindow
-
16507032366 MicroswitchMicroswitch
-
17515175232 Male TerminalMale Terminal
-
18216141260 Screw M4 X 12Screw M4 X 12
-
19293600063 Brake Fluid, Srf (dot 4)Brake Fluid, Srf (dot 4)
-
19293600062 Brake Fluid, Gtlma (dot 4) 12 X 354 mlBrake Fluid, Gtlma (dot 4) 12 X 354 ml
-
20414920500 Banjo BoltBanjo Bolt
-
21293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
22414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
23415079900 Tubing, 10 mmTubing, 10 mm
-
24414920600 WasherWasher
-
25507032403 Brake DiskBrake Disk
-
26293800070 Loctite 767, Antiseize Lubricant, 454 GLoctite 767, Antiseize Lubricant, 454 G
-
27507021300 KeyKey
