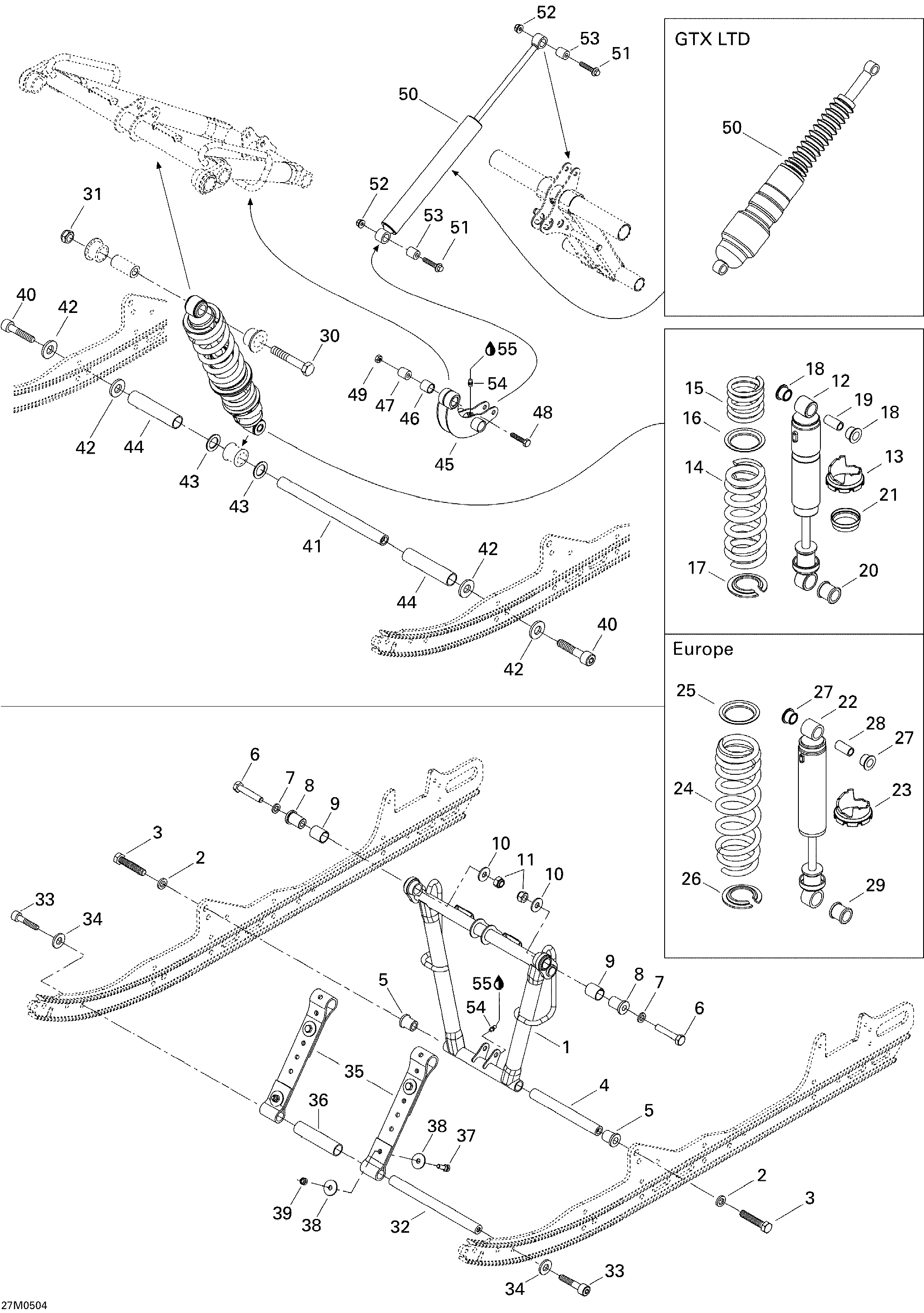

08- Front Arm 600HO для BRP Ski-Doo GTX 600 HO - 2005
-
№АртикулНазвание
-
1503191071 Front ArmFront Arm
-
2503189276 WasherWasher
-
3207226044 Hex Screw M12 X 60, Scotch GripHex Screw M12 X 60, Scotch Grip
-
4503189313 ShaftShaft
-
5503189323 CushionCushion
-
6207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
7732900049 WasherWasher
-
8503190373 ExtensionExtension
-
9503190474 Extended BushingExtended Bushing
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503190313 Center Shock. GTX SportCenter Shock. GTX Sport
-
13505070150 Cam 45°Cam 45°
-
14503190478 SpringSpring
-
15503190476 SpringSpring
-
16517184300 Spring GuideSpring Guide
-
17503189912 Spring StopperSpring Stopper
-
18503189117 CushionCushion
-
19503189282 BushingBushing
-
20503189271 CushionCushion
-
21503190297 Spring SpacerSpring Spacer
-
22503190976 Center Shock. EuropeCenter Shock. Europe
-
23505070150 Cam 45°. EuropeCam 45°. Europe
-
24503189812 Spring. EuropeSpring. Europe
-
25517184300 Spring Guide. EuropeSpring Guide. Europe
-
26503189912 Spring Stopper. EuropeSpring Stopper. Europe
-
27503189117 Cushion. EuropeCushion. Europe
-
28503189282 Bushing. EuropeBushing. Europe
-
29503189271 Cushion. EuropeCushion. Europe
-
30207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
31233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
32503189562 AxleAxle
-
33205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
34503189564 WasherWasher
-
35503190782 Stopper StrapStopper Strap
-
36503189265 SpacerSpacer
-
37207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
38224081301 Flat WasherFlat Washer
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
41503189272 Center Shock ShaftCenter Shock Shaft
-
42503189276 WasherWasher
-
43503189273 WasherWasher
-
44503189274 SpacerSpacer
-
45503189845 RockerRocker
-
46503189388 Rocker AxleRocker Axle
-
47503189626 CushionCushion
-
48207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
49233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
50503190671 Rear Shock. GTX Sport EuropeRear Shock. GTX Sport Europe
-
50503191023 Rear Shock. GTX SportRear Shock. GTX Sport
-
51207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
52233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
53414936000 CushionCushion
-
54408200700 Grease FittingGrease Fitting
-
55219700417 Grease Asalso, 180 KgGrease Asalso, 180 Kg
