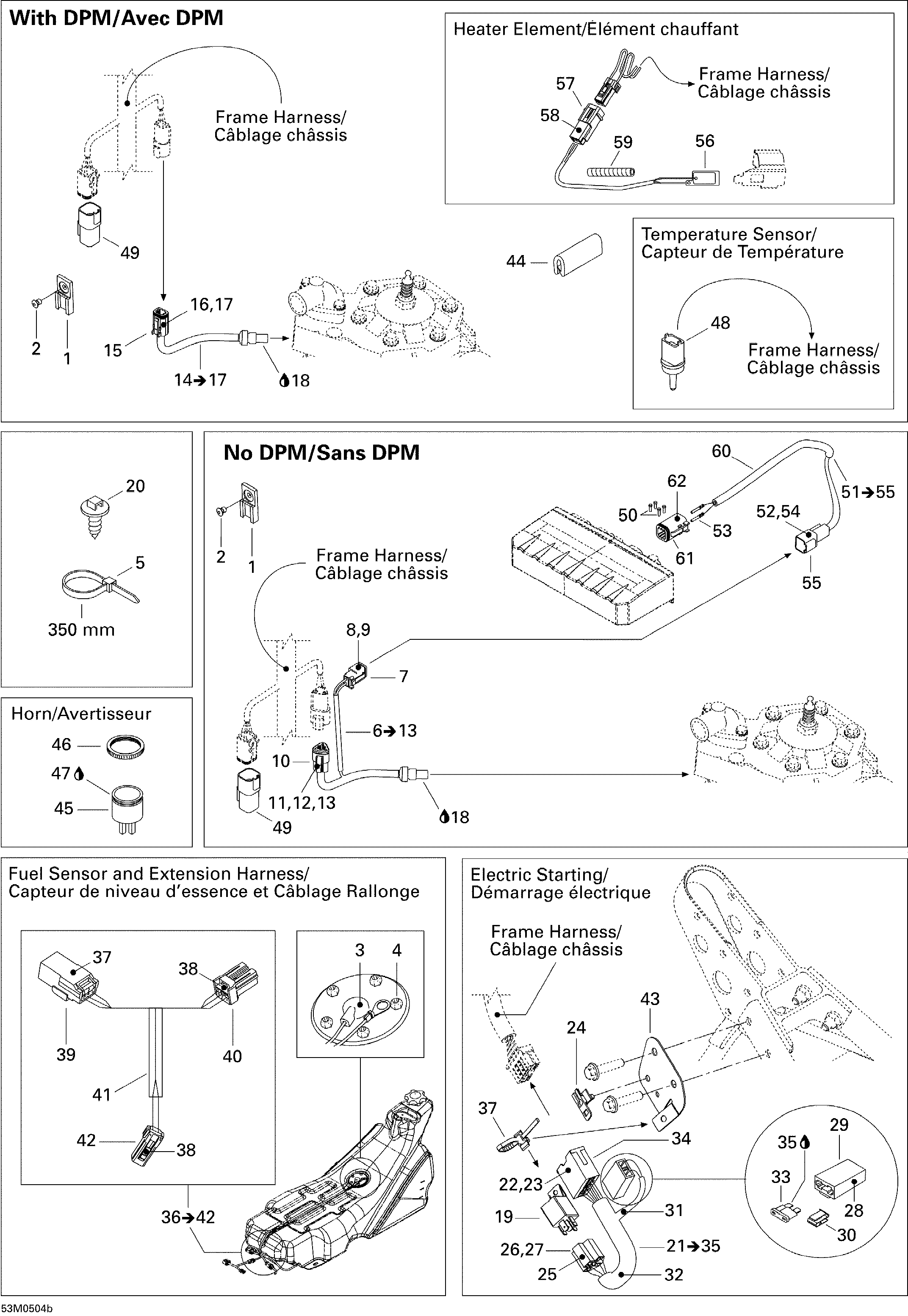

10- Electrical Accessories 2 (600HO) для BRP Ski-Doo GTX 600 HO - 2005
-
№АртикулНазвание
-
1515175917 ClipClip
-
2293150037 Rivet Avdel 3/16''Rivet Avdel 3/16''
-
5293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
6515176041 Temperature Sensor. Includes 6 to 13 / GTX SPORTTemperature Sensor. Includes 6 to 13 / GTX SPORT
-
7515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
8278000632 Female TerminalFemale Terminal
-
9515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
10515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
11278000632 Female TerminalFemale Terminal
-
12515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
13293000052 Sealing CapSealing Cap
-
18293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
19410113200 RelayRelay
-
20293730018 Mount DartMount Dart
-
21515175721 Configuration Harness Ass'Y. Includes 21 to 35Configuration Harness Ass'Y. Includes 21 to 35
-
22515175232 Male TerminalMale Terminal
-
23515175273 Male TerminalMale Terminal
-
24515175283 Housing SupportHousing Support
-
25409209900 Female Terminal Housing, 5 CircuitsFemale Terminal Housing, 5 Circuits
-
26561503100 Female TerminalFemale Terminal
-
27561503100 Female TerminalFemale Terminal
-
28409011600 Female TerminalFemale Terminal
-
29409004000 Fuse HolderFuse Holder
-
30409014200 ClipClip
-
31515175442 Tubing, 6 mmTubing, 6 mm
-
32409901800 Tubing, 13 mmTubing, 13 mm
-
33278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
34515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
35293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
36515176171 Extension Harness. Includes 36 to 42 / GTXExtension Harness. Includes 36 to 42 / GTX
-
37515175232 Male TerminalMale Terminal
-
38515175231 Female TerminalFemale Terminal
-
39515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
40515175495 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
41515175442 Tubing, 6 mmTubing, 6 mm
-
42515175658 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
43515176020 Harness SupportHarness Support
-
45515176035 HornHorn
-
46414805101 Plastic NutPlastic Nut
-
47296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
49515176234 Female Terminal Housing, 6 Circuits. No DPMFemale Terminal Housing, 6 Circuits. No DPM
-
50293000052 Sealing Cap. No DPMSealing Cap. No DPM
-
51515175822 Sensor Harness. Includes 51 to 55 / No DPMSensor Harness. Includes 51 to 55 / No DPM
-
52278000631 Male TerminalMale Terminal
-
53278000632 Female TerminalFemale Terminal
-
54409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
55515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
60409901300 Low Temperature Tubing. No DPMLow Temperature Tubing. No DPM
-
61515175673 Female Terminal Housing, 6 Circuits. No DPMFemale Terminal Housing, 6 Circuits. No DPM
-
62515175678 Female Lock, 6 Circuits. No DPMFemale Lock, 6 Circuits. No DPM
