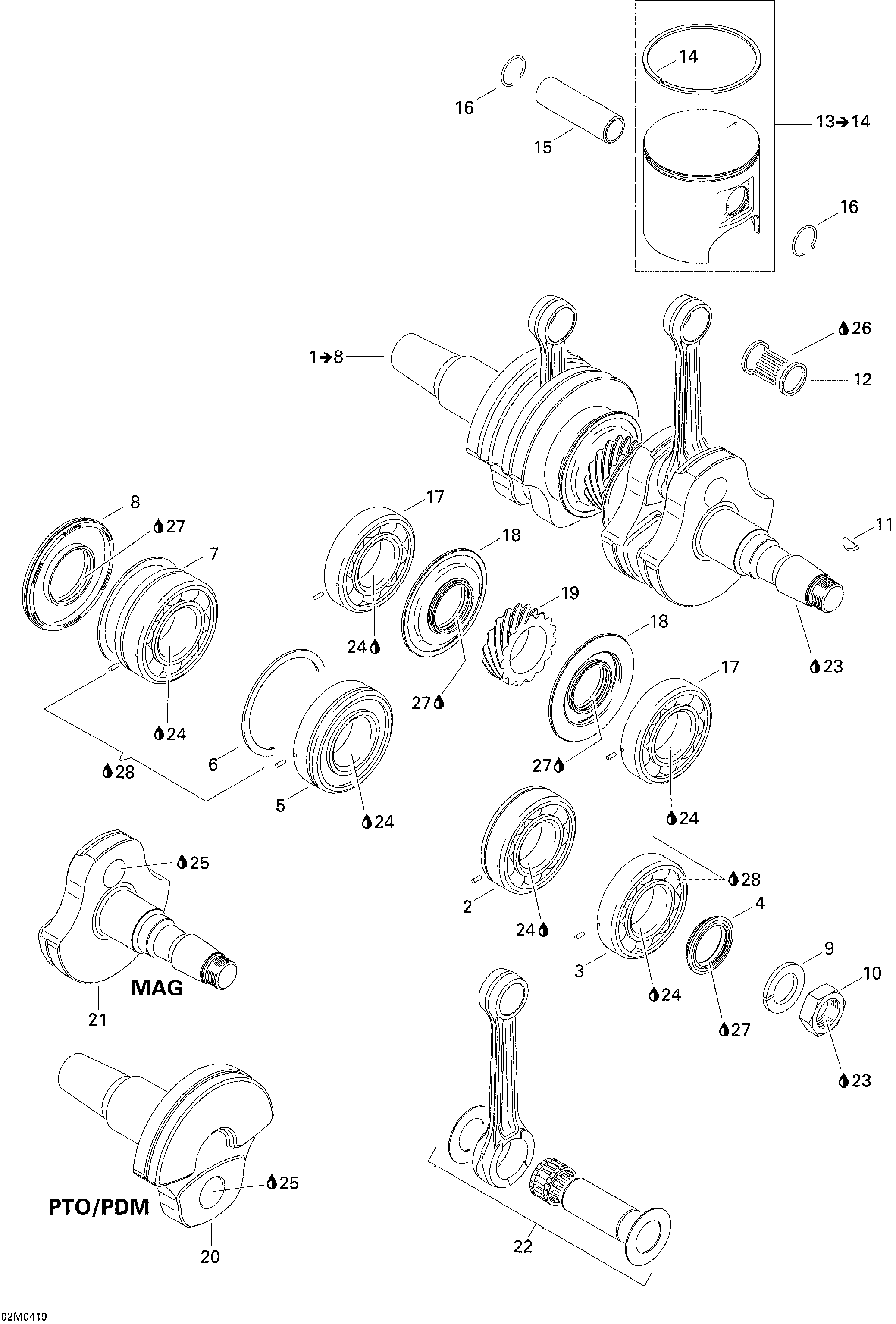

01- Crankshaft And Piston для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005
-
№АртикулНазвание
-
1420889098 Crankshaft Ass'Y. Includes items 1 to 8Crankshaft Ass'Y. Includes items 1 to 8
-
2420832638 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931792 Oil SealOil Seal
-
5420832608 Ball BearingBall Bearing
-
6420926190 WasherWasher
-
7420832700 Ball BearingBall Bearing
-
8420931285 Oil SealOil Seal
-
9420945759 Lock WasherLock Washer
-
10420842234 Hex Nut M22Hex Nut M22
-
11420246015 Woodruff KeyWoodruff Key
-
12420832427 Needle BearingNeedle Bearing
-
13420889185 Piston Ass'Y. Includes items 13 to 14Piston Ass'Y. Includes items 13 to 14
-
14420815290 Semi-Trapez RingSemi-Trapez Ring
-
15420916411 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420818709 Crankshaft (PTO Side)Crankshaft (PTO Side)
-
21420819230 Crankshaft (Mag Side)Crankshaft (Mag Side)
-
22420684653 Rod Repair Kit (Mag Side)Rod Repair Kit (Mag Side)
-
420684654 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize, 8 OzLoctite 767, Antiseize, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413802900 Injection Oil (12 X 1 Liter)Injection Oil (12 X 1 Liter)
-
27420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
-
28293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
