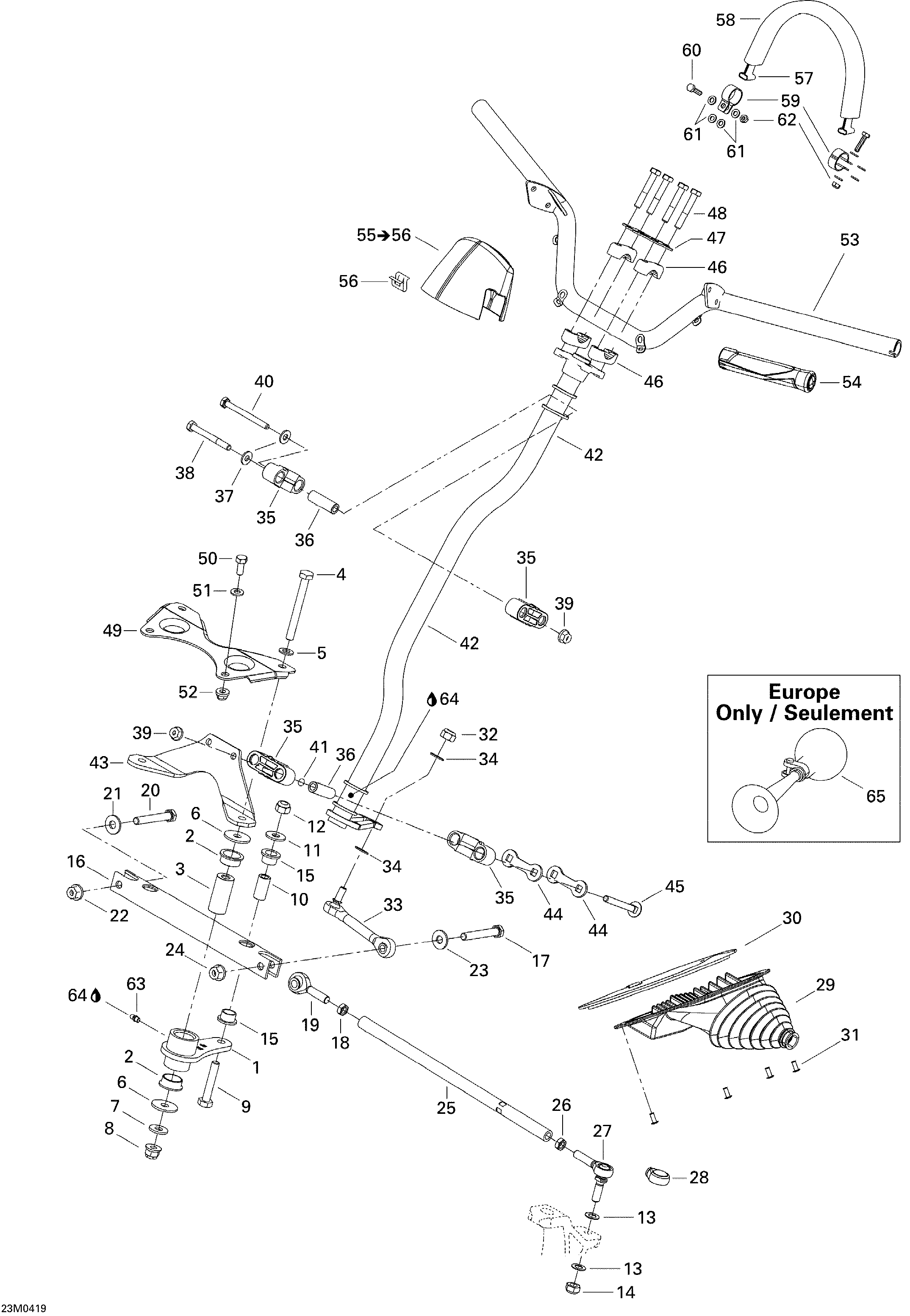

07- Steering System для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005
-
№АртикулНазвание
-
1506151651 RH Swivel ArmRH Swivel Arm
-
506151652 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex Screw M10 X 90Hex Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13503175800 WasherWasher
-
14232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506150200 Bushing SwivelBushing Swivel
-
16506151328 Swivel BarSwivel Bar
-
17207006544 Hex Screw M10 X 65Hex Screw M10 X 65
-
18250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
19506151810 LH Ball JointLH Ball Joint
-
20207004544 Hex Screw M10 X 45Hex Screw M10 X 45
-
21224002251 Flat WasherFlat Washer
-
22233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
23224002251 Flat WasherFlat Washer
-
24233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
25506151340 Tie-RodTie-Rod
-
26732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
27506151811 Ball JointBall Joint
-
28506151650 Protection CapProtection Cap
-
29506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
30506151356 RH Retainer RingRH Retainer Ring
-
506151357 LH Retainer RingLH Retainer Ring
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
33506151621 Ball Joint (Double)Ball Joint (Double)
-
34503175800 WasherWasher
-
35506150400 Housing HalfHousing Half
-
36506150500 Housing BushingHousing Bushing
-
37503189157 WasherWasher
-
38207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
39233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
40207088044 Hex Screw M8 X 80Hex Screw M8 X 80
-
41506151140 O-RingO-Ring
-
42506151334 Main TubeMain Tube
-
43506151330 Steering Shaft SupportSteering Shaft Support
-
44506150600 Stopper PlateStopper Plate
-
45207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
46506151622 Steering SupportSteering Support
-
47506151547 ReinforcementReinforcement
-
48250000082 Hex Screw With Nylon M8 X 50Hex Screw With Nylon M8 X 50
-
49506151536 Pivot SupportPivot Support
-
50207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
51234081410 Flat Washer M8Flat Washer M8
-
52233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
53506151667 HandlebarHandlebar
-
54506151716 Handle GripHandle Grip
-
55506151660 Cap. Includes items 55 to 56Cap. Includes items 55 to 56
-
56517302785 ClipClip
-
57415095500 Tie-DownTie-Down
-
58415090200 GripGrip
-
59506151792 Support Plate (Black)Support Plate (Black)
-
60207662084 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
61234061410 Flat Washer 6 mmFlat Washer 6 mm
-
62232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
63408200700 Grease FittingGrease Fitting
-
64219700417 Synthetic Grease, 400gSynthetic Grease, 400g
-
65415040700 Horn (Europe)Horn (Europe)
