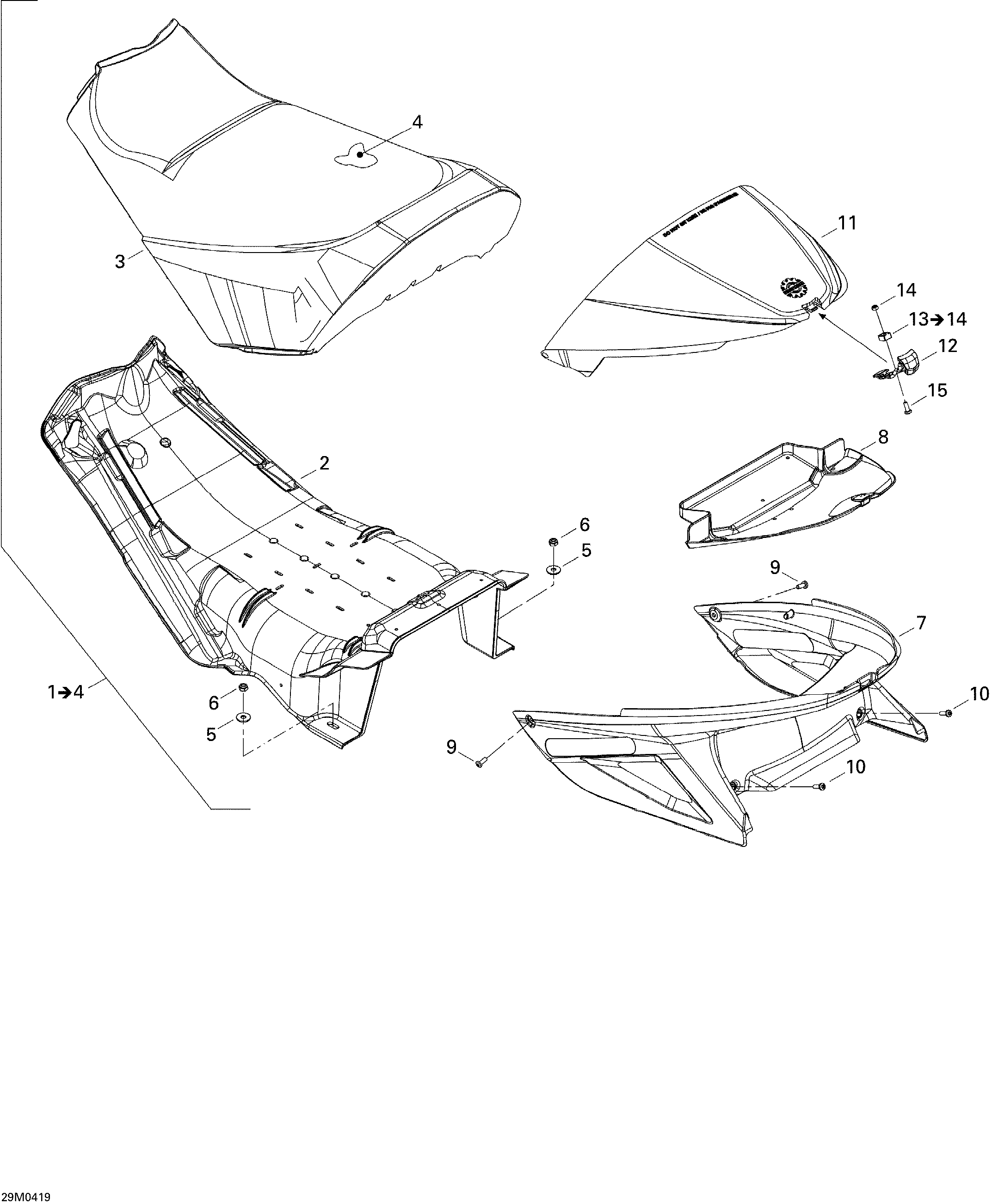

09- Seat для BRP Ski-Doo MX Z 600 HO SDI Renegade, Early Intro - 2005
-
№АртикулНазвание
-
2510004308 Seat BaseSeat Base
-
3510004274 Seat CoverSeat Cover
-
4510004275 Seat FoamSeat Foam
-
5234082410 Flat Washer M8Flat Washer M8
-
6232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
7510004422 Trunk (Viper Red (B-176))Trunk (Viper Red (B-176))
-
8510004231 Box LinerBox Liner
-
9250000129 Torx Pan Head Screw M6 X 16Torx Pan Head Screw M6 X 16
-
10250000128 Torx Pan Head Screw M6 X 20Torx Pan Head Screw M6 X 20
-
11510004311 CoverCover
-
12510003917 BracketBracket
-
13269500252 Nut Housing Ass'Y. Includes items 13 to 14Nut Housing Ass'Y. Includes items 13 to 14
-
14232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
15250000129 Torx Pan Head Screw M6 X 16Torx Pan Head Screw M6 X 16
