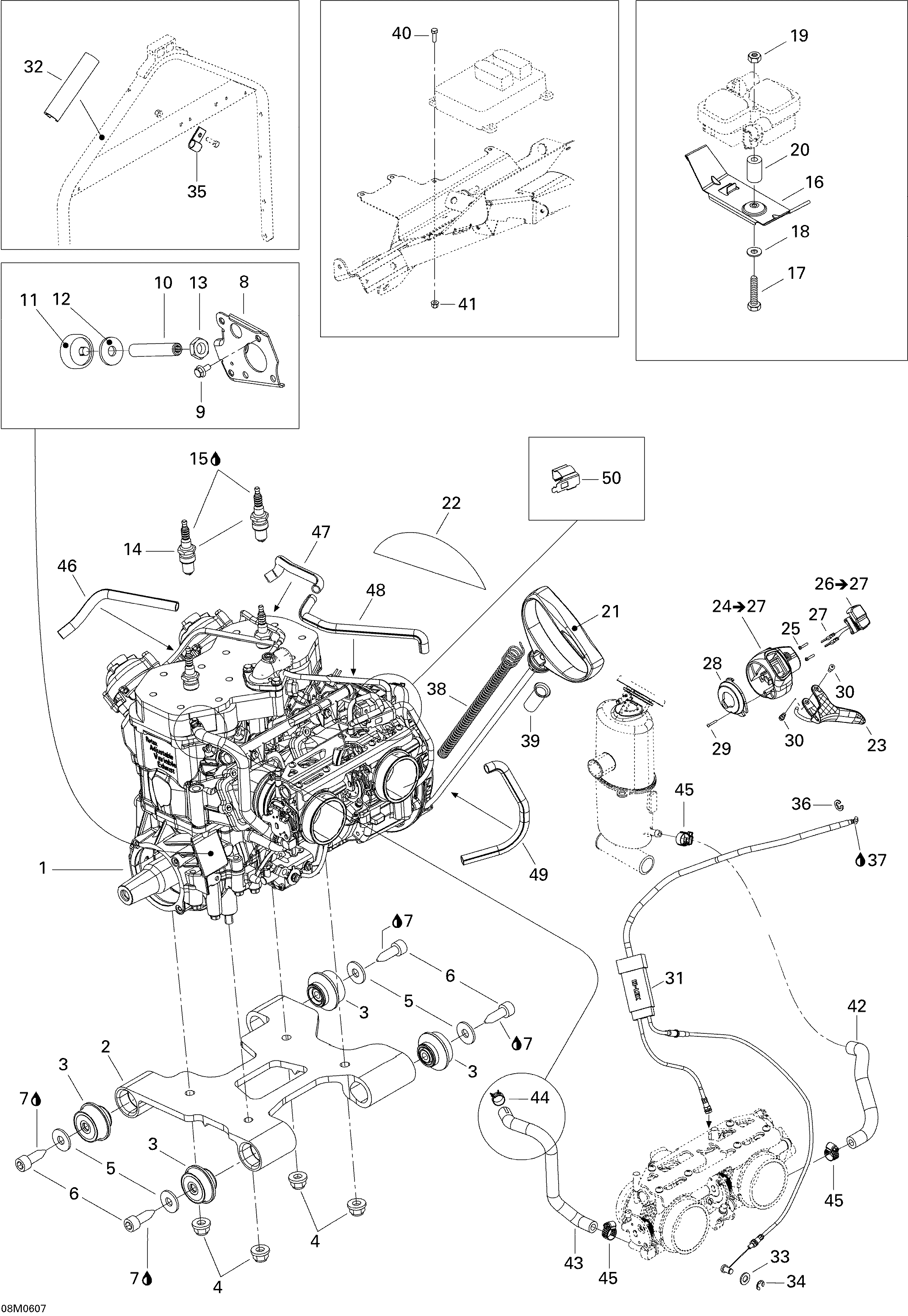

01- Engine And Engine Support для BRP Ski-Doo GSX 600 HO SDI - 2006
-
№АртикулНазвание
-
1400509768 Engine 593 Ho SDIEngine 593 Ho SDI
-
2512060050 Engine Support Ass'y. Includes 2 to 3Engine Support Ass'y. Includes 2 to 3
-
3512059691 Rubber MountRubber Mount
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5506151251 WasherWasher
-
6205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059840 PlatePlate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10250500007 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
14512060029 Spark Plug Br8ecsSpark Plug Br8ecs
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16512059865 Coil SupportCoil Support
-
17207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
18234061410 Flat Washer M6Flat Washer M6
-
19232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
20512059812 SpacerSpacer
-
21572084400 Starter GripStarter Grip
-
22512059893 Reflective SheetReflective Sheet
-
23512059891 Handle Ass'yHandle Ass'y
-
24512060001 Housing Throttle Ass'yHousing Throttle Ass'y
-
25250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
26415128901 Kill SwitchKill Switch
-
27515175232 Male TerminalMale Terminal
-
28512059698 CoverCover
-
29250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
30732601143 Flanged ScrewFlanged Screw
-
31512060087 Throttle CableThrottle Cable
-
32512059750 ProtectorProtector
-
33234081100 Flat Washer 8 mmFlat Washer 8 mm
-
34414753500 CirclipCirclip
-
35414176000 Clip, CableClip, Cable
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059535 Rope GuideRope Guide
-
39512059536 TubeTube
-
40207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
41233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
42512059563 Formed HoseFormed Hose
-
43512059990 Formed HoseFormed Hose
-
44513033029 Spring ClampSpring Clamp
-
45293650170 Tridon Hose ClampTridon Hose Clamp
-
46409901700 Tubing, 9 mmTubing, 9 mm
-
47409901700 Tubing, 9 mmTubing, 9 mm
-
48409901700 Tubing, 9 mmTubing, 9 mm
-
49409901700 Tubing, 9 mmTubing, 9 mm
-
50512059809 Heating Element BracketHeating Element Bracket
