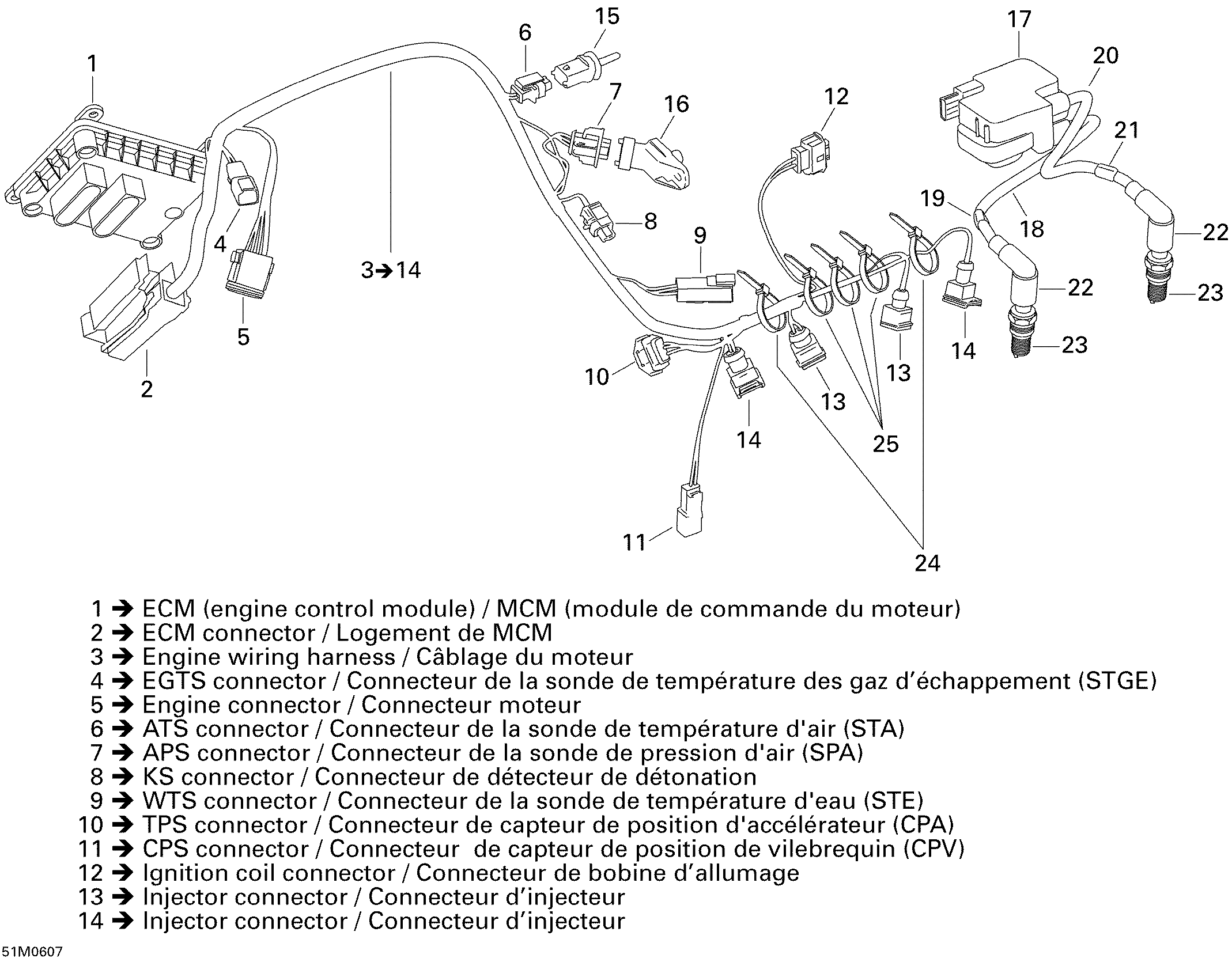

10- Engine Harness And Electronic Module для BRP Ski-Doo GSX 600 HO SDI - 2006
-
№АртикулНазвание
-
1420665192 Electronic Box, EcmElectronic Box, Ecm
-
2420664450 Connector Housing, EcmConnector Housing, Ecm
-
3420664317 Wiring Harness Ass'y. Includes 3 to 14Wiring Harness Ass'y. Includes 3 to 14
-
4278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
5278001743 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7278001829 ConnectorConnector
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278000635 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
10278001829 ConnectorConnector
-
11409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
14415128565 Male Housing, 2 Circuits, BoschMale Housing, 2 Circuits, Bosch
-
15420966970 Temperature SensorTemperature Sensor
-
16420274055 Pressure SensorPressure Sensor
-
17420266070 Double Ignition CoilDouble Ignition Coil
-
18420664300 Ignition Cable (365 mm) (Mag)Ignition Cable (365 mm) (Mag)
-
19420660632 Sleeve, Mag SideSleeve, Mag Side
-
20420664307 Ignition Cable (430 mm) (PTO)Ignition Cable (430 mm) (PTO)
-
21420660630 Sleeve, PTO SideSleeve, PTO Side
-
22278000237 Spark Plug CapSpark Plug Cap
-
23415128524 Spark Plug BR8ECSSpark Plug BR8ECS
-
24420866714 Tie RapTie Rap
-
25420866716 Tie-RapTie-Rap
