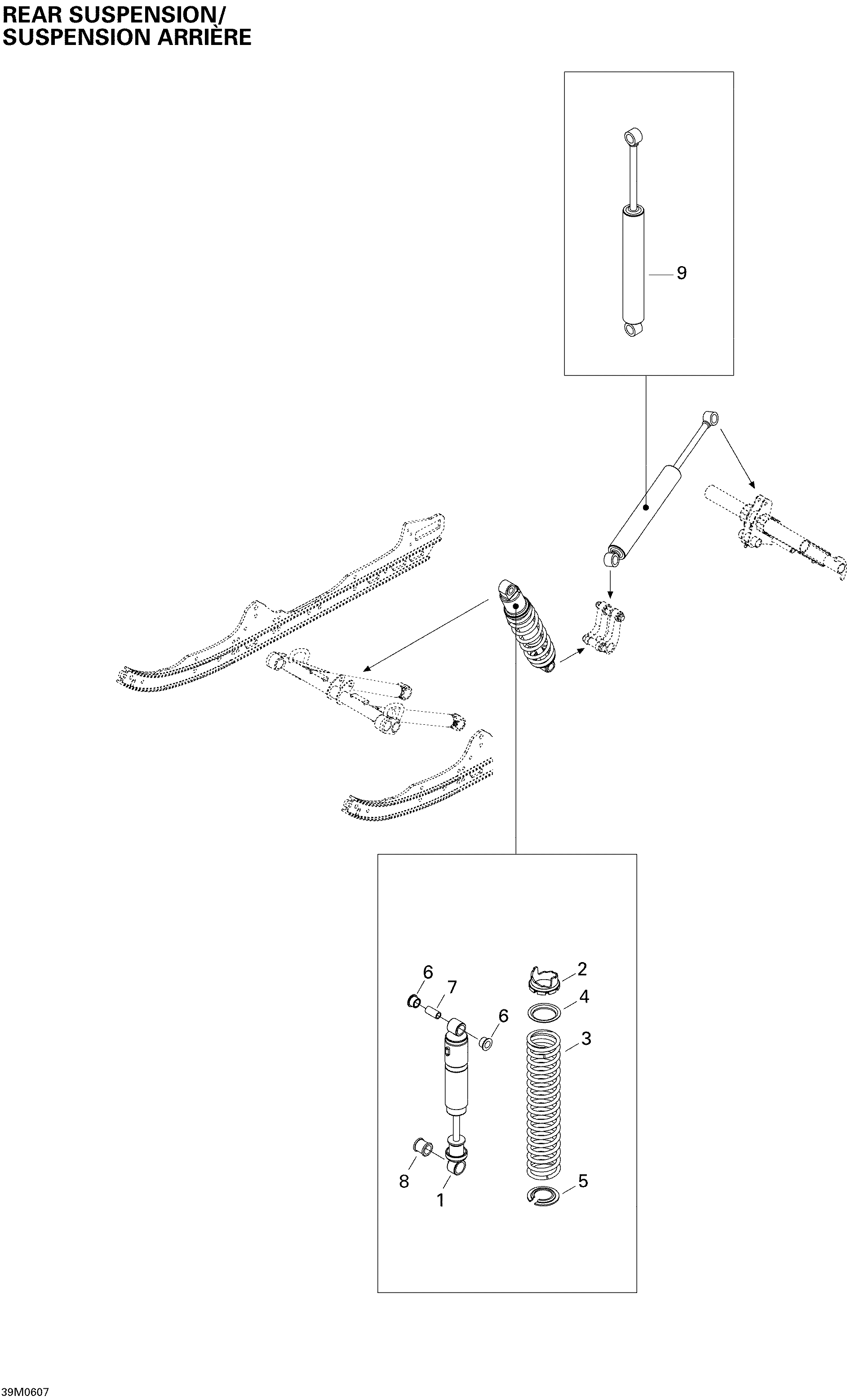

08- Rear Suspension Shocks для BRP Ski-Doo GSX 600 HO SDI - 2006
-
№АртикулНазвание
-
1503190663 Center ShockCenter Shock
-
2505070150 Cam 45°Cam 45°
-
3503191135 SpringSpring
-
4517184300 Spring GuideSpring Guide
-
5503189912 Spring StopperSpring Stopper
-
6503189117 CushionCushion
-
7503189282 BushingBushing
-
8503189271 CushionCushion
-
9503190672 Rear ShockRear Shock
