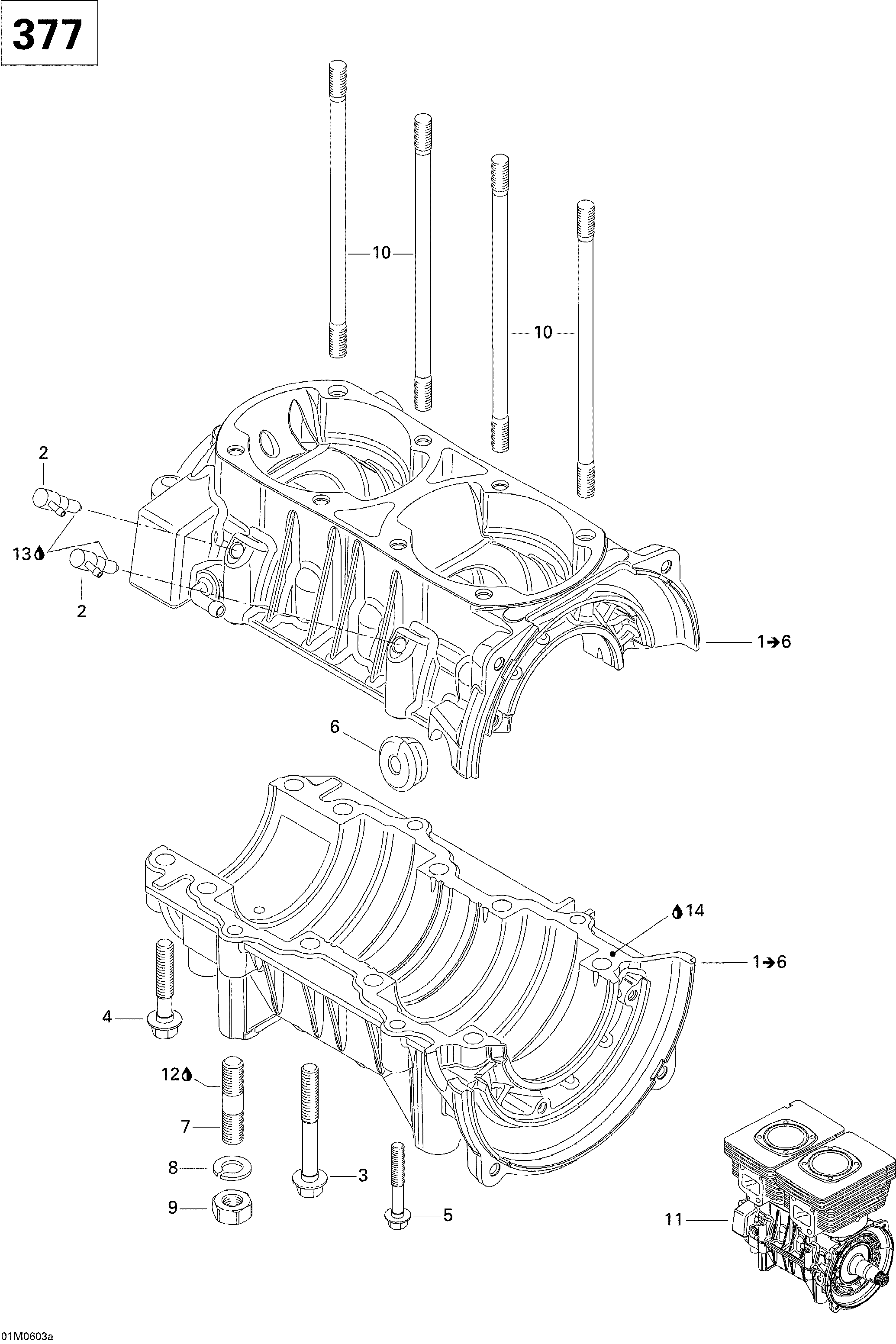

01- Crankcase (380F) для BRP Ski-Doo GTX 380F - 2006
-
№АртикулНазвание
-
1420888488 Crankcase Ass'y. Includes 1 to 6Crankcase Ass'y. Includes 1 to 6
-
2420956510 Check ValveCheck Valve
-
3420640951 Hex Screw M8 X 68.5Hex Screw M8 X 68.5
-
4420640431 Hex Collar Screw M8 X 45Hex Collar Screw M8 X 45
-
5420941451 Hex Collar Screw M6 X 40Hex Collar Screw M6 X 40
-
6420860962 Cable GrommetCable Grommet
-
7420940190 Stud M10 X 29/20Stud M10 X 29/20
-
10420841149 Stud M8 X 167Stud M8 X 167
-
11420037706 Shock Block 377Shock Block 377
-
12293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
13413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
14293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
